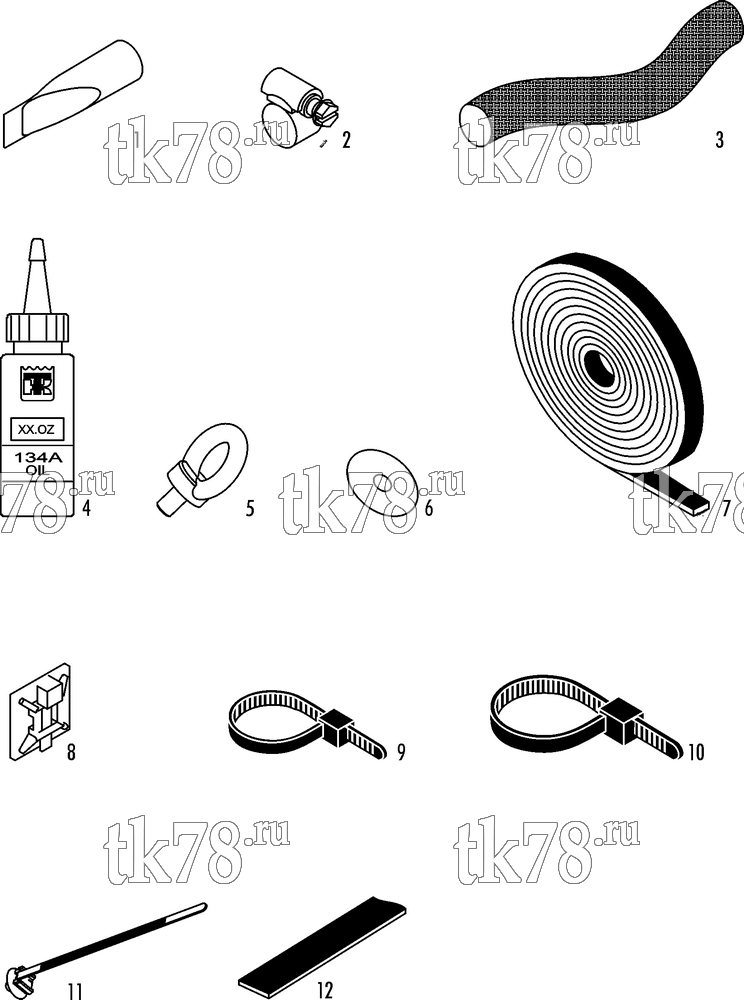

Установкa Thermo King System SB200 Berkhof w/ATHENIA S500 N 1004 схема INSTALLATION COMPONENTS – 206G3
Обновление от: 10/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - hose check | 4 | |
| 2 | 55-6726 | CLAMP | 6 | |
| 3 | 91-9006 | HOSE | A/R | |
| 4 | 203-505 | OIL - compressor (2 oz, bottle) | 1 | |
| 5 | 51-916 | BOLT | 4 | |
| 6 | 51-1137 | WASHER | 12 | |
| 7 | 203-391 | TAPE - sealer | A/R | |
| 8 | 92-5033 | MOUNT - cable tie | A/R | |
| 9 | 52-2332 | BANDWRAP | A/R | |
| 10 | 55-2330 | BANDWRAP | A/R | |
| 11 | 51-1631 | STRAP - cable | A/R | |
| 12 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R |
