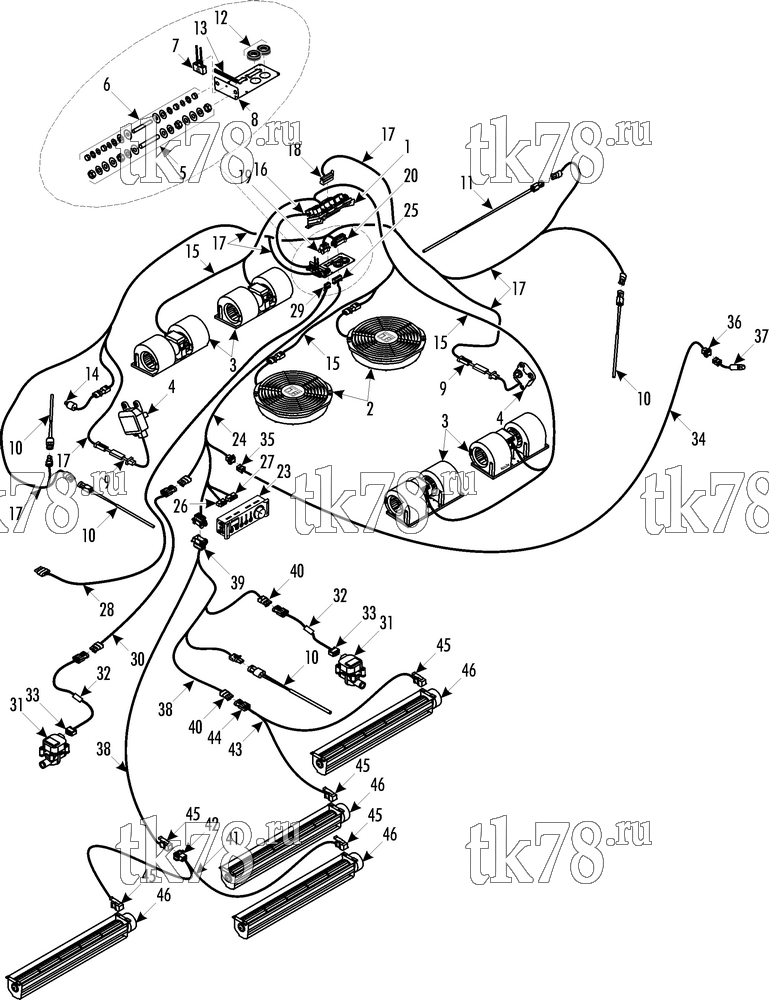

Установкa Thermo King System SB200 Berkhof w/ATHENIA S500 N 1004 схема ELECTRICAL COMPONENTS – 206G2
Обновление от: 3/14/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER (see 203H5) | 1 | |
| 2 | 78-1414 | FAN (see 203F5) | 2 | |
| 3 | 78-1297 | BLOWER (see 203G4) | 4 | |
| 4 | 41-2755 | SERVOMOTOR (see 218E5 or 203F9) | 2 | |
| 5 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 6 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 7 | 41-6098 | SUPPRESSOR - voltage | 1 | |
| 51-888 | STUD - self clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 8 | 92-4041 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 9 | 41-7190 | CONTROLLER - servomotor (11/05 & after) | 2 | |
| 41-3543 | MODULE - control dampers (before 11/05) | 1 | ||
| 10 | 41-4157 | SENSOR - temperature | 4 | |
| 11 | 41-4335 | SENSOR - temperature | 1 | |
| 12 | 33-452 | GROMMET (0.875 id) | 2 | |
| 13 | 92-3279 | STRIP - flange | A/R | |
| 14 | 41-5220 | SWITCH - hpco | 1 | |
| 41-3831 | SWITCH - only | 1 | ||
| 15 | 41-7845 | HARNESS - control panel (for connectors see 115D14) | 1 | |
| 16 | 41-7761 | HARNESS - supply | 1 | |
| 17 | 41-7846 | HARNESS - control (for connectors see 115D14, 11/05 & after) | 1 | |
| 41-6833 | HARNESS - control (for connectors see 115D14, before 11/05) | 1 | ||
| 18 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 19 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 20 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 21 | 41-2771 | CONNECTOR - female (15-pin, before 11/05) | 1 | |
| 22 | 41-3288 | CONNECTOR (before 11/05) | 2 | |
| 23 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 24 | 41-6992 | HARNESS - control panel to ClimaAIRE (1 m, for connectors see 115D14) | 1 | |
| 41-5657 | RELAY | 2 | ||
| 44-5537 | SOCKET - relay | 2 | ||
| 25 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 26 | 41-661 | CONNECTOR (14 socket) | 1 | |
| 27 | 41-650 | CONNECTOR (18 socket) | 1 | |
| 28 | 41-6993 | HARNESS - control panel to compressor (11 m, for connectors see 115D14) | 1 | |
| 29 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 30 | 41-6994 | HARNESS - extension (8 m, for connectors see 115D14) | 1 | |
| 31 | 41-6592 | VALVE - water | 2 | |
| 32 | 41-6767 | CONTROLLER - servomotor (for connectors see 115D14) | 2 | |
| 33 | 41-3288 | CONNECTOR (6-pin, female) | 2 | |
| 34 | 41-5757 | HARNESS - driver | 1 | |
| 35 | 41-2767 | CONNECTOR (6-pin, female) | 1 | |
| 36 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 37 | 41-6333 | POTENCIOMETER | 1 | |
| 38 | 41-6995 | HARNESS - for heat (for connectors see 115D14) | 1 | |
| 39 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 40 | 44-6959 | CONNECTOR - tower (3-pin) | 2 | |
| 41 | 41-5761 | HARNESS - convector (back) | 1 | |
| 42 | 41-4949 | CONNECTOR (4-pin, male) | 1 | |
| 43 | 41-5760 | HARNESS - convector (front) | 1 | |
| 44 | 44-9569 | CONNECTOR - shroud (3-pin) | 1 | |
| 45 | 41-2769 | CONNECTOR (4-pin, female) | 5 | |
| 46 | 78-1399 | BLOWER - convector | 4 |
