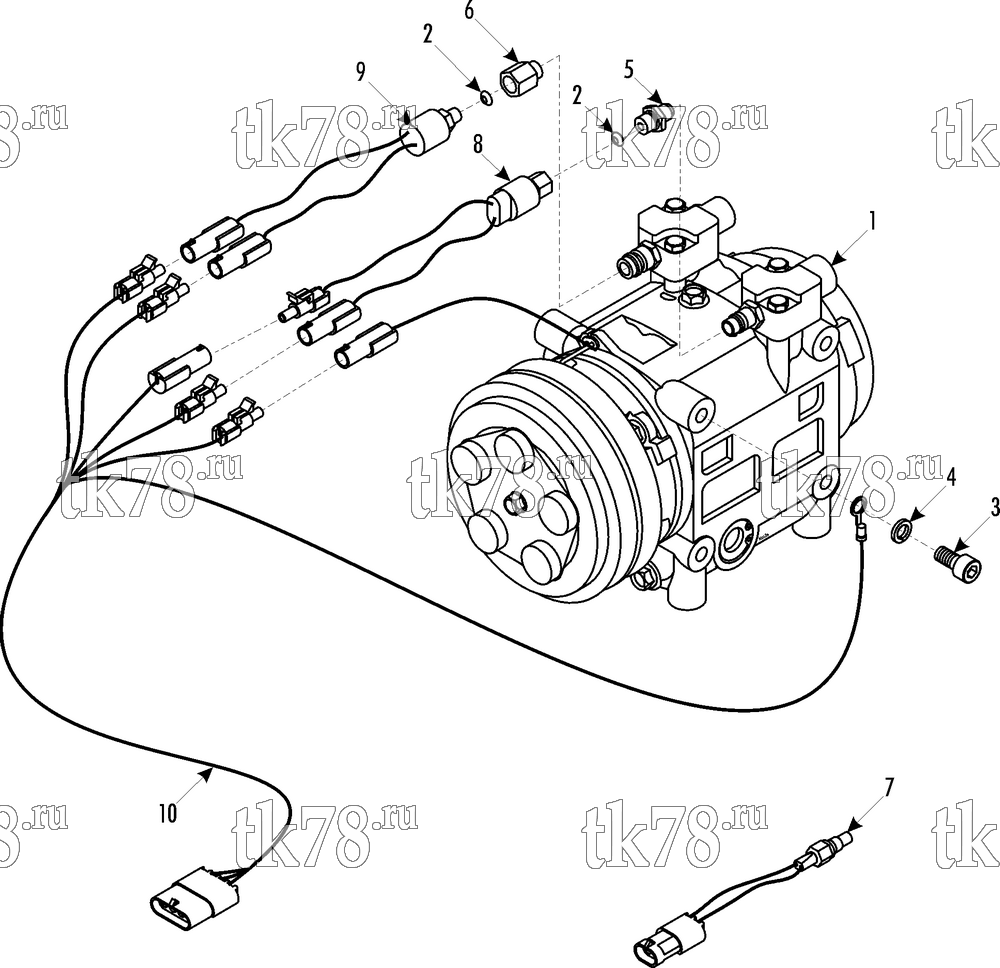

Установкa Thermo King System SB200 Berkhof w/ATHENIA S500 N 1004 схема COMPRESSOR GROUP - TM31 (KIT 718830, 700223 & 700224) – 203H1
Обновление от: 9/04/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-633 | COMPRESSOR - TM31 (2BG, 24V, Kit 718830) | 1 | |
| 107-337 | CLUTCH (2B, 24V, for connectors see 115D14) | 1 | ||
| 102-809 | COMPRESSOR - TM31 (2AG, 24V, Kit 700223) | 1 | ||
| 107-332 | CLUTCH (2A, 24V, for connectors see 115D14) | 1 | ||
| 102-736 | COMPRESSOR - TM31 (8KG, 24V, Kit 700224) | 1 | ||
| 107-338 | CLUTCH (8V, 24V, for connectors see 115D14) | 1 | ||
| 22-1261 | FITTING - discharge | 1 | ||
| 22-1262 | FITTING - suction | 1 | ||
| 55-5406 | SCREW - fittings | 4 | ||
| 33-4305 | O-RING | 2 | ||
| 203-515 | OIL - compressor | A/R | ||
| 2 | 33-768 | GASKET | 2 | |
| 3 | 55-6216 | SCREW | 1 | |
| 4 | 55-5411 | LOCKWASHER | 1 | |
| 5 | 55-9120 | FITTING - adapter | 1 | |
| 6 | 55-9121 | FITTING - adapter | 1 | |
| 7 | 41-3345 | SENSOR - high temperature (kit 718830 only, for connectors see 115D14) | 1 | |
| 8 | 41-6064 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 304-1922 | SWITCH - only | 1 | ||
| 9 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 10 | 41-6319 | HARNESS - compressor (for connectors see 115D14) | 1 |
