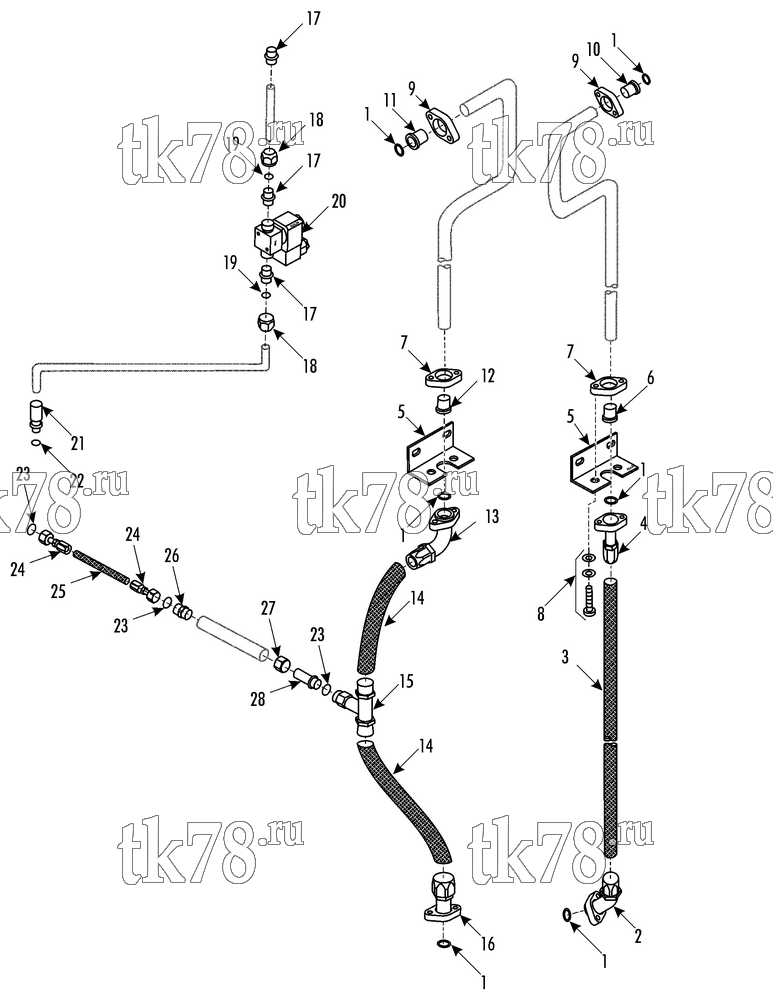

Установкa Thermo King System Berkhof w/ATHENIA S700N SB-200 (900433) схема FITTINGS & HOSE KIT – 218F6
Обновление от: 12/11/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3191 | GASKET - flat | 6 | |
| 2 | 61-3948 | FITTING (w/ flange, #16, 90 deg) | 1 | |
| 33-768 | GASKET | 1 | ||
| 11-2886 | VALVE - pressure | 1 | ||
| 55-7213 | BODY - valve | 1 | ||
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 51-361 | FITTING - high side | 1 | ||
| 3 | 61-2152 | HOSE (#16) | A/R | |
| 4 | 51-582 | FITTING (w/ flange, #16, straight) | 1 | |
| 5 | 92-2939 | BRACKET - flange | 2 | |
| 6 | 51-578 | ADAPTER (7/8 inch) | 1 | |
| 7 | 55-9186 | FLANGE - threaded | 2 | |
| 8 | 55-9845 | SCREW - flange (M10) | 4 | |
| 55-8537 | LOCKWASHER | 4 | ||
| 55-8536 | FLATWASHER | 4 | ||
| 9 | 55-9371 | FLANGE | 2 | |
| 10 | 55-9185 | ADAPTER (7/8 inch) | 1 | |
| 11 | 55-9184 | ADAPTER (1-1/8 inch) | 1 | |
| 12 | 51-374 | ADAPTER (1-1/8 inch) | 1 | |
| 13 | 51-580 | FITTING (w/ flange, #20, 90 deg) | 1 | |
| 14 | 61-2183 | HOSE (#20) | A/R | |
| 15 | 61-3314 | T-FITTING (#20) | 1 | |
| 16 | 61-3594 | FITTING (w/ flange, #20, straight) | 1 | |
| 33-768 | GASKET | 1 | ||
| 11-2886 | VALVE - pressure | 1 | ||
| 55-7213 | BODY - valve | 1 | ||
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 51-360 | FITTING - low side | 1 | ||
| 17 | 55-9544 | ADAPTER | 3 | |
| 18 | 92-121 | NUT | 2 | |
| 19 | 33-1461 | O-RING | 2 | |
| 20 | 41-6348 | VALVE - solenoid | 1 | |
| 21 | 61-2497 | FITTING | 1 | |
| 22 | 33-3717 | O-RING | 1 | |
| 23 | 33-2848 | O-RING | 3 | |
| 24 | 55-9784 | FITTING (7/8 - 14) | 2 | |
| 25 | 61-2154 | HOSE (#12) | A/R | |
| 26 | 61-3473 | ADAPTER | 1 | |
| 27 | 51-857 | NUT | 1 | |
| 28 | 61-3947 | ADAPTER (5/8 inch) | 1 |
