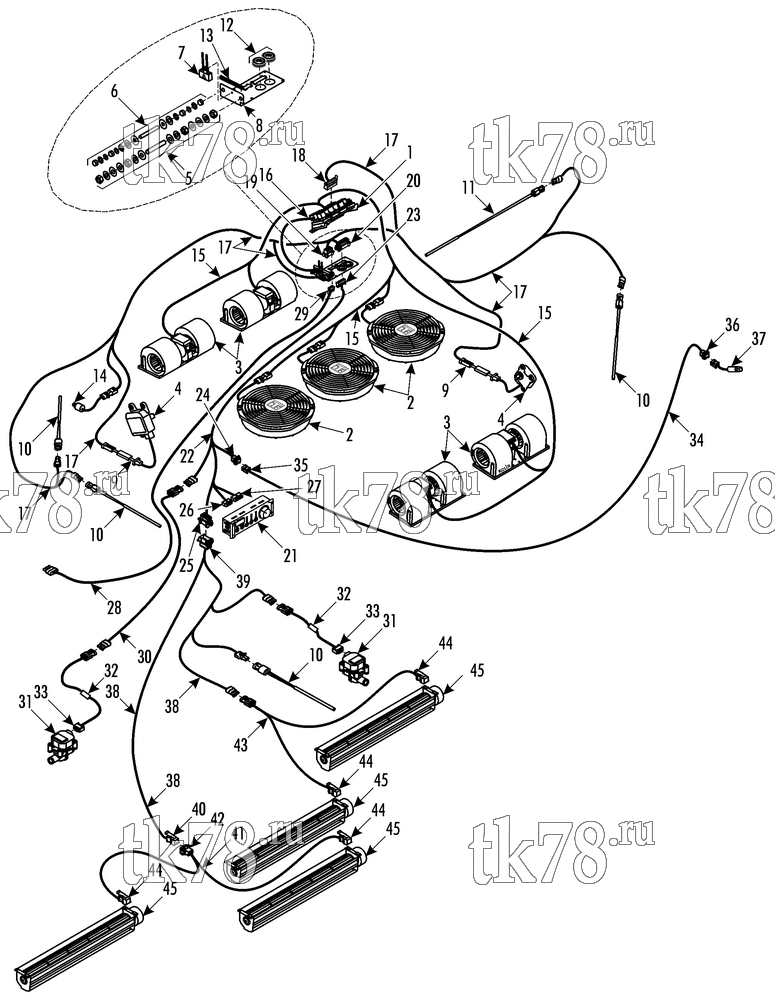

Установкa Thermo King System Berkhof w/ATHENIA S700N SB-200 (900433) схема ELECTRICAL COMPONENTS – 218F5
Обновление от: 12/11/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER (see 206A5) | 1 | |
| 2 | 78-1414 | FAN (see 203H9) | 3 | |
| 3 | 78-1297 | BLOWER (see 203G4) | 4 | |
| 4 | 41-3255 | SERVOMOTOR (see 203F9 or 218E5) | 2 | |
| 5 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 6 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 7 | 41-6098 | SUPPRESSOR - voltage | 1 | |
| 51-888 | STUD - self-clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 8 | 92-4041 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 9 | 41-7190 | CONTROLLER - servomotor | 2 | |
| 10 | 41-4157 | SENSOR - temperature | 4 | |
| 11 | 41-4335 | SENSOR - temperature | 1 | |
| 12 | 33-452 | GROMMET (0.875 id) | 2 | |
| 13 | 92-3279 | STRIP - flange | A/R | |
| 14 | 41-5220 | SWITCH - hpco (see 203G7) | 1 | |
| 41-3831 | SWITCH - only | 1 | ||
| 15 | 41-6842 | HARNESS - control panel (for connectors see 115D14) | 1 | |
| 16 | 41-6101 | HARNESS - supply | 1 | |
| 17 | 41-7241 | HARNESS - control (for connectors see 115D14) | 1 | |
| 18 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 19 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 20 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 21 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 22 | 41-7711 | HARNESS - control panel to ClimaAIRE (2.5 m, for connectors see 115D14) | 1 | |
| 41-5657 | RELAY | 2 | ||
| 44-5537 | SOCKET - relay | 2 | ||
| 23 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 24 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 25 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 26 | 41-661 | CONNECTOR (14 socket) | 1 | |
| 27 | 41-650 | CONNECTOR (18 socket) | 1 | |
| 28 | 41-7712 | HARNESS - control panel to compressor (13 m, for connectors see 115D14) | 1 | |
| 29 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 30 | 41-6994 | HARNESS - extension (8 m, for connectors see 115D14) | 1 | |
| 31 | 41-6592 | VALVE - water (#22) | 1 | |
| 41-7665 | VALVE - water (#28) | 1 | ||
| 32 | 41-6767 | CONTROLLER - servomotor (for connectors see 115D14) | 2 | |
| 33 | 41-3288 | CONNECTOR (6-pin, female) | 2 | |
| 34 | 41-7713 | HARNESS - driver (4.2 m) | 1 | |
| 35 | 41-2767 | CONNECTOR (6-pin, female) | 1 | |
| 36 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 37 | 41-6333 | POTENTIOMETER (for connectors see 115D14) | 1 | |
| 38 | 41-7714 | HARNESS - heat (for connecters see 115D14) | 1 | |
| 39 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 40 | 41-2769 | CONNECTOR (4-pin, female) | 1 | |
| 41 | 41-7669 | HARNESS - convector (back, for connectors see 115D14) | 1 | |
| 42 | 41-4949 | CONNECTOR (4-pin, male) | 1 | |
| 43 | 41-5760 | HARNESS - convector (front, for connectors see 115D14) | 1 | |
| 44 | 41-2769 | CONNECTOR (4-pin, female) | 4 | |
| 45 | 78-1399 | BLOWER - convector | 4 |
