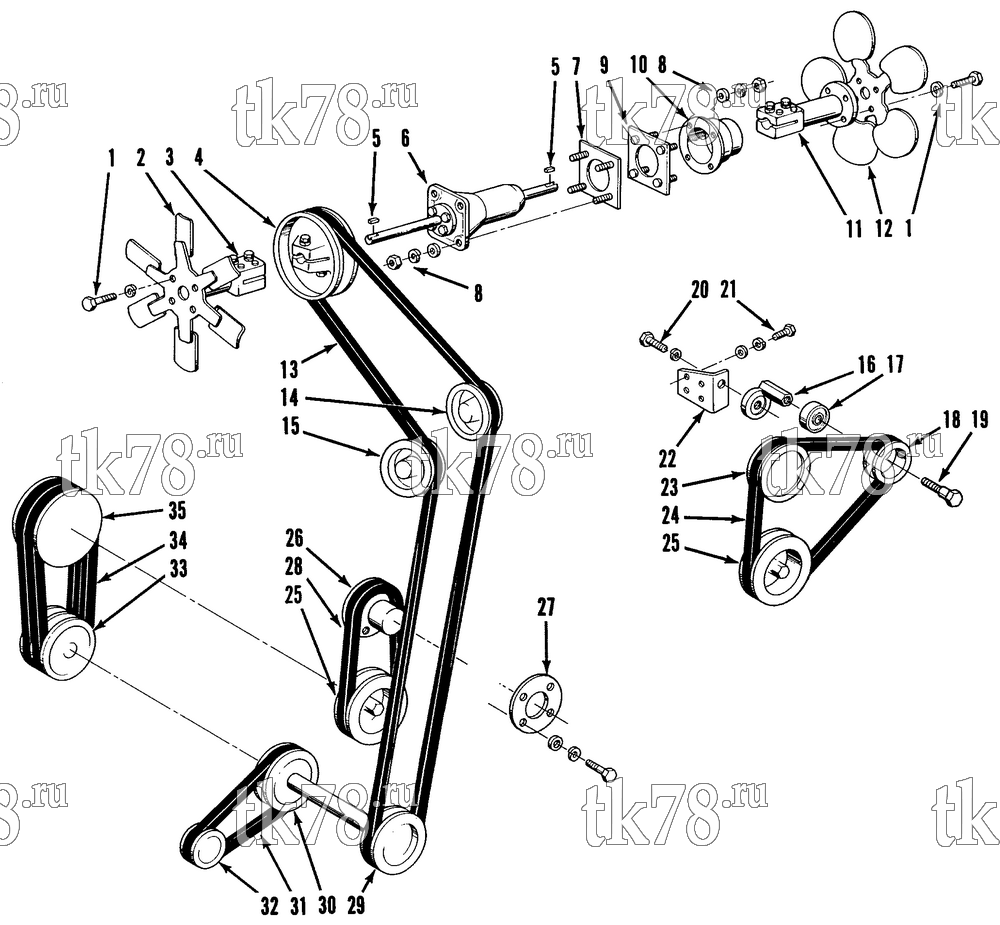

Установкa Thermo King Super NWD 5200 схема BELTS, PULLEYS & FAN – 48G9
Обновление от: 3/6/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-141 | SCREW - fan | 4 | |
| 55-790 | LOCKWASHER | 4 | ||
| 2 | 78-426 | FAN - condenser | 1 | |
| 3 | 77-1046 | HUB - fan | 1 | |
| 55-153 | SCREW - hub | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 4 | 77-726 | PULLEY | 1 | |
| 55-201 | SCREW - pulley | 2 | ||
| 55-421 | LOCKWASHER | 2 | ||
| 5 | 55-457 | KEY | 3 | |
| 6 | 78-413 | FANSHAFT - assembly (see 20B7) | 1 | |
| 7 | 99-3261 | BOLTPLATE | 1 | |
| 8 | 55-2640 | NUT | 4 | |
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 9 | 99-4793 | BOLTPLATE | 1 | |
| 10 | 99-3371 | SUPPORT - fanshaft | 1 | |
| 11 | 77-1046 | HUB - evaporator fan | 1 | |
| 55-2962 | SCREW - hub | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 12 | 78-418 | FAN - evaporator | 1 | |
| 13 | 78-287 | BELT - fan drive | 1 | |
| 10-78-287 | Ремень вентилятора, NWD, SNWD, 50 Series | 4 290 ₽ |
|
|
| 14 | 77-1137 | PULLEY - idler (V-groove, ESP) | 1 | |
| 77-720 | PULLEY - idler | 1 | ||
| 15 | 77-1138 | PULLEY - idler (flat groove, ESP) | 1 | |
| 77-721 | PULLEY - idler | 1 | ||
| 16 | 99-2896 | ARM - idler | 1 | |
| 77-1238 | PULLEY & BEARING | 1 | ||
| 17 | 77-1304 | BEARING | 1 | |
| 77-1304 OEM | Подшипник ролика, SL | 880 ₽ |
|
|
| 55-3157 | RING - retaining | 1 | ||
| 18 | 77-1009 | PULLEY | 1 | |
| 19 | 77-691 | BOLT - shoulder | 1 | |
| 20 | 55-4250 | SCREW - idler | 1 | |
| 55-2159 | LOCKWASHER | 1 | ||
| 21 | 55-529 | SCREW - bracket | 4 | |
| 55-402 | LOCKWASHER | 4 | ||
| 55-375 | FLATWASHER | 4 | ||
| 22 | 99-2852 | BRACKET | 1 | |
| 23 | 77-709 | PULLEY - water pump | 1 | |
| 55-141 | SCREW - pulley | 3 | ||
| 55-371 | FLATWASHER | 3 | ||
| 55-421 | LOCKWASHER | 3 | ||
| 24 | 78-339 | BELT - water pump (units w/ idler pulley) | 1 | |
| 10-78-339 | Ремень генератора, SB-II/III 50 | 3 540 ₽ |
|
|
| PP-78-339 | Ремень генератора, SB-II/III 50 | 1 530 ₽ |
|
|
| 25 | 77-731 | PULLEY - crankshaft | 1 | |
| 10-256 | KIT - bolt (pulley boss) | 1 | ||
| 26 | 77-1188 | PULLEY - water pump (stationary) | 1 | |
| 27 | 77-1187 | PULLEY - water pump (sliding) | 1 | |
| 77-1285 | SPACER - pulley | A/R | ||
| 77-1105 | RETAINER - spring | 1 | ||
| 55-544 | SCREW | 3 | ||
| 55-366 | LOCKWASHER | 3 | ||
| 28 | 78-267 | BELT - water pump | 1 | |
| 29 | 77-855 | PULLEY - fan drive | 1 | |
| 30 | 77-854 | PULLEY - alternator drive | 1 | |
| 31 | 78-362 | BELT - alternator | 1 | |
| 32 | 77-762 | PULLEY - alternator | 1 | |
| 33 | 77-719 | PULLEY - clutch drive | 1 | |
| 55-2962 | SCREW - pulley | 8 | ||
| 34 | 78-368 | BELT - clutch drive (double) | 1 | |
| 10-78-368 | Ремени набор из 2 шт, NWD, SNWD, 50 Series, Sentry | 3 560 ₽ |
|
|
| 35 | 107-341 | CLUTCH (see 125E4) | 1 | |
| US-107-341 | Сцепление, SB-II/III / SMX/SMX-II | 113 700 ₽ |
|
