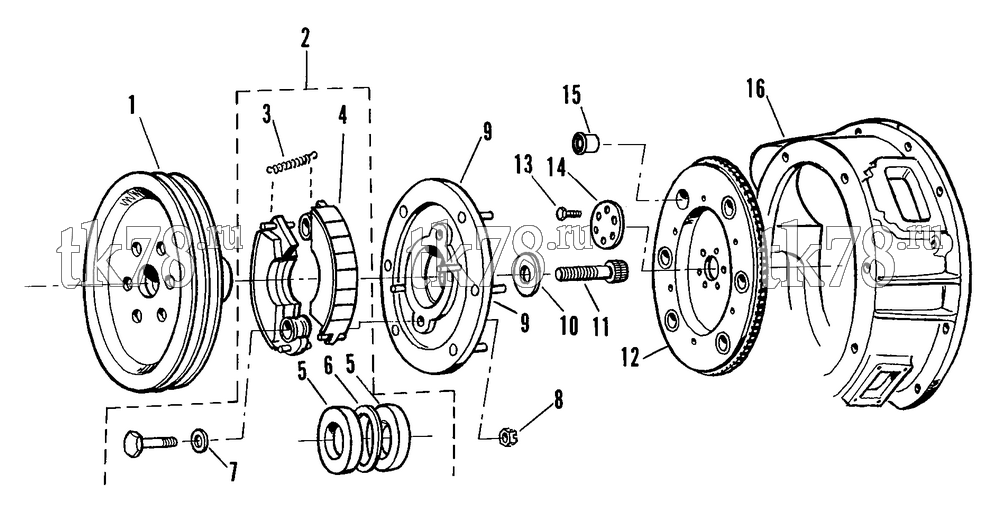

Установкa Thermo King Super NWD 5200 схема CLUTCH ASSEMBLY (SNWD 50 5200) – 45E8
Обновление от: 3/6/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 107-341 | CLUTCH (incl 3 thru 9; see note) | 1 | |
| US-107-341 | Сцепление, SB-II/III / SMX/SMX-II | 113 700 ₽ |
|
|
| 2 | 70-133 | KIT - clutch rebuild (incl 3 thru 7) | 1 | |
| 3 | NSS | SPRING | 4 | |
| 4 | NSS | SHOE - clutch | 2 | |
| 5 | 77-682 | BEARING - clutch | 2 | |
| 6 | NSS | RING - snap | 1 | |
| 7 | NSS | BUSHING - assembly | 2 | |
| 8 | NSS | LOCKNUT | 2 | |
| 9 | NSS | PLATE - clutch | 1 | |
| 10 | 55-4002 | WASHER - clutch to compressor | 1 | |
| 11 | 55-3546 | SCREW - socket head | 1 | |
| 12 | 11-3839 | FLYWHEEL (incl 15) | 1 | |
| 13 | 55-2438 | BOLT - flywheel | 6 | |
| 14 | 11-4046 | LOCKPLATE | 3 | |
| 70-206 | KIT - bushing (6-pin clutch, incl pins, bushings & adhesive) | 1 | ||
| 15 | 77-2760 | BUSHING - coupling (50s) | 6 | |
|
10-77-2760 | Втулка маховика | 690 ₽ |
|
| 51-869 | PIN - dowel | 6 | ||
| 16 | 12-282 | HOUSING - clutch | 1 | |
| 55-4186 | STUD - compressor to housing | 2 | ||
| 55-2683 | SCREW - compressor | 4 | ||
| 55-285 | NUT - compressor | 2 | ||
| 55-2363 | LOCKWASHER - compressor | 6 | ||
| 55-1065 | SCREW - engine to housing | 7 |
