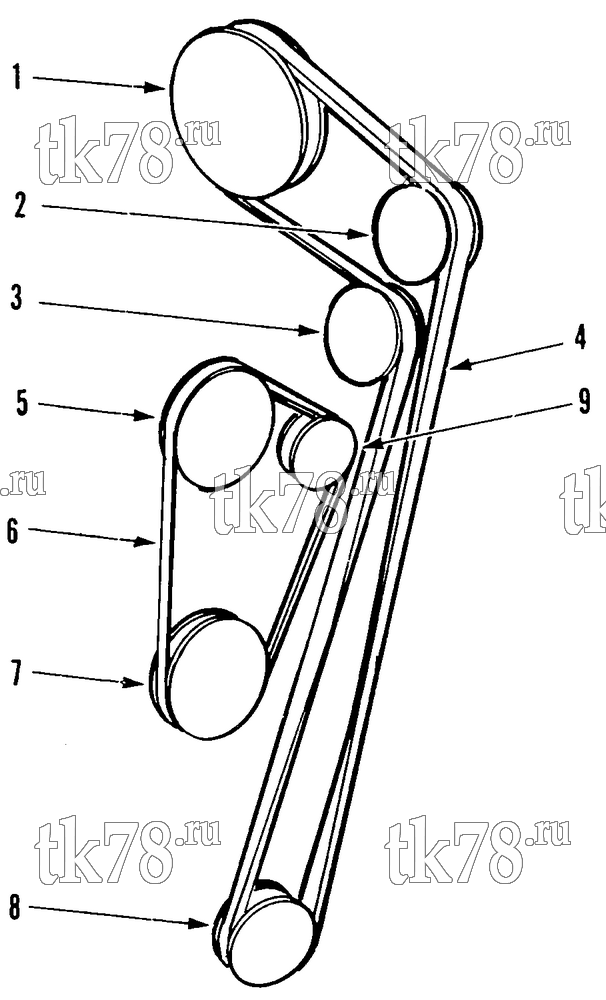

Установкa Thermo King Super NWD 30 & 50 5100 схема BELTS & PULLEYS (NWD 50) – 32B14
Обновление от: 4/1/92
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-726 | PULLEY | 1 | |
| 55-201 | SCREW | 2 | ||
| 55-421 | LOCKWASHER (internal thread) | 2 | ||
| 2 | 77-720 | PULLEY - idler | 1 | |
| 77-1443 | PULLEY - idler | 1 | ||
| 3 | 77-721 | PULLEY - idler | 1 | |
| 77-1442 | PULLEY - idler | 1 | ||
| 4 | 78-287 | BELT - fan drive | 1 | |
| 10-78-287 | Ремень вентилятора, NWD, SNWD, 50 Series | 4 290 ₽ |
|
|
| 5 | 77-709 | PULLEY - water pump | 1 | |
| 6 | 78-339 | BELT | 1 | |
| 10-78-339 | Ремень генератора, SB-II/III 50 | 3 540 ₽ |
|
|
| PP-78-339 | Ремень генератора, SB-II/III 50 | 1 530 ₽ |
|
|
| 7 | 77-731 | PULLEY - engine | 1 | |
| 10-256 | KIT - bolt (pulley boss) | 1 | ||
| 8 | 77-855 | PULLEY | 1 | |
| 9 | 77-1009 | PULLEY - idler | 1 |
