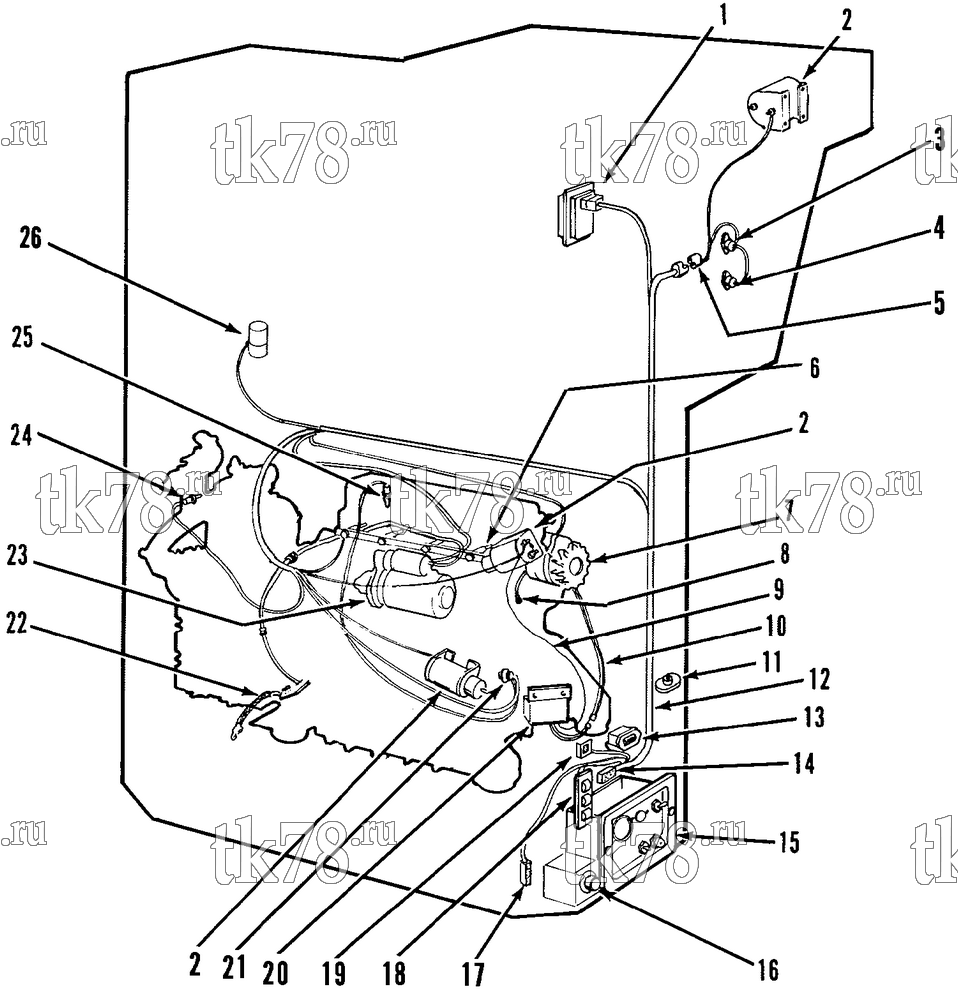

Установкa Thermo King Super NWD 30 & 50 5100 схема ELECTRICAL COMPONENTS (SNWD 30) – 27G1
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-2020 | SWITCH - air (see 43C6) | 1 | |
|
P-12-01039-08 | Выключатель размораживания, Maxima/Supra/ Vector 1350/1550/18XX/19XX | 16 490 ₽ |
|
| 2 | 44-2823 | SOLENOID (see 15A9) | 3 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 3 | 44-4059 | SWITCH - defrost termination | 1 | |
| 4 | 44-3155 | SWITCH - defrost termination | 1 | |
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 5 | 44-4348 | HARNESS - evaporator | 1 | |
| 6 | 44-2922 | GLOW PLUG | 4 | |
|
10-44-2922 | Свеча накаливания, Isuzu C201 | 1 510 ₽ |
|
| 44-4061 | RESISTOR | 1 | ||
| 7 | 44-3325 | ALTERNATOR (see 20C9) | 1 | |
| US-44-3325 | Генератор 35A/12V | 35 130 ₽ |
|
|
|
10-44-3325 | Генератор 35A/12V | 28 440 ₽ |
|
| 8 | 44-2548 | HARNESS - wire | 1 | |
| 9 | 44-2191 | CABLE - alternator | 1 | |
| 10 | 44-2193 | CABLE | 1 | |
|
10-44-2193 | Проводка генератора | 1 460 ₽ |
|
| 11 | 33-1661 | GROMMET | 1 | |
| 12 | 44-7397 | HARNESS - main (1 piece, w/ TG) | 1 | |
| 44-7396 | HARNESS (1pc, w/ U.E.) | 1 | ||
| 44-5565 | HARNESS - main (78 unit) | 1 | ||
| 13 | 44-5703 | HOURMETER - rectangle | 1 | |
|
10-44-5703 | Счетчик часов | 6 030 ₽ |
|
| 44-8764 | HOURMETER - round | 1 | ||
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 14 | 44-2602 | SOCKET | 1 | |
| 44-2825 | COVER | 1 | ||
| 55-1843 | SCREW | 2 | ||
| 15 | 45-252 | PANEL - control (see 12D1) | 1 | |
| 16 | 40-511 | KIT - thermostat & sensor | 1 | |
| 40-512 | KIT - thermostat (replaces U.E. thermostat, 4SW, see 35E7) | 1 | ||
| 17 | 44-5310 | CONNECTOR | 1 | |
| 44-5214 | SOCKET | 1 | ||
| 55-1843 | SCREW | 2 | ||
| 18 | 90-182 | LIGHT - indicator | 1 | |
| 19 | 99-3608 | BRACKET - test board | 1 | |
| 55-1329 | SCREW | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 20 | 44-5013 | REGULATOR - voltage | 1 | |
| 44-5013 OEM | Реле-регулятор генератора, KD/MD/RD-I / SB-I/II / UMD/URD | 5 050 ₽ |
|
|
| 55-2991 | SCREW | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2965 | NUT | 3 | ||
| 21 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 44-4383 | HARNESS - oil switch | 1 | ||
| 22 | 44-1431 | CABLE - ground (see 16D2) | 1 | |
| 44-4340 | CABLE - starter | 1 | ||
| 23 | 845-1285 | STARTER | 1 | |
| 24 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 25 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 26 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 44-3803 | COIL - valve | 1 |
