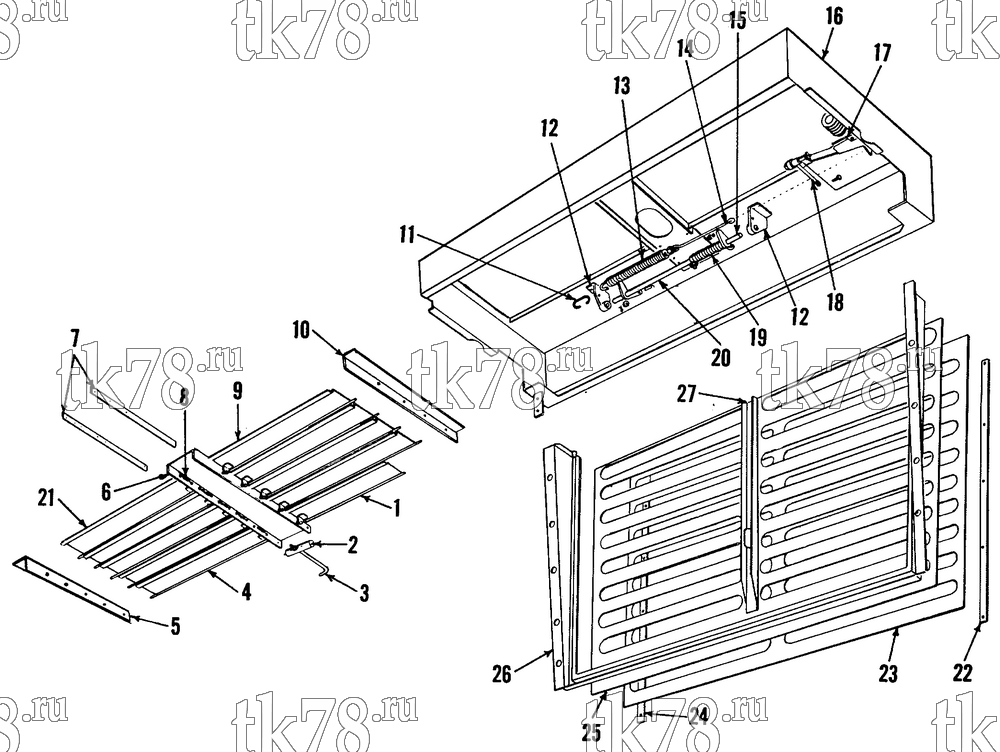

Установкa Thermo King Super NWD 30 & 50 5100 схема SHUTTER ASSEMBLY – 18F9
Обновление от: 9/4/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 606-133 | KIT - shutter | 1 | ||
| 98-1579 | TOP - shutter | 1 | ||
| 1 | 99-1434 | SHUTTER - assembly (right) | 1 | |
| 2 | 99-1409 | ROD - operating strap | 1 | |
| 55-406 | FLATWASHER | 2 | ||
| 3 | 99-1284 | ROD - shutter | 1 | |
| 55-916 | NUT | 2 | ||
| 55-217 | PIN - cotter | 1 | ||
| 55-411 | FLATWASHER | 1 | ||
| 4 | 99-1456 | SHUTTER -assembly (left) | 1 | |
| 5 | 99-1131 | ANGLE - support (left) | 1 | |
| 55-760 | SCREW | 4 | ||
| 55-664 | NUT | 4 | ||
| 6 | 99-4535 | CHANNEL | 1 | |
| 55-680 | SCREW | 5 | ||
| 55-411 | FLATWASHER | 5 | ||
| 55-916 | NUT | 5 | ||
| 55-1714 | RIVET - blind | 2 | ||
| 7 | 99-1410 | STRAP - shutter | 2 | |
| 99-165 | SPRING - tension | 2 | ||
| 8 | 99-168 | SPRING - control | 10 | |
| 55-401 | FLATWASHER | 10 | ||
| 9 | 99-1055 | SHUTTER - right | 4 | |
| 10 | 99-1408 | ANGLE - right support | 1 | |
| 55-760 | SCREW | 4 | ||
| 55-664 | NUT | 4 | ||
| 11 | 99-1279 | HOOK - spring | 1 | |
| 12 | 99-4100 | BRACKET - shutter top | 2 | |
| 55-144 | SCREW | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-916 | NUT | 4 | ||
| 13 | 99-158 | SPRING - tension | 1 | |
| 14 | 55-3756 | BOLT - eye | 1 | |
| 15 | 99-4103 | LEVER | 1 | |
| 16 | 98-580 | FRAME - shutter | 1 | |
| 17 | 99-366 | ELEMENT - power | 1 | |
| 55-1177 | NUT | 1 | ||
| 99-163 | HEAD - pusher | 1 | ||
| 99-4108 | ARM - actuator | 1 | ||
| 99-388 | SHAFT - yoke | 1 | ||
| 55-217 | PIN - cotter | 2 | ||
| 99-390 | ROLLER | 1 | ||
| 99-389 | SHAFT - roller | 1 | ||
| 55-217 | PIN - cotter | 2 | ||
| 09-3073 | PLATE | 1 | ||
| 55-680 | SCREW | 3 | ||
| 55-411 | FLATWASHER | 3 | ||
| 55-916 | NUT | 3 | ||
| 18 | 99-1469 | BOLT - eye | 1 | |
| 99-837 | SPACER - damper stop | 1 | ||
| 55-1510 | SCREW | 1 | ||
| 55-431 | FLATWASHER | 1 | ||
| 55-664 | NUT | 1 | ||
| 55-411 | FLATWASHER | 1 | ||
| 19 | 99-165 | SPRING | 1 | |
| 20 | 99-1570 | ARM | 1 | |
| 21 | 99-1065 | SHUTTER - left heater | 4 | |
| 55-1714 | RIVET | 10 | ||
| 22 | 99-1213 | SPACER - guide | 2 | |
| 23 | 98-587 | SLIDE - slotted | 1 | |
| 24 | 99-5744 | GUIDE - left | 1 | |
| 99-5745 | GUIDE - right | 1 | ||
| 55-3022 | SCREW | 10 | ||
| 55-3696 | SCREW | 5 | ||
| 55-2201 | FLATWASHER | 15 | ||
| 55-2990 | NUT | 15 | ||
| 25 | 98-641 | PLATE - slotted | 1 | |
| 26 | 98-2021 | FRAME | 1 | |
| 27 | 98-1459 | ORIFICE | 1 | |
| 99-1290 | SPACER - shoulder | 2 | ||
| 55-3442 | SCREW | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 99-4106 | ANGLE | 1 | ||
| 55-2648 | RIVET - blind | 2 | ||
| 99-1467 | ROD | 1 | ||
| 99-1485 | TURNBUCKLE | 1 | ||
| 55-217 | PIN - cotter | 2 | ||
| 55-760 | SCREW (fh mach, 10-32) | 2 | ||
| 55-1512 | SCREW (fh mach, 8-32 x 1/2) | 5 | ||
| 55-431 | FLATWASHER (#10) | 2 | ||
| 55-406 | FLATWASHER (#8) | 5 | ||
| 55-411 | FLATWASHER (1/4) | 2 | ||
| 55-315 | NUT (1/4-28, hex) | 1 | ||
| 55-686 | NUT (8-32, hex, keps) | 5 | ||
| 55-664 | NUT (10-32, hex, keps) | 2 | ||
| 99-1299 | CHANNEL (right) | 1 | ||
| 99-1296 | CHANNEL (left) | 1 | ||
| 98-995 | NAMEPLATE - TK | 1 | ||
| 55-2012 | RIVET | 8 |
