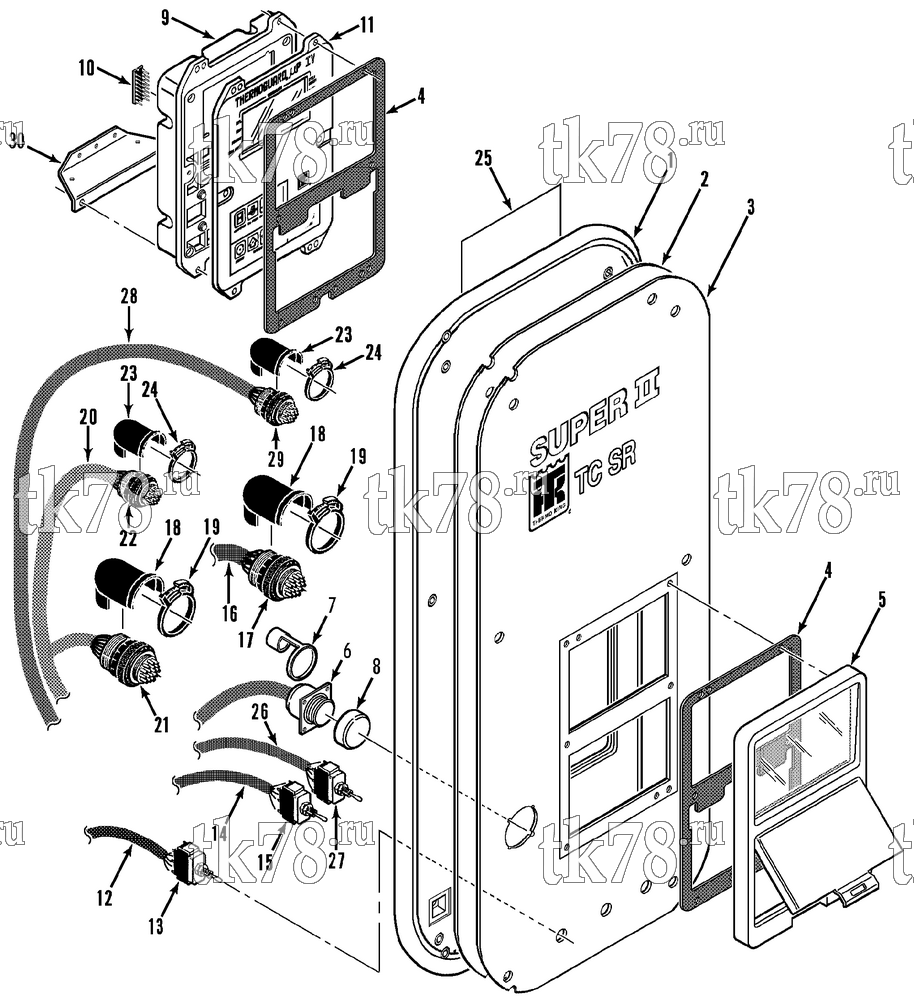

Установкa Thermo King Super-II WHISPER Multi-Temp w/TK 486 Engine схема CONTROL BOX COVER (SUPER-II TC SR) – 154A13
Обновление от: 3/9/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4766 | COVER - control box | 1 | |
| 2 | 98-4767 | PANEL - control box | 1 | |
| 98-4768 | PANEL - control box (w/ communications) | 1 | ||
| 55-6351 | SCREW - cover | 6 | ||
| 55-4953 | NUT - panel | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 3 | 91-9749 | NAMEPLATE - Super-II TC SR | 1 | |
| 4 | 33-2894 | GASKET - bezel | 2 | |
| 5 | 91-9303 | BEZEL | 1 | |
|
10-91-9303 | Панель | 11 860 ₽ |
|
| 6 | 41-3274 | HARNESS - datalogging | 1 | |
| 7 | 41-1126 | CLAMP - cable | 1 | |
| 8 | 41-1129 | CAP - dust | 1 | |
| 55-3427 | SCREW - receptacle | 4 | ||
| 55-2359 | FLATWASHER | 4 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 | ||
| 9 | 845-2426 | CONTROLLER - microprocessor (reman) | 1 | |
| 845-2427 | CONTROLLER - microprocessor (reman) | 1 | ||
| 55-4580 | SCREW - controller | 6 | ||
| 10 | 40-806 | KIT - eprom chip | 1 | |
| 11 | 91-6191 | FACEPLATE/OVERLAY | 1 | |
| 12 | 41-1793 | HARNESS - switch (zone 1) | 1 | |
| 13 | 44-7792 | SWITCH - on/off (zone 1) | 1 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 14 | 41-1794 | HARNESS - switch (zone 2) | 1 | |
| 15 | 44-7792 | SWITCH - on/off (zone 2) | 1 | |
|
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 16 | 41-3267 | HARNESS - sensor | 1 | |
| 17 | 41-745 | CONNECTOR - circular (23-pin) | 1 | |
| 33-3716 | SEAL - peripheral | 1 | ||
| 18 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 19 | 55-7618 | CLAMP (plastic) | 2 | |
| 20 | 41-2257 | HARNESS - interconnecting | 1 | |
| 21 | 41-743 | CONNECTOR - circular (17-pin) | 1 | |
| 22 | 41-744 | CONNECTOR - circular (19-pin) | 1 | |
| 23 | 41-224 | STRAIN RELIEF - connector (14-pin) | 2 | |
| 24 | 55-7617 | CLAMP (plastic) | 2 | |
| 25 | 91-9748 | NAMEPLATE - relay board | 1 | |
| 26 | 41-1795 | HARNESS - switch (zone 3) | 1 | |
| 27 | 44-7792 | SWITCH - on/off (zone 3) | 1 | |
|
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 28 | 41-3274 | HARNESS - datalogging | 1 | |
| 41-3373 | HARNESS - logging/remote controller (for flush mount controller) | 1 | ||
| 29 | 41-746 | CONNECTOR - circular (9-pin) | 1 | |
| 30 | 91-5728 | BRACKET - harness | 1 |
