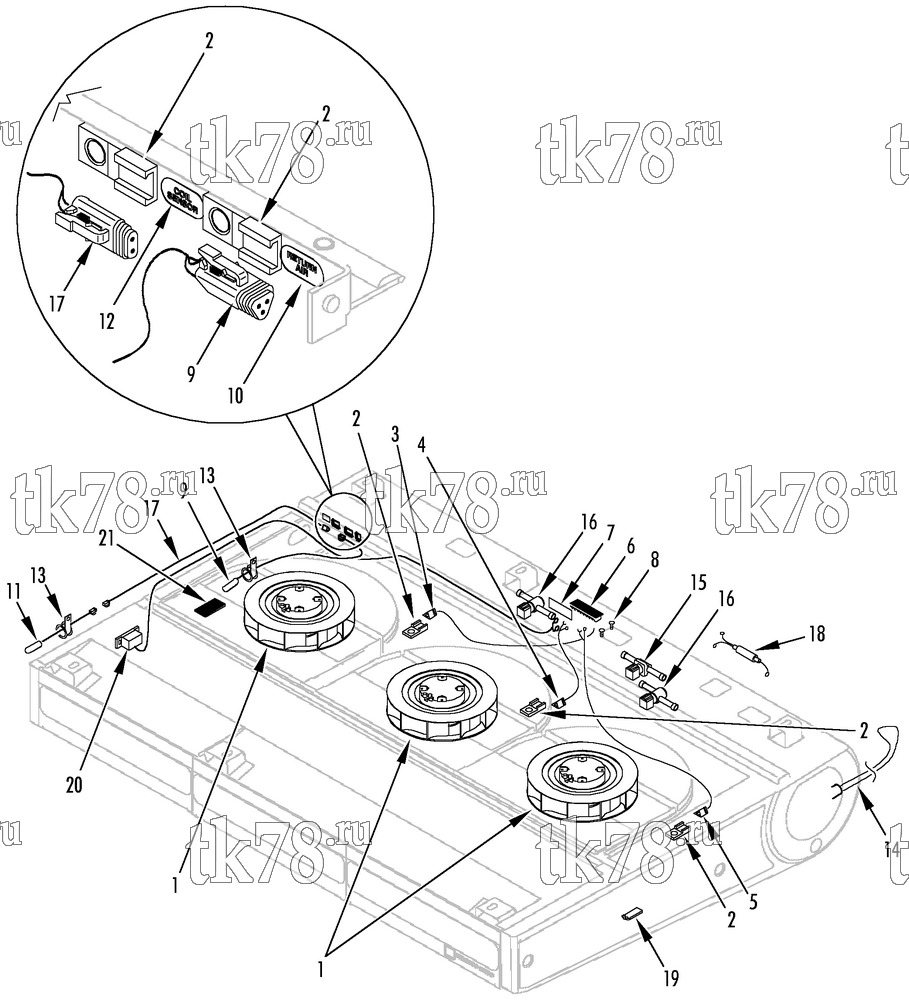

Установкa Thermo King Super-II WHISPER Multi-Temp w/TK 486 Engine схема ELECTRICAL COMPONENTS (TLE-3) – 148G12
Обновление от: 10/3/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1211 | BLOWER & MOTOR (12V) | 3 | |
| 2 | 44-9906 | TAB - connector | 5 | |
| 55-2264 | RIVET - tab | 5 | ||
| 55-2201 | FLATWASHER | 5 | ||
| 3 | 41-2613 | HARNESS - fan (No. 1, before 8/99) | 1 | |
| 41-3278 | HARNESS - fan (No. 1, 8/99 & after) | 1 | ||
| 4 | 41-2614 | HARNESS - fan (No. 2, before 8/99) | 1 | |
| 41-3279 | HARNESS - fan (No. 2, 8/99 & after) | 1 | ||
| 5 | 41-2615 | HARNESS - fan (No. 3, before 8/99) | 1 | |
| 41-3280 | HARNESS - fan (No. 3, 8/99 & after) | 1 | ||
| 6 | 44-2728 | BOARD - terminal | 1 | |
| 44-2915 | STRIP - jumper | 1 | ||
| 55-4474 | SCREW - terminal board | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 2 | ||
| 7 | 91-9054 | MARKSTRIP | 1 | |
| 8 | 44-6695 | JUMPER | 1 | |
| 55-3000 | SCREW - ground | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 9 | 40-974 | KIT - sensor (return air, graded) | 1 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 10 | 91-8859 | NAMEPLATE - return air sensor | 1 | |
| 11 | 40-785 | SENSOR - temperature (coil, ungraded) | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 12 | 91-6995 | NAMEPLATE - sensor coil | 1 | |
| 13 | 55-547 | CLAMP - sensor | 2 | |
| 14 | 44-6026 | WIRE - resistance | A/R | |
| 15 | 61-1300 | VALVE - suction (see 117A1) | 1 | |
|
61-1300 OEM | Клапан Ø 18мм, SB/SB-III/SMX/SMX-II/MD-II/RD-II/SL/SLX/SLXe | 41 690 ₽ |
|
| 16 | 61-3401 | VALVE - solenoid (liquid/defrost, see 116G14) | 2 | |
|
10-61-9093 | Соленоид горячего газа, MD-II/RD-II/SB-III/SMX/UTS / T/UT-Series | 19 380 ₽ |
|
| 17 | 41-2616 | HARNESS - coil sensor | 1 | |
| 18 | 41-3281 | HARNESS - speed control (24V TLE 2200 RPM) | 1 | |
| 41-3282 | HARNESS - speed control (12V TLE 2200 RPM) | 1 | ||
| 41-3829 | HARNESS - speed control (12V SPECTRUM 1900 RPM) | 1 | ||
| 41-3281 | HARNESS - temperature switch | 1 | ||
| 19 | 92-2704 | RETAINER - resistance wire | 2 | |
| 20 | 41-4202 | SWITCH - temperature | 1 | |
| 21 | 92-2943 | PAD - sensor delay | 1 |
