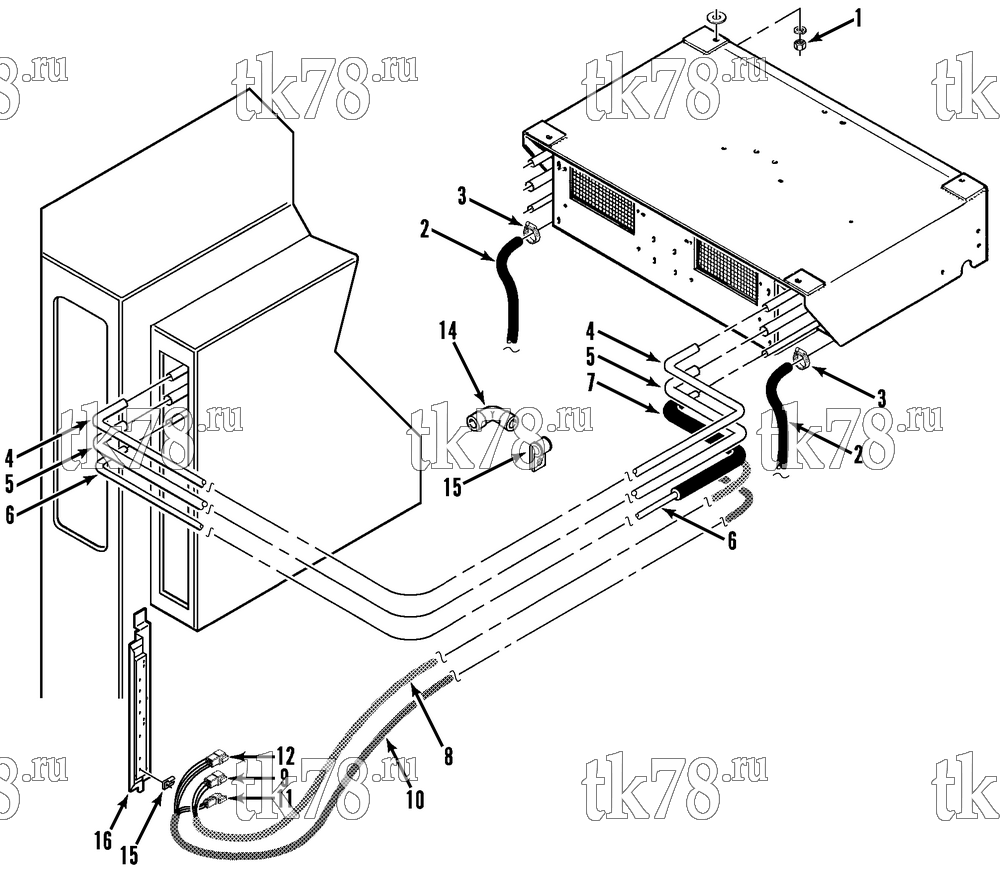

Установкa Thermo King Super-II WHISPER Multi-Temp w/TK 486 Engine схема INSTALLATION GROUP (ECT-1) – 134A7
Обновление от: 1/28/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-3686 | NUT - unit | 4 | |
| 55-2038 | FLATWASHER | 8 | ||
| 55-5725 | WASHER - special | 4 | ||
| 2 | 99-7103 | HOSE - defrost drain | 2 | |
| 3 | 55-2686 | CLAMP - hose | 4 | |
| 4 | 67-1273 | TUBE - defrost (5/8 x 50 ft) | 1 | |
| 5 | 67-1041 | TUBE - suction (7/8 x 50 ft) | 1 | |
| 6 | 67-712 | TUBE - liquid (3/8 x 50 ft) | 1 | |
| 67-1126 | TUBE - liquid (1/2 x 50 ft) | 1 | ||
| 7 | 91-3541 | TUBE - insulating (5/8 id x 54 ft) | 1 | |
| 91-3542 | TUBE - insulating (7/8 id x 12 ft) | 1 | ||
| 8 | 41-2271 | HARNESS - remote evaporator | 1 | |
| 9 | 44-8935 | CONNECTOR (4-pin, male) | 1 | |
| 10 | 41-1381 | HARNESS - evaporator sensor | 1 | |
| 11 | 44-9631 | CONNECTOR (3-pin) | 1 | |
| 12 | 44-9585 | PLUG (2-pin) | 1 | |
| 13 | 55-3359 | CLAMP (7/8) | A/R | |
| 55-6156 | CLAMP (1-7/16) | A/R | ||
| 55-6350 | SCREW - clamp | A/R | ||
| 14 | 66-637 | ELBOW (7/8 solder) | A/R | |
| 55-2187 | ELBOW (5/8 solder) | A/R | ||
| 15 | 44-9906 | TAB - mounting (Deutsch connectors) | A/R | |
| 55-3136 | RIVET - tab | A/R | ||
| 16 | 91-7594 | BRACKET - harness connector | 1 |
