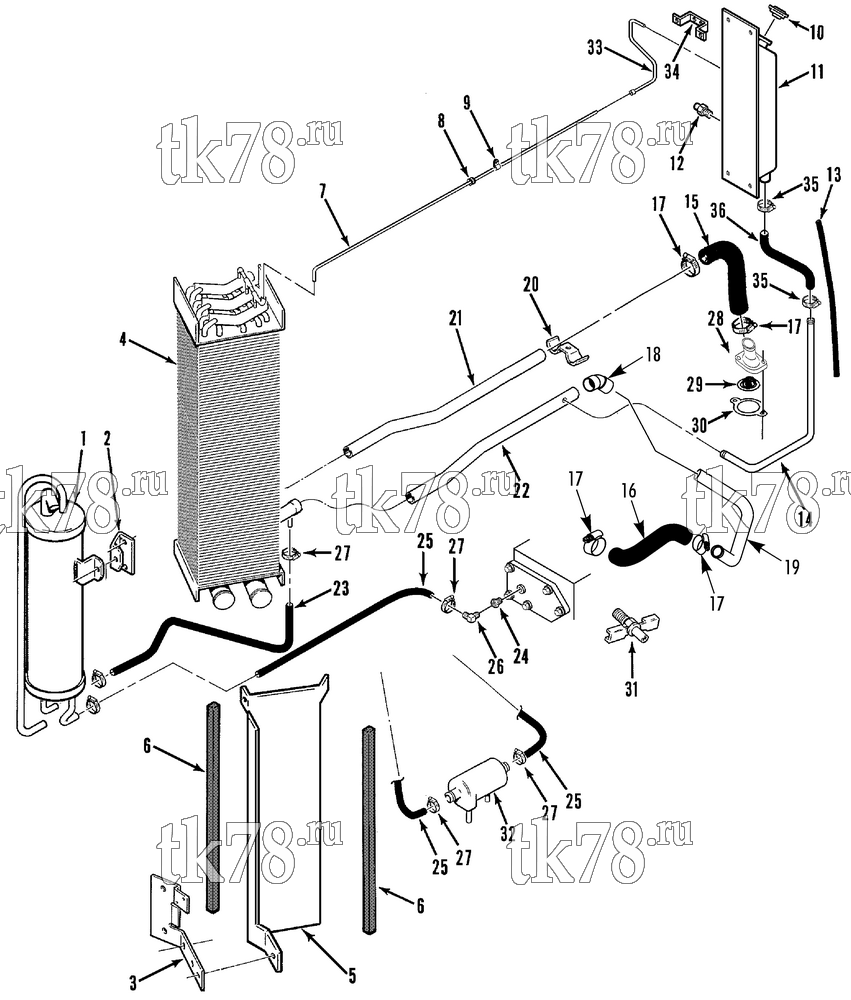

Установкa Thermo King Super-II Tier 2 Engine (701297) схема COOLING SYSTEM (w/ Tier 2 engine) – 226E7
Обновление от: 9/12/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2790 | TANK - accumulator | 1 | |
| 67-1274 | TANK - accumulator (w/o hot water heat) | 1 | ||
| 2 | 91-745 | BRACKET - accumulator | 1 | |
| 55-2969 | SCREW - bracket | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 3 | 91-746 | BRACKET - radiator support (before 3/95) | 1 | |
| 91-7241 | BRACKET - radiator support (after 2/95) | 1 | ||
| 55-529 | SCREW - bracket | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 4 | 12-760 | RADIATOR (w/ hot water heat) | 1 | |
| 12-761 | RADIATOR (w/ hot water heat, vinyl dipped) | 1 | ||
| 12-759 | RADIATOR (w/o hot water heat) | 1 | ||
| 12-762 | RADIATOR (w/o hot water heat, vinyl dipped) | 1 | ||
| 99-9894 | NUTSTRIP - radiator (4.0 bhc) | 2 | ||
| 91-1780 | NUTSTRIP (3.0 bhc) | 2 | ||
| 55-1725 | RIVET - nutstrip | 6 | ||
| 55-2969 | SCREW - radiator | 6 | ||
| 55-790 | LOCKWASHER | 6 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-2904 | WASHER - special | 2 | ||
| 5 | 98-3283 | PANEL - radiator cover | 1 | |
| 55-2969 | SCREW - panel (1.0 lg) | 2 | ||
| 55-2969 | SCREW - panel (1.5 lg) | 1 | ||
| 55-2958 | FLATWASHER | 3 | ||
| 55-4954 | NUT | 3 | ||
| 6 | 33-3506 | STRIP - sealing | 2 | |
| 7 | 11-6305 | TUBE - radiator to expansion tank | 1 | |
| 8 | 33-287 | GROMMET | 2 | |
| 9 | 55-2536 | CLAMP - tube | 2 | |
| 10 | 11-5406 | CAP - radiator | 1 | |
|
10-11-5406 | Крышка радиатора | 2 200 ₽ |
|
| 11 | 10-345 | KIT - tank, expansion | 1 | |
| 55-2796 | CLAMP - fuel line | 2 | ||
| 11-4677 | HOSE | 1 | ||
| 81-293 | FITTING - barb | 1 | ||
| 55-2539 | BUSHING | 1 | ||
| 12-777 | TANK - expansion | 1 | ||
| 55-1587 | SCREW - tank | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4967 | NUT | 4 | ||
| 12 | 44-6534 | SENSOR - coolant level (before 2/02) | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 41-2842 | SENSOR - coolant level (2/02 & after) | 1 | ||
| 13 | 99-1655 | HOSE - overflow (90.0 lg) | A/R | |
| 14 | 11-6303 | TUBE - expansion tank (before 11/92) | 1 | |
| 11-7773 | TUBE - expansion tank (11/92 & after) | 1 | ||
| 55-4203 | CLAMP - tube | 1 | ||
| 15 | 11-9501 | HOSE - engine outlet to radiator (silicone) | 1 | |
| 16 | 11-9702 | HOSE - tube to engine inlet (silicone) | 1 | |
| 11-9701 | HOSE - tube to engine inlet (EPDM) | 1 | ||
| 17 | 55-558 | CLAMP - hose (EPDM) | 4 | |
| 55-1521 | CLAMP - hose (silicone) | 4 | ||
| 18 | 55-4277 | ELBOW (45 degree) | 1 | |
| 19 | 92-6731 | TUBE - outlet (elbow to hose) | 1 | |
| 20 | 99-3884 | CLAMP - tube | 1 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 21 | 11-6300 | TUBE - radiator inlet | 1 | |
| 22 | 11-7772 | TUBE - radiator outlet | 1 | |
| 23 | 11-7697 | HOSE - radiator outlet (EPDM) | 1 | |
| 11-7698 | HOSE - radiator outlet (silicone) | 1 | ||
| 24 | 55-7454 | BUSHING | 1 | |
| 25 | 11-7699 | HOSE - accumulator to cylinder head (EPDM) | 1 | |
| 11-7700 | HOSE - accumulator to cylinder head (silicone) | 1 | ||
| 26 | 55-7017 | ELBOW | 1 | |
| 27 | 55-2069 | CLAMP - hose (EPDM) | 4 | |
| 55-6731 | CLAMP - hose (silicone) | 4 | ||
| 28 | 11-8675 | ADAPTER - engine water outlet (see 204F0) | 1 | |
| 29 | 13-385 | THERMOSTAT (see 204F0) | 1 | |
|
13-385 OEM | Термостат, Yanmar 486V, SB/SLX/SLXe | 5 100 ₽ |
|
|
PP-13-385 | Термостат, Yanmar 486V, SB/SLX/SLXe | 2 540 ₽ |
|
| 30 | 33-2767 | GASKET (see 204F0) | 1 | |
|
33-2767 OEM | Прокладка термостата верхняя, Yanmar 482 / 486 / 468V | 1 300 ₽ |
|
|
10-33-2767 | Прокладка термостата верхняя, Yanmar 482 / 486 / 468V | 890 ₽ |
|
| 31 | 55-5094 | COCK - drain | 1 | |
| 32 | 11-7760 | KIT - fuel heater | 1 | |
| 33 | 11-8610 | TUBE - radiator to expansion tank (before 7/00) | 1 | |
| 11-9306 | TUBE - radiator to expansion tank (7/00 & after) | 1 | ||
| 34 | 91-2670 | BRACKET - expansion tank | 1 | |
| 35 | 55-2818 | CLAMP - hose (EPDM) | 2 | |
| 55-1521 | CLAMP - hose (silicone) | 2 | ||
| 36 | 11-7300 | HOSE - engine to expansion tank (EPDM) | 1 | |
| 11-7729 | HOSE - engine to expansion tank (silicone) | 1 |
