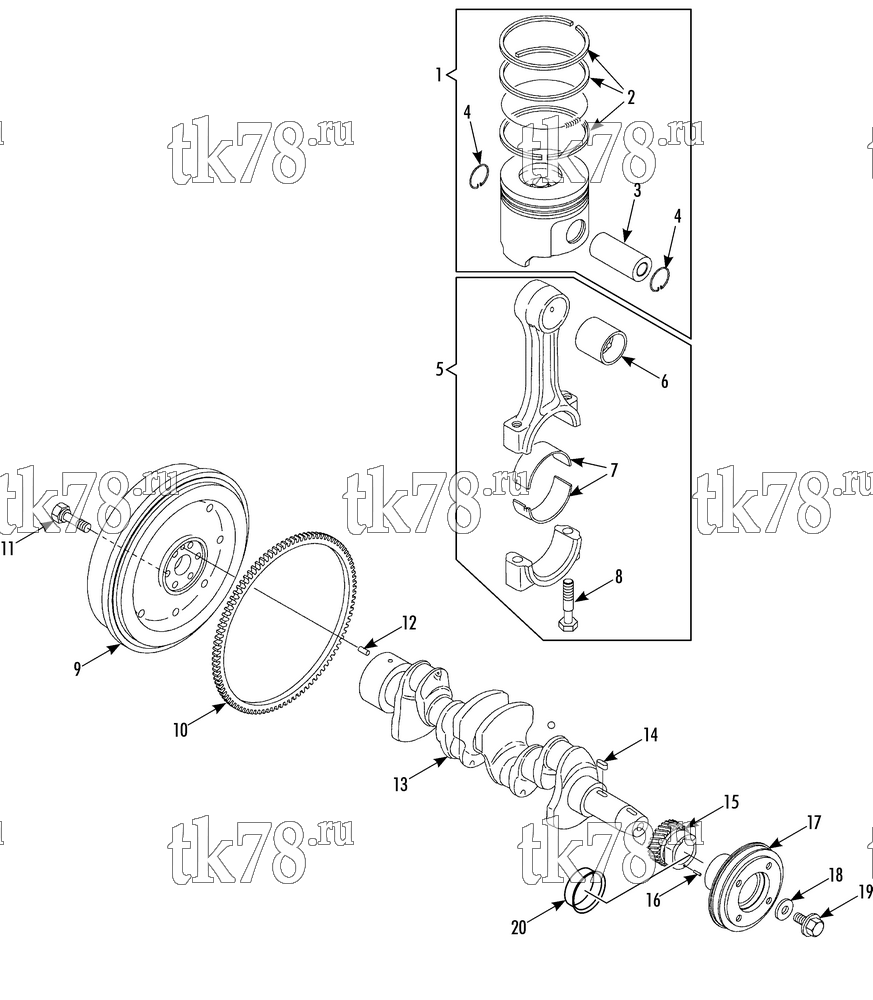

Установкa Thermo King Super-II Tier 2 Engine (701297) схема CRANKSHAFT & PISTON GROUP (TK486 series) – 204F6
Обновление от: 4/5/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-1064 | PISTON (std, incl 2-4) | 4 | |
|
10-13-1064 | Поршень к-т STD, Yanmar 486V, SB-XXX/SLe/SLX/SLXe | 16 270 ₽ |
|
|
PP-13-1064 | Поршень к-т STD, Yanmar 486V, SB-XXX/SLe/SLX/SLXe | 7 470 ₽ |
|
| 13-1065 | PISTON (w/ ring, 0.25 mm os) | 4 | ||
| 10-13-1065 | Поршень, к-т, +0.25, Yanmar 486V | 18 770 ₽ |
|
|
| 13-1066 | PISTON (w/ ring, 0.50 mm os) | 4 | ||
| 2 | 13-355 | RING SET (std) | 2 | |
|
10-13-355 | Кольца поршневые STD, Yanmar 486V, SLe/SLX/SLXe | 12 340 ₽ |
|
|
PP-13-355 | Кольца поршневые STD, Yanmar 486V, SLe/SLX/SLXe | 2 740 ₽ |
|
| 13-461 | RING SET (0.25 mm os) | 4 | ||
|
10-13-461 | Кольца поршневые к-т (на 1 поршень), 0.25 mm, Yanmar 486V | 9 930 ₽ |
|
| 13-455 | RING SET (0.50 mm os) | 4 | ||
| 3 | 11-8950 | PIN - piston | 4 | |
| 4 | 11-8951 | CIRCLIP | 8 | |
| 5 | 11-8952 | ROD - connecting | 4 | |
|
10-11-8952 | Шатун, Yanmar 482 / 486 / 486V | 29 660 ₽ |
|
| 6 | 11-8953 | BUSHING - piston pin | 4 | |
|
10-11-8953 | Втулка шатуна, Yanmar 482 / 486 / 486V | 3 000 ₽ |
|
| 7 | 13-924 | BEARING - connecting rod (std) | 4 | |
|
13-924 OEM | Вкладыш шатунный STD, Yanmar 482 / 486 / 486V | 2 750 ₽ |
|
|
PP-13-924 | Вкладыш шатунный STD, Yanmar 482 / 486 / 486V | 600 ₽ |
|
| 13-925 | BEARING - connecting rod (0.25 mm us) | 4 | ||
|
10-11-8957 | Вкладыш шатунный +0.25, Yanmar 482 / 486 / 486V | 2 860 ₽ |
|
| PP-11-8957 | Вкладыш шатунный +0.25, Yanmar 482 / 486 / 486V | 640 ₽ |
|
|
| 8 | 55-8865 | BOLT - connecting rod | 8 | |
| 9 | 12-750 | FLYWHEEL | 1 | |
| 10 | 11-8947 | GEAR - ring (before 11/08) | 1 | |
| 13-1138 | GEAR - ring (11/08 & after) | 1 | ||
| 11 | 55-8864 | BOLT - flywheel | 6 | |
| 12 | 55-5816 | PIN - dowel | 1 | |
| 13 | 13-351 | CRANKSHAFT | 1 | |
| 14 | 11-6719 | KEY - gear | 1 | |
| 15 | 13-352 | GEAR - crankshaft | 1 | |
| 16 | 55-4668 | PIN - spring | 1 | |
| 17 | 13-353 | PULLEY - crankshaft | 1 | |
| 18 | 55-6249 | WASHER | 1 | |
| 19 | 55-6250 | BOLT - v-pulley | 1 | |
| 20 | 11-9592 | SPEEDI SLEEVE - front seal | 1 | |
|
10-11-9592 | Втулка сальника коленвала, Yanmar 482 / 486 / 486V | 14 220 ₽ |
|
