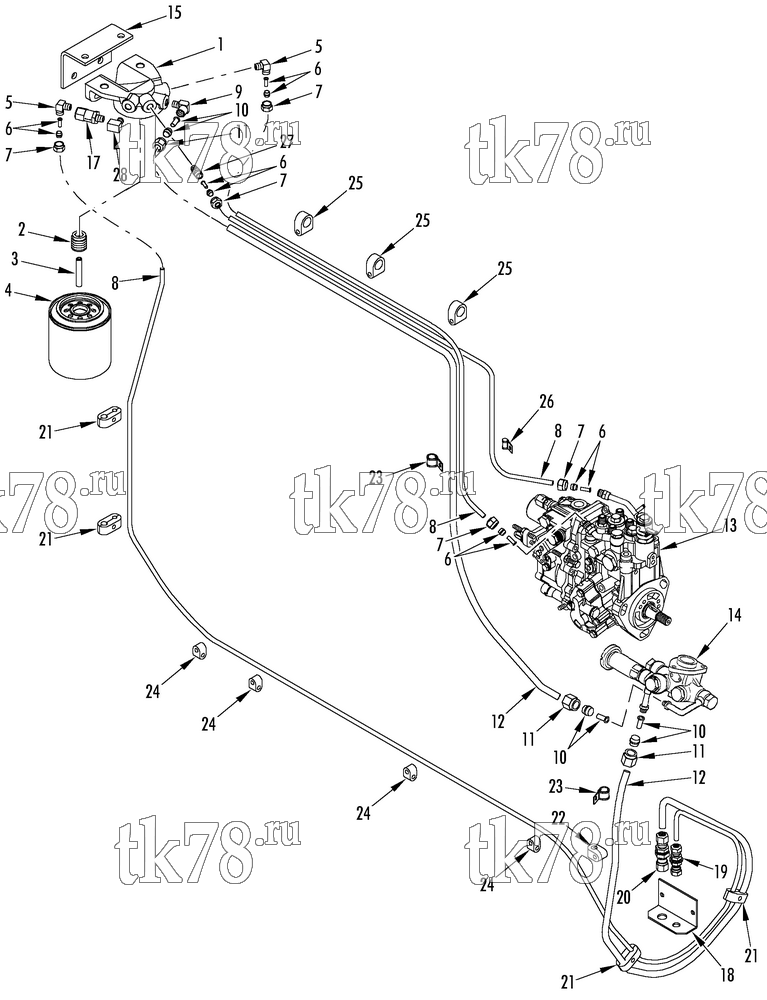

Установкa Thermo King Super-II Tier 2 Engine (701297) схема FUEL FILTER & HOSES (SUPER-II TK486V) – 204C7
Обновление от: 12/30/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 10-325 | KIT - fuel filter | 1 | ||
| 1 | 11-9015 | HEAD - fuel filter | 1 | |
| 55-5078 | NUT | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 2 | 11-9017 | SPUD - fuel filter | 1 | |
| 3 | 11-9016 | SHAFT - water bleed | 1 | |
| 4 | 11-9342 | FILTER - fuel (EMI 3000) | 1 | |
|
US-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 1 740 ₽ |
|
|
10-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 690 ₽ |
|
|
11-9342 OEM | Фильтр топливный EMI 3000, SL/SLe/SLX/SLXe | по запросу |
|
| 5 | 11-5320 | ELBOW - hose (1/4) | 3 | |
| 6 | 10-243 | KIT - sleeve & eyelet (1/4) | 5 | |
| 7 | 11-4841 | NUT - hose (1/4) | 5 | |
| 8 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 9 | 11-4380 | ELBOW - hose fitting (3/8) | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 10 | 10-242 | KIT - sleeve & eyelet (3/8) | 3 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11 | 11-4941 | NUT - hose (3/8) | 3 | |
| 12 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 13 | 101-362 | PUMP - fuel injection (see 204G1) | 1 | |
| 101-354 OEM | Плунжерная пара ТНВД, Yanmar 486V, SB/SLe/SLX/SLXe | 92 440 ₽ |
|
|
| 10-101-354 | Плунжерная пара ТНВД, Yanmar 486V, SB/SLe/SLX/SLXe | 36 470 ₽ |
|
|
| 14 | 11-7433 | PUMP - fuel (see 197C6) | 1 | |
|
11-7433 OEM | Топливный насос подкачки, SB/SB-III/SMX/SMX-II/SL/SLe/SLX/SLXe | 24 100 ₽ |
|
|
PP-11-7433 | Топливный насос подкачки, SB/SB-III/SMX/SMX-II/SL/SLe/SLX/SLXe | 6 680 ₽ |
|
| 15 | 91-8845 | BRACKET - fuel filter | 1 | |
| 55-172 | SCREW - bracket | 2 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-4967 | NUT | 2 | ||
| 16 | 55-4203 | CLAMP - hose (5/8) | 1 | |
| 17 | 10-342 | KIT - check valve (fuel line) | 1 | |
| 11-9245 | VALVE - check | 1 | ||
| 18 | 91-387 | BRACKET - fuel line (Super-II) | 1 | |
| 55-6545 | SCREW - bracket | 1 | ||
| 55-411 | FLATWASHER | 1 | ||
| 55-366 | LOCKWASHER | 1 | ||
| 19 | 11-6861 | FITTING - hose (1/4) | 1 | |
| 20 | 11-6862 | FITTING - hose (3/8) | 1 | |
| 21 | 55-6478 | CLAMP - hose (1/4 & 3/8) | 4 | |
| 22 | 55-6388 | CLAMP - hose (3/8) | 1 | |
| 23 | 55-549 | CLAMP - hose (3/8) | 2 | |
| 24 | 55-6544 | CLAMP - hose (1/4) | 4 | |
| 25 | 91-758 | CLAMP - hose | 3 | |
| 26 | 55-546 | CLAMP - hose (1/4) | 1 | |
| 55-6545 | SCREW - clamp | A/R | ||
| 27 | 11-6837 | FITTING | 1 | |
| 28 | 55-2505 | ELBOW | 1 |
