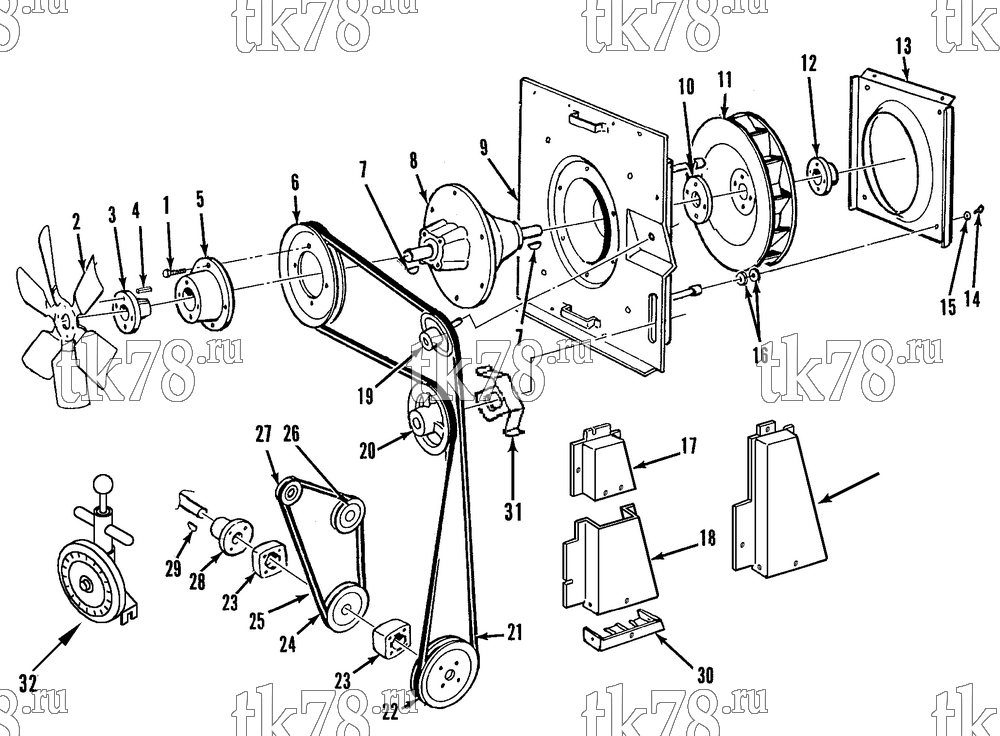

Установкa Thermo King Super-II ThermoFresh w/di 2.2 Engine схема FANS, BELTS & PULLEYS GROUP – 103F1
Обновление от: 1/30/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-2969 | SCREW - fan | 4 | |
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 2 | 78-750 | FAN - condenser | 1 | |
| 3 | 77-1882 | BUSHING - taper | 1 | |
| 4 | 55-4164 | KEY - bushing | 1 | |
| 5 | 77-1772 | MOUNT - fan | 1 | |
| 6 | 77-1773 | PULLEY - condenser fan | 1 | |
| 55-6146 | SCREW - bushing | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 7 | 55-457 | KEY - fan | 2 | |
| 8 | 78-707 | FANSHAFT - assembly (see 80F6) | 1 | |
| 55-129 | SCREW - fanshaft | 6 | ||
| 55-402 | FLATWASHER | 12 | ||
| 55-5078 | NUT | 6 | ||
| 9 | 98-3502 | PANEL - bulkhead | 1 | |
| 55-2683 | SCREW - panel | 11 | ||
| 55-2363 | LOCKWASHER | 11 | ||
| 55-2641 | FLATWASHER | 11 | ||
| 10 | 77-1771 | RING - blower | 1 | |
| 11 | 78-930 | WHEEL - blower | 1 | |
| 12 | 77-1592 | HUB - evaporator blower | 1 | |
| 55-3490 | SCREW - hub to blower | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT | 4 | ||
| 55-8974 | SCREW - hub to shaft | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 13 | 78-704 | ORIFICE - evaporator | 1 | |
| 14 | 55-2977 | SCREW - orifice to bulkhead | 4 | |
| 15 | 55-3045 | WASHER - dome | 4 | |
| 16 | 55-2904 | WASHER - special | A/R | |
| 17 | 91-2676 | GUARD - belt (upper) | 1 | |
| 18 | 91-2675 | GUARD - belt (lower) | 1 | |
| 55-3021 | SCREW - guard | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 19 | 77-2004 | PULLEY - idler (V-groove, see 80F11) | 1 | |
|
10-77-2004 | Ролик-успокоитель | 33 440 ₽ |
|
| 91-1778 | PLATE - threaded (pulley) | 1 | ||
| 20 | 77-1775 | PULLEY - idler (flat groove, see 80F11) | 1 | |
| 99-9897 | CHANNEL - idler pulley | 1 | ||
| 21 | 78-835 | BELT - fan drive | 1 | |
| 10-78-835 | Ремень вентилятора, SUPER II | 8 200 ₽ |
|
|
| PP-78-835 | Ремень вентилятора, SUPER II | 5 460 ₽ |
|
|
| 22 | 77-2396 | PULLEY - fan drive (R502) | 1 | |
| 55-5606 | SCREW - pulley | 4 | ||
| 55-5411 | LOCKWASHER | 4 | ||
| 23 | 77-1665 | SPACER - pulley | 2 | |
| 24 | 77-1369 | PULLEY - water pump & alternator | 1 | |
| 25 | 78-929 | BELT - water pump & alternator | 1 | |
| 10-78-929 | Ремень водяной помпы и генератора, SB-XXX/SB-III | 4 020 ₽ |
|
|
| PP-78-929 | Ремень водяной помпы и генератора, SB-XXX/SB-III | 1 770 ₽ |
|
|
| 26 | 77-1345 | PULLEY - water pump | 1 | |
| 77-1346 | SPACER - pulley | 1 | ||
| 55-4998 | SCREW - pulley | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 55-371 | FLATWASHER | 3 | ||
| 27 | 77-2022 | PULLEY - alternator (see 101D11) | 1 | |
| 28 | 77-1366 | BOSS - pulley | 1 | |
|
10-77-1366 | Шкив, Isuzu C-201 | 9 100 ₽ |
|
| 10-256 | KIT - bolt (pulley boss) | 1 | ||
| 29 | 55-1933 | KEY - boss | 1 | |
| 30 | 91-8346 | CAP - guard (bottom) | 1 | |
| 55-2991 | SCREW - cap | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-4560 | NUT | 3 | ||
| 31 | 91-4270 | GUIDE - belt | 1 | |
| 32 | 204-427 | GAUGE - belt tension | 1 |
