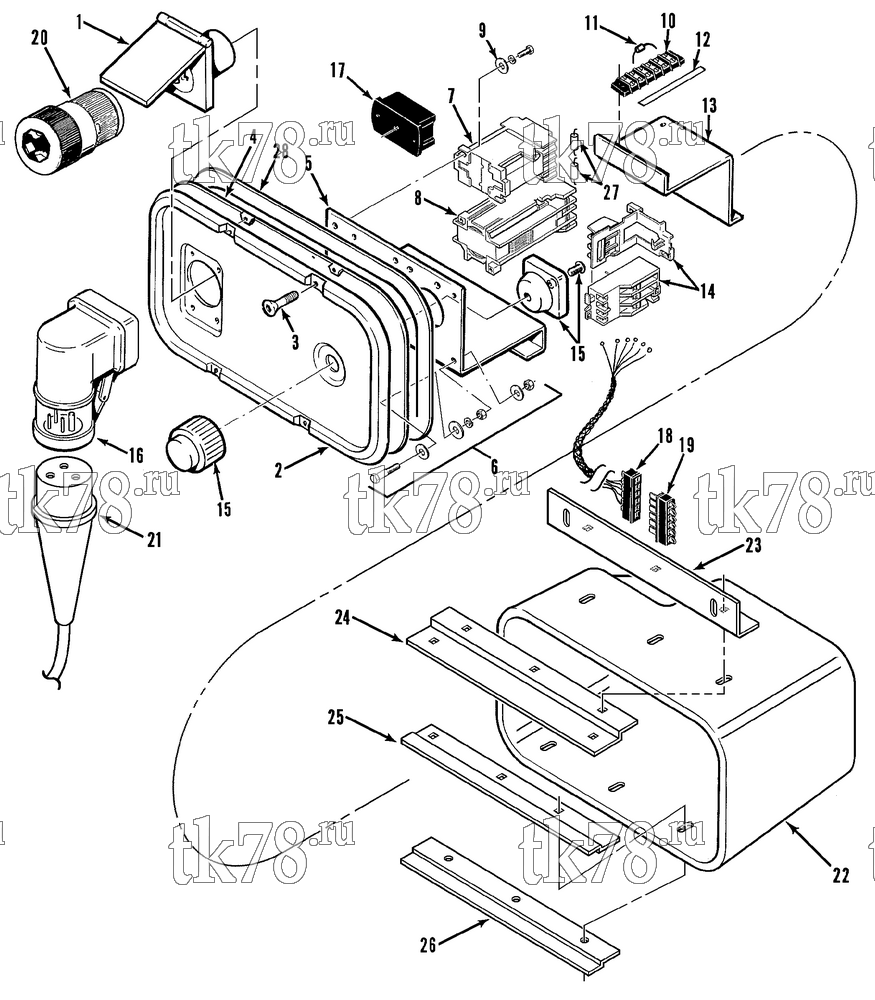

Установкa Thermo King Super-II SR, SR+ & MAX TG VI w/se 2.2 Engine схема LINESTARTER ASSEMBLY – 139G10
Обновление от: 6/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-1817 | RECEPTACLE - power (230/3/60) | 1 | |
| 44-4660 | RECEPTACLE - power (380/3/60) | 1 | ||
| 55-1871 | SCREW - receptacle | 4 | ||
| 55-1266 | FLATWASHER | 4 | ||
| 55-5761 | LOCKWASHER | 4 | ||
| 55-295 | NUT | 4 | ||
| 2 | 98-3422 | BEZEL - linestarter | 1 | |
| 98-3434 | BEZEL - linestarter (EMEIA) | 1 | ||
| 3 | 55-6040 | SCREW - linestarter | 4 | |
| 55-4966 | NUT - captive | 4 | ||
| 4 | 91-509 | REINFORCEMENT - bezel | 1 | |
| 91-559 | REINFORCEMENT - bezel (EMEIA) | 1 | ||
| 5 | 91-510 | BRACKET - relay | 1 | |
| 91-560 | BRACKET - relay (EMEIA) | 1 | ||
| 6 | 55-101 | SCREW - bracket | 5 | |
| 55-411 | FLATWASHER | 15 | ||
| 55-366 | LOCKWASHER | 5 | ||
| 55-291 | NUT | 5 | ||
| 55-4118 | LOCKNUT | 5 | ||
| 7 | 41-5629 | CONTACTOR - heater | 1 | |
| 8 | 41-7934 | CONTACTOR - motor | 1 | |
| 41-5630 | CONTACTOR - motor (12 volt coil) | 1 | ||
| 40-333 | KIT - points | 1 | ||
| 44-4286 | COIL | 1 | ||
| 9 | 55-2497 | SCREW - heater contactor | 2 | |
| 55-770 | SCREW - motor contactor | 2 | ||
| 55-5761 | LOCKWASHER | 4 | ||
| 55-1266 | FLATWASHER | 4 | ||
| 10 | 44-5350 | BOARD - terminal | 1 | |
| 11 | 44-4861 | DIODE - assembly | 1 | |
| 12 | 91-8000 | MARKSTRIP | 1 | |
| 55-857 | SCREW - terminal board | 2 | ||
| 55-1266 | FLATWASHER | 4 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-295 | NUT | 2 | ||
| 13 | 91-511 | BRACKET - overload relay | 1 | |
| 91-561 | BRACKET - overload relay (EMEIA) | 1 | ||
| 55-770 | SCREW - bracket | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 14 | 44-6092 | RELAY - overload (230V) | 1 | |
| 44-8050 | RELAY - overload (380V) | 1 | ||
| 44-6854 | RELAY - overload (EMEIA) | 1 | ||
| 41-5621 | RELAY - overload | 1 | ||
| 55-770 | SCREW - relay | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-295 | NUT | 2 | ||
| 15 | 92-8854 | BUTTON - reset | 1 | |
| 16 | 44-6875 | RECEPTACLE - power (380/3/50, EMEIA) | 1 | |
| 99-9052 | COVER - receptacle | 1 | ||
| 33-1697 | GASKET - receptacle | 2 | ||
| 17 | 44-6688 | SWITCH - temperature (EMEIA) | 1 | |
| 18 | 44-7688 | HARNESS - linestarter | 1 | |
| 19 | 44-7687 | HARNESS - diesel/electric | 1 | |
| 20 | 41-1816 | PLUG (230V) | 1 | |
| 44-4662 | PLUG (460V) | 1 | ||
| 21 | 44-6685 | PLUG (380V, EMEIA) | 1 | |
| 22 | 91-4984 | BOX - high voltage | 1 | |
| 23 | 91-516 | BRACKET - box (top) | 1 | |
| 24 | 91-514 | REINFORCEMENT - box (top) | 1 | |
| 25 | 91-515 | BRACKET - box (bottom) | 1 | |
| 26 | 91-513 | REINFORCEMENT - box (bottom) | 1 | |
| 55-1587 | SCREW - box | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-3059 | NUT - captive (ss) | 6 | ||
| 55-4966 | NUT - captive (szn) | 4 | ||
| 27 | 44-6895 | DIODE - assembly | 2 | |
| 28 | 33-2921 | GASKET - linestarter | 1 |
