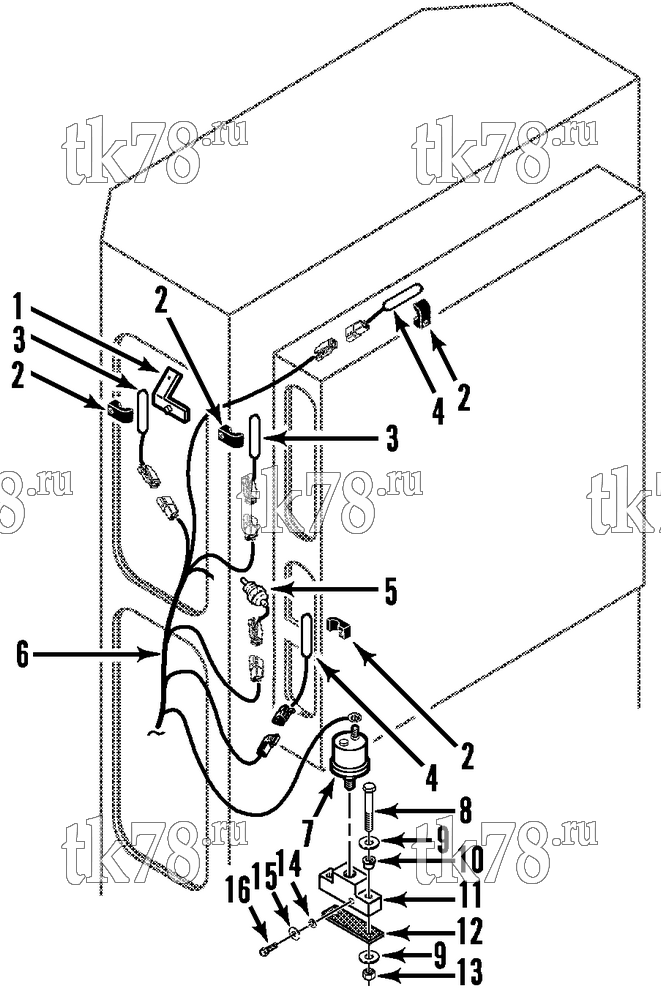

Установкa Thermo King Super-II SR, SR+ & MAX TG VI w/se 2.2 Engine схема SENSORS & HARNESS – 113A7
Обновление от: 5/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-4316 | BRACKET - sensor | 1 | |
| 2 | 55-6388 | CLAMP - sensor | 4 | |
| 55-2979 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 3 | 40-975 | SENSOR - temperature (ambient & evaporator coil, ungraded) | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 4 | 40-974 | KIT - sensor (discharge & return air) | 2 | |
|
40-974 OEM | Датчик температуры к-т, калиброванный | 25 620 ₽ |
|
|
10-40-974 | Датчик температуры к-т, калиброванный | 4 660 ₽ |
|
| 5 | 41-7068 | SENSOR - engine coolant temperature (SR) | 1 | |
|
10-41-7068 | Датчик температуры двигателя, SB-III/SMX/SL | 14 090 ₽ |
|
| 44-6534 | SENSOR - coolant temperature (SR+) | 1 | ||
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 6 | 41-179 | HARNESS - sensor (SR, see 112G9) | 1 | |
| 41-1154 | HARNESS - sensor (SR+ & TG VI, see 139G5) | 1 | ||
| 41-2298 | HARNESS - sensor (RMN-II SR+, see 143B10) | 1 | ||
| 41-4438 | HARNESS - sensor (Super-II 100 30 SR+ MPVI, see 169D7) | 1 | ||
| 41-5164 | HARNESS - sensor (S-II 190 30 SR, see 180A8) | 1 | ||
| 7 | 44-8883 | SENSOR - oil pressure transducer | 1 | |
|
10-44-8883 | Сенсор давления масла, SB/SB-III/SMX-II/SL/SLe/TS-Series (SR) | 9 810 ₽ |
|
|
PP-44-8883 | Сенсор давления масла, SB/SB-III/SMX-II/SL/SLe/TS-Series (SR) | 2 930 ₽ |
|
| 8 | 55-3031 | SCREW - elbow | 2 | |
| 9 | 55-2001 | FLATWASHER | 4 | |
| 10 | 55-3006 | WASHER - insulating (before 11/95) | 2 | |
| 55-7616 | WASHER - insulating (11/95 & after) | 2 | ||
| 11 | 55-4496 | ELBOW - flange | 1 | |
| 12 | 33-2458 | MAT - isolator (oil pressure sensor, 11/95 & after) | 1 | |
| 13 | 55-4560 | NUT | 2 | |
| 14 | 55-2998 | LOCKWASHER (internal tooth) | 1 | |
| 15 | 55-3013 | FLATWASHER | 1 | |
| 16 | 55-3515 | SCREW - terminal | 1 |
