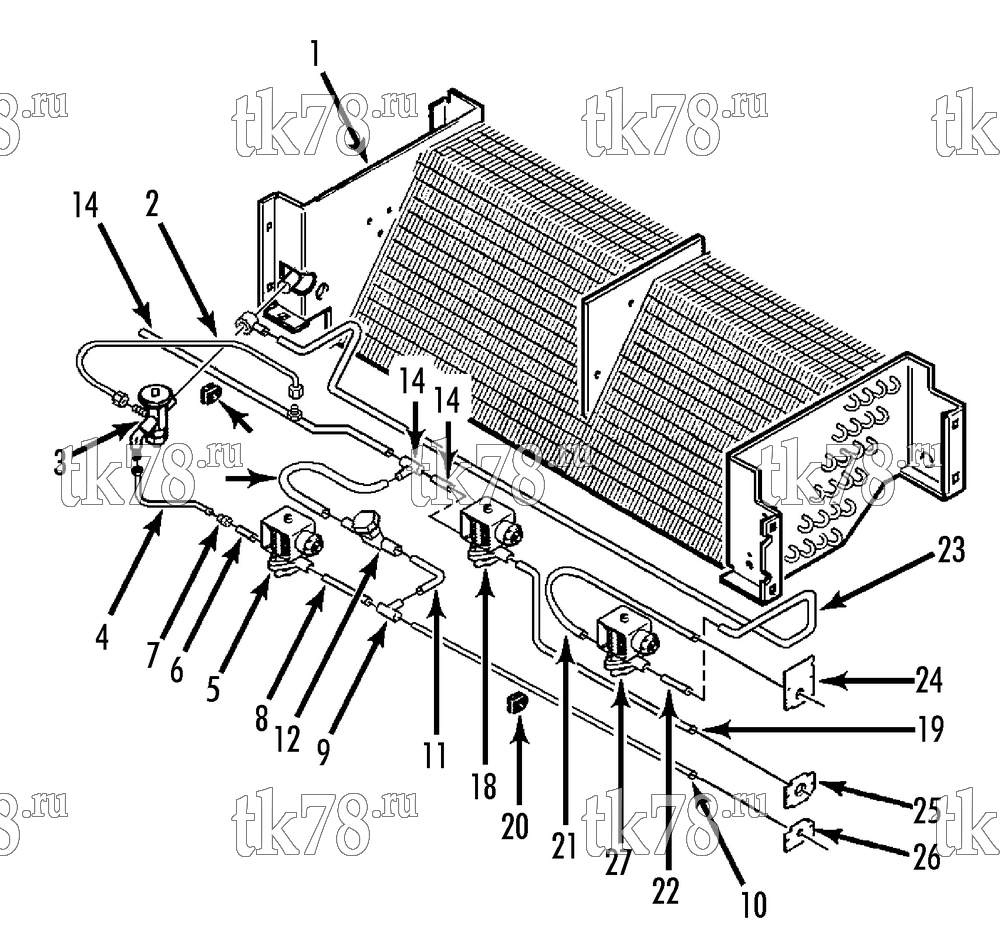

Установкa Thermo King Super-II MAX w/di 2.2 Engine схема EVAPORATOR - REFRIGERATION ECT – 91A14
Обновление от: 5/28/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-877 | COIL - evaporator (see 91B1) | 1 | |
| 55-2977 | SCREW - coil to housing | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 2 | 66-4993 | TUBE - equalizer | 1 | |
| 3 | 66-4903 | VALVE - expansion | 1 | |
| 66-5336 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 91-764 | BRACKET - valve | 1 | ||
| 55-2977 | SCREW - valve | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-3059 | NUT - captive | 1 | ||
| 4 | 66-4994 | TUBE - solenoid to expansion valve | 1 | |
| 5 | 66-3693 | VALVE - solenoid (liquid/defrost) | 1 | |
| 44-7301 | COIL - solenoid | 1 | ||
| 60-169 | KIT - valve repair | 1 | ||
| 33-285 | GROMMET (1/4 id) | 2 | ||
| 99-261 | CONNECTOR - cable | 2 | ||
| 6 | 66-5377 | TUBE - solenoid to defrost | 1 | |
| 7 | 55-2865 | BUSHING (1/2 x 3/8) | 1 | |
| 8 | 66-5538 | TUBE - liquid | 1 | |
| 9 | 66-622 | TEE | 1 | |
| 10 | 66-5539 | TUBE - plate to tee | 1 | |
| 11 | 66-5439 | TUBE - tee to check valve | 1 | |
| 12 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 55-1464 | ELBOW | 1 | ||
| 13 | 66-5438 | TUBE - check valve to tee | 1 | |
| 14 | 66-5436 | TUBE | 1 | |
| 66-874 | FITTING | 1 | ||
| 15 | 91-758 | CLAMP - tube (5/8) | 1 | |
| 16 | 66-620 | TEE | 1 | |
| 17 | 66-5540 | TUBE - tee to solenoid | 1 | |
| 18 | 66-5128 | VALVE - solenoid (see 110A4) | 1 | |
| 19 | 66-5437 | TUBE - solenoid to plate | 1 | |
| 20 | 91-759 | CLAMP - tube (1/2) | 1 | |
| 55-6388 | CLAMP - tube (3/8) | 1 | ||
| 55-3675 | SCREW - clamps | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-3059 | NUT - captive | 3 | ||
| 21 | 66-4998 | TUBE - solenoid to defrost plate | 1 | |
| 22 | 55-3627 | COUPLING - solenoid to defrost tube | 1 | |
| 23 | 66-5000 | TUBE - defrost | 1 | |
| 91-757 | BRACKET - defrost tube holddown | 1 | ||
| 55-1587 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-3059 | NUT - captive | 1 | ||
| 24 | 91-773 | PLATE - support (defrost tube) | 1 | |
| 66-5003 | TUBE - defrost plate | 1 | ||
| 25 | 91-771 | PLATE - support (suction tube) | 1 | |
| 66-5379 | TUBE - suction plate | 1 | ||
| 26 | 91-772 | PLATE - support (liquid tube) | 1 | |
| 66-5002 | TUBE - liquid plate | 1 | ||
| 55-2991 | SCREW - plate | 6 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT | 6 | ||
| 27 | 66-5744 | VALVE - defrost (see 116G14) | 1 |
