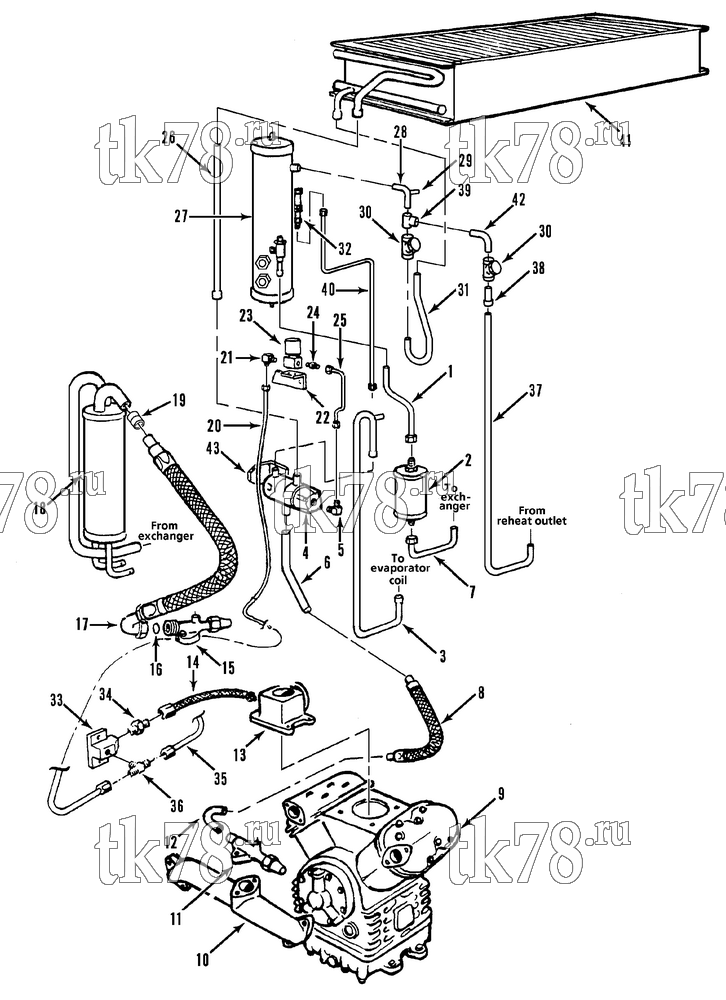

Установкa Thermo King Super-II MAX w/di 2.2 Engine схема REFRIGERATION - CONDENSER DEHUMIDIFIER (Before 10/91) – 87B2
Обновление от: 1/30/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-4757 | TUBE - dehydrator | 1 | |
| 2 | 66-4900 | DEHYDRATOR (see 104D6) | 1 | |
|
10-66-4900 | Дегидратор, SB-II/III | 3 610 ₽ |
|
| 3 | 66-4755 | TUBE - 3-way to defrost | 1 | |
| 66-874 | FITTING | 1 | ||
| 4 | 66-4975 | VALVE - 3-way (see 86G5) | 1 | |
| 5 | 55-308 | ELBOW | 1 | |
| 6 | 66-5983 | TUBE - vibrasorber to 3-way | 1 | |
| 7 | 66-4761 | TUBE - dehydrator to exchanger | 1 | |
| 8 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 9 | N/A | COMPRESSOR (see 72A12) | 1 | |
| 10 | 22-735 | MANIFOLD - discharge (see 86C6) | 1 | |
|
10-22-735 | Коллектор компрессора X430 | 36 730 ₽ |
|
| 11 | 66-129 | VALVE - discharge (see 86C6) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 12 | 66-4988 | TUBE - valve to vibrasorber | 1 | |
| 13 | 66-5936 | VALVE - throttling (see 86C6) | 1 | |
| 14 | 66-5176 | HOSE - convertible units | 1 | |
| 15 | 66-4546 | VALVE - suction (see 86C6) | 1 | |
|
10-66-4546 | Резьбовой клапан (Threaded Service Valve) | 15 910 ₽ |
|
| 16 | 33-1491 | O-RING | 1 | |
|
10-33-1491 | Уплотнитель | 530 ₽ |
|
| 17 | 66-4990 | VIBRASORBER - suction (convertible unit) | 1 | |
|
10-66-4990 | Трубка армированная всасывающая, Nut 31in | 35 520 ₽ |
|
| 18 | 67-876 | TANK - accumulator (convertible units, see note) | 1 | |
| 19 | 55-3112 | COUPLING | 1 | |
| 20 | 66-4760 | TUBE - pilot | 1 | |
| 21 | 55-4489 | ELBOW | 1 | |
| 22 | 99-9921 | BRACKET | 1 | |
| 55-3029 | SCREW - solenoid | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 23 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 24 | 55-459 | COUPLING | 2 | |
| 25 | 66-4759 | TUBE - pilot solenoid to 3-way | 1 | |
| 26 | 66-4754 | TUBE - 3-way to condenser | 1 | |
| 27 | 67-1181 | TANK - receiver (see 128G9) | 1 | |
| 28 | 66-5181 | TUBE - receiver to check valve | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 29 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 30 | 66-3655 | VALVE - check (see 9G12) | 2 | |
| 31 | 66-5183 | TUBE - coil to check valve | 1 | |
| 32 | 66-5501 | VALVE - check | 1 | |
| 33 | 55-4496 | ELBOW - flange | 1 | |
| 55-1587 | SCREW - elbow | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 34 | 55-459 | COUPLING | 1 | |
| 35 | 66-4775 | TUBE - compound gauge | 1 | |
| 36 | 55-4522 | TEE | 1 | |
| 37 | 66-5172 | TUBE - reheat (evaporator to check valve) | 1 | |
| 38 | 66-5182 | TUBE - to check valve | 1 | |
| 39 | 66-620 | TEE | 1 | |
| 40 | 66-5173 | TUBE - receiver to reheat solenoid | 1 | |
| 41 | 67-1457 | COIL - condenser | 1 | |
| 33-1821 | STRIP - sealing (17.5 lg) | 1 | ||
| 33-1822 | STRIP - sealing (19.5 lg) | 1 | ||
| 33-1823 | STRIP - sealing (41 lg) | 1 | ||
| 55-2977 | SCREW - coil (1/4-20 x 1) | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4974 | NUT - captive | 6 | ||
| 55-2969 | SCREW - coil (5/16-18 x 1) | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-4976 | NUT | 2 | ||
| 42 | 66-5184 | TUBE - check valve to tee | 1 | |
| 43 | 99-9920 | BRACKET - 3-way valve | 1 | |
| 55-2115 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 |
