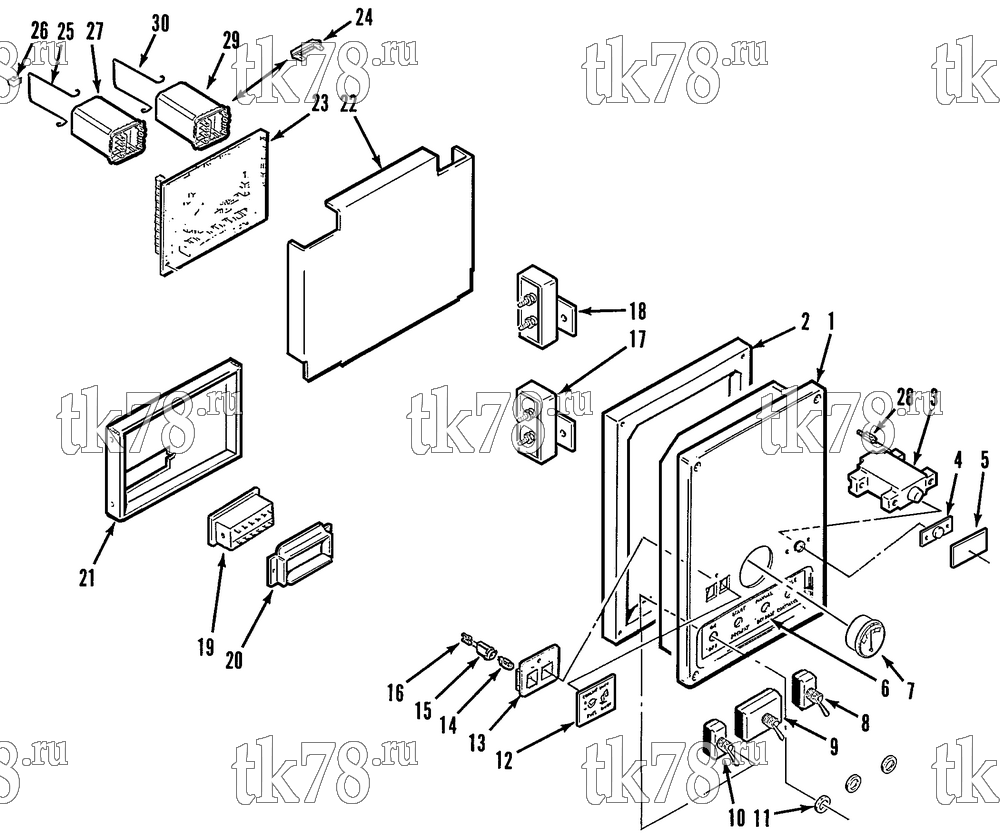

Установкa Thermo King Super-II MAX w/di 2.2 Engine схема METAL SWITCH PANEL (w/o CYCLE SENTRY) – 86C10
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1353 | PANEL - switch (metal, for plastic switch panel see 87A13) | 1 | ||
| 1 | 91-131 | PANEL - switch | 1 | |
| 2 | 33-1833 | GASKET - panel | 1 | |
| 3 | 40-1082 | SWITCH - high temperature cutout | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 55-6032 | SCREW - switch | 2 | ||
| 4 | 33-1835 | SEAL - switch | 1 | |
| 5 | 91-134 | NAMEPLATE - Reset Switch | 1 | |
| 6 | 91-156 | NAMEPLATE - switch | 1 | |
| 7 | 44-3258 | AMMETER | 1 | |
| 44-3258 OEM | Амперметр, KD/MD/RD/TD-II / SB-II/III | 2 400 ₽ |
|
|
| 8 | 44-1164 | SWITCH - defrost | 1 | |
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
| 9 | 44-4784 | SWITCH - preheat/start | 1 | |
| 10 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 11 | 55-5746 | WASHER - sealing (switches) | 3 | |
| 12 | 91-135 | NAMEPLATE - indicator lights | 1 | |
| 13 | 91-132 | HOUSING - light | 1 | |
| 55-4560 | NUT - housing | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 14 | 44-3711 | BULB - light | 1 | |
| 15 | 44-6462 | SOCKET - bulb | 1 | |
| 16 | 44-7054 | TERMINAL - bulb | 2 | |
| 17 | 44-5512 | BREAKER - circuit (auto reset, 30 amp) | 1 | |
|
10-44-5512 | Автоматический выключатель, 30A | 2 260 ₽ |
|
| 18 | 44-6146 | BREAKER - circuit (manual reset, 40 amp/37 amp alternator) | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 44-7996 | BREAKER - circuit (auto reset, 50 amp/65 amp alternator) | 1 | ||
|
30-44-7996 | Предохранитель 50А | 1 140 ₽ |
|
| 55-111 | SCREW - circuit breaker | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2752 | NUT | 2 | ||
| 19 | 44-7524 | PLUG - connector (14-pin) | 1 | |
| 55-103 | SCREW - plug | 2 | ||
| 20 | 99-5316 | BRACKET - shallow | 1 | |
| 55-3588 | RIVET - bracket | 2 | ||
| 21 | 91-131 | PANEL - connectors | 1 | |
| 55-111 | SCREW - panel | 4 | ||
| 22 | 91-155 | PLATE - printed circuit board | 1 | |
| 55-111 | SCREW - plate | 4 | ||
| 23 | 44-9114 | BOARD - printed circuit | 1 | |
| 55-3355 | SCREW - board | 4 | ||
| 24 | 44-7522 | JUMPER - defrost timer | 1 | |
| 25 | 99-2027 | SPRING - holddown (defrost relay) | 1 | |
| 55-3035 | RIVET - holddown | 4 | ||
| 26 | 55-2771 | CLAMP - holddown | 2 | |
| 27 | 44-3186 | RELAY - defrost | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 28 | 91-137 | STANDOFF - high temperature switch | 1 | |
| 29 | 44-7531 | TIMER - defrost | 1 | |
|
10-44-7531 | Таймер оттайки | 17 150 ₽ |
|
| 30 | 99-8475 | HOLDDOWN - timer | 1 |
