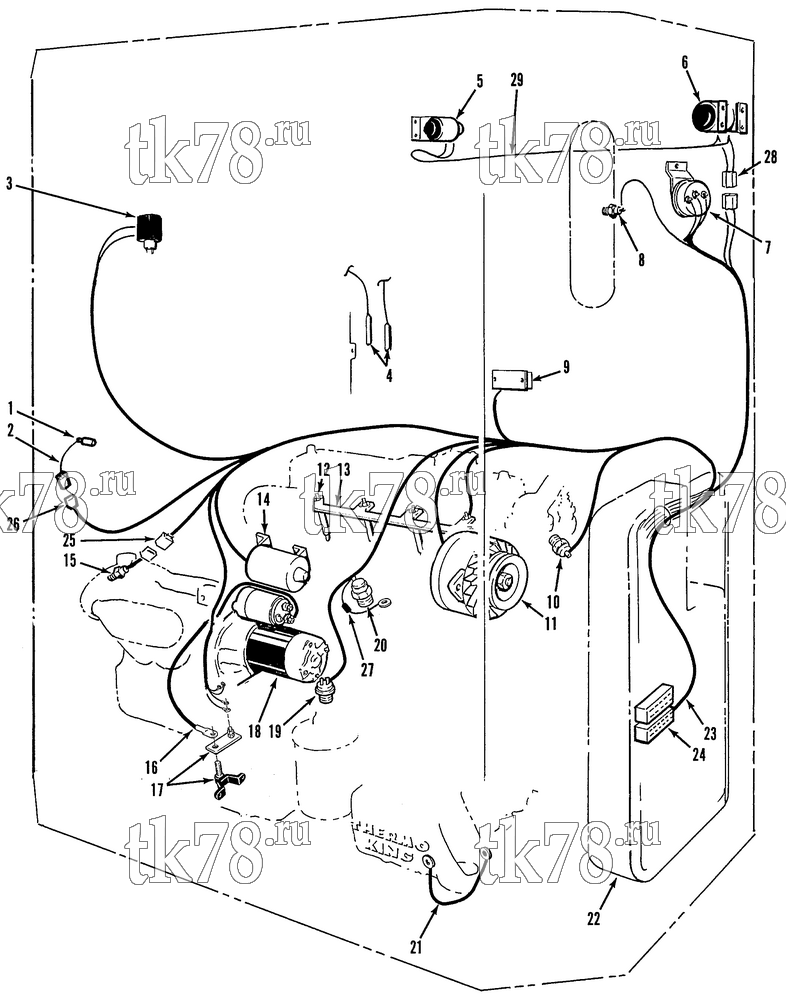

Установкa Thermo King Super-II MAX w/di 2.2 Engine схема ELECTRICAL COMPONENTS (SUPER-II 30) – 81A5
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7482 | PROBE - fuel | 1 | |
| 2 | 44-7483 | HARNESS - fuel sensor (see 80F7) | 1 | |
| 44-6292 | CONNECTOR - harness | 1 | ||
| 3 | 66-2009 | VALVE - pilot solenoid (see 80F2) | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 4 | 44-5234 | SENSOR | 1 | |
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 44-5569 | SENSOR (w/ red bandwrap) | 1 | ||
| 5 | 44-2823 | SOLENOID - defrost (see 80F4) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 6 | 44-6544 | SOLENOID - defrost (see 80F4) | 1 | |
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 7 | 44-6241 | SWITCH - air (see 80F13) | 1 | |
| 8 | 44-6534 | SENSOR - coolant level (see 80F8) | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 9 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-4507 | SCREW - switch & ground | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 55-5761 | LOCKWASHER - internal tooth | 1 | ||
| 10 | 44-3018 | SWITCH - coolant temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 11 | 41-2195 | ALTERNATOR (37 amp, model EA, see 80C6) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR) | 1 | ||
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 12 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 13 | 44-6602 | CONNECTOR - glow plug | 1 | |
| 14 | 44-6544 | SOLENOID - throttle (see 70B6) | 1 | |
|
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 15 | 44-5833 | SWITCH - hpco (R12 convertible) | 1 | |
| 44-5834 | SWITCH - only | 1 | ||
| 44-5835 | CONNECTOR | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 41-3670 | SWITCH - hpco (R502 convertible) | 1 | ||
| 16 | 44-6741 | CABLE - starter | 1 | |
| 55-3227 | NUT - cable | 2 | ||
| 55-416 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 17 | 44-7997 | TERMINAL - battery (see 86G6) | 1 | |
| 18 | 45-2325 | STARTER | 1 | |
| 19 | 41-7063 | SWITCH - oil pressure | 1 | |
| 10-41-7063 | Датчик давления масла, SB-XXX/SB-III | 3 280 ₽ |
|
|
| 20 | 44-6727 | VALVE - solenoid (see engine section) | 1 | |
|
10-44-6727 | Топливный соленоид, SB-II/III / SMX/SMX-II | 4 300 ₽ |
|
| 21 | 44-7529 | HARNESS - ground | 1 | |
| 55-2977 | SCREW - harness to frame | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-2699 | LOCKWASHER (internal tooth) | 1 | ||
| 55-4953 | NUT | 2 | ||
| 55-4998 | SCREW - harness to oil sump | 1 | ||
| 55-698 | LOCKWASHER (internal tooth) | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 22 | N/A | BOX - control (metal, see 81A3) | 1 | |
| N/A | BOX - control (plastic, see 86C9) | 1 | ||
| 23 | 44-7517 | HARNESS - main (see 81A3) | 1 | |
| 44-7685 | HARNESS - main (EMEIA, 81A3) | 1 | ||
| 24 | 44-7523 | SOCKET (14-pin) | 1 | |
| 44-5220 | COVER - connector | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 25 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 26 | 44-6451 | CONNECTOR - fuel sensor | 1 | |
| 27 | 44-2756 | DIODE - silicone | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 55-5580 | SCREW - diode | 1 | ||
| 55-4608 | LOCKWASHER | 1 | ||
| 28 | 44-7624 | HARNESS - damper solenoid | 1 | |
| 44-5835 | CONNECTOR (2-pin, male) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 29 | 44-7528 | HARNESS - solenoid jumper | 1 |
