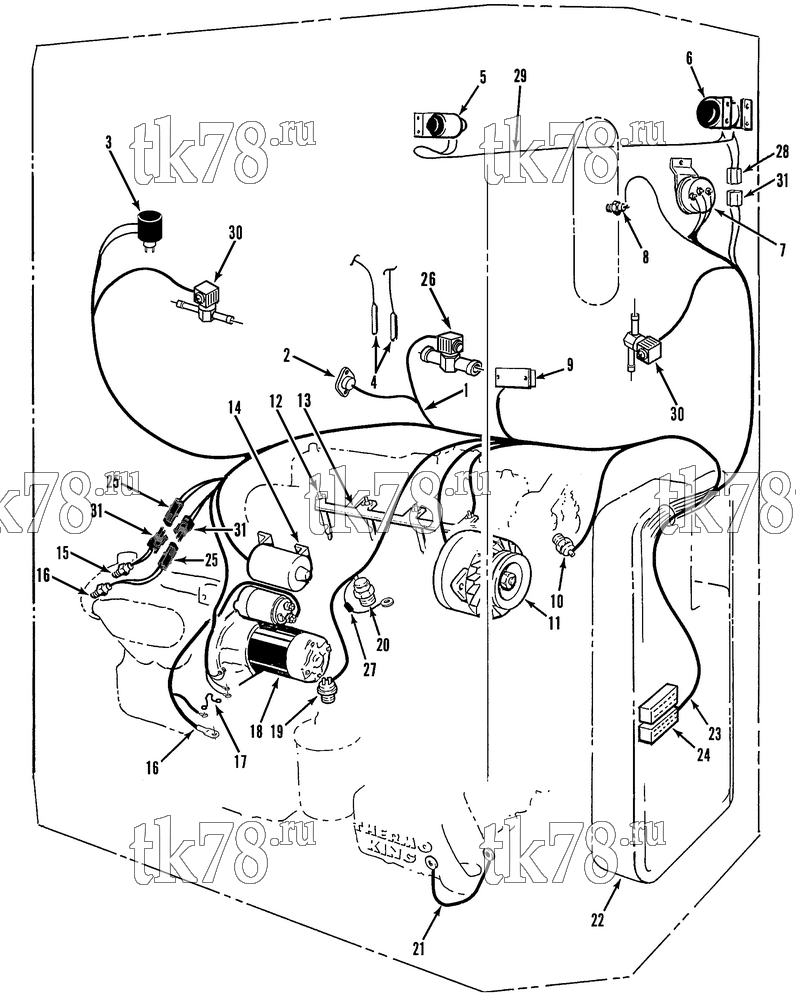

Установкa Thermo King Super-II MAX w/di 2.2 Engine схема ELECTRICAL COMPONENTS (SUPER-II TCI) – 103D6
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-8444 | HARNESS - evaporator | 1 | |
| 44-7880 | CONNECTOR - shroud (4-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 4 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 2 | 44-7892 | SWITCH - high temperature cutout | 1 | |
| 3 | 66-5316 | VALVE - pilot solenoid (bypass, see 102D9) | 1 | |
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 4 | 44-9655 | SENSOR - thermostat | 1 | |
| 5 | 44-2823 | SOLENOID - defrost (see 80F4) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 6 | 44-6544 | SOLENOID - defrost (see 80F4) | 1 | |
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 7 | 44-6241 | SWITCH - air (see 80F13) | 1 | |
| 8 | 44-6534 | SENSOR - coolant level (see 91B2) | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 9 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-4507 | SCREW - switch & ground | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 55-5761 | LOCKWASHER - internal tooth | 1 | ||
| 10 | 44-3018 | SWITCH - coolant temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 11 | 45-2256 | ALTERNATOR (65 amp, see 242F5) | 1 | |
|
10-45-2590 | Генератор 65A, UT800/1200 | 13 870 ₽ |
|
|
10-41-6781 | Генератор 65A, SB-XXX/SMX/SMX-II/SL/SLe/SLX/SLXe SB-II/III | 13 840 ₽ |
|
| 41-8463 | ALTERNATOR (65 amp, Standard Life Plus, CW) | 1 | ||
|
|
10-45-2590 | Генератор 65A, UT800/1200 | 13 870 ₽ |
|
|
|
10-41-6781 | Генератор 65A, SB-XXX/SMX/SMX-II/SL/SLe/SLX/SLXe SB-II/III | 13 840 ₽ |
|
| 845-2256 | ALTERNATOR (65 amp remanufactured) | 1 | ||
| 12 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 13 | 44-6602 | CONNECTOR - glow plug | 1 | |
| 14 | 44-9181 | SOLENOID - throttle (see 91A5) | 1 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 5 860 ₽ |
|
| 15 | 41-3670 | SWITCH - hpco (opens 450 lbs) | 1 | |
| 16 | 44-7914 | SWITCH - hpco (opens 300 lbs) | 1 | |
|
44-7914 OEM | Выключатель | 7 310 ₽ |
|
| 44-5834 | SWITCH - only | 1 | ||
| 17 | 44-8244 | FUSE LINK (see 90G12) | 1 | |
|
10-44-8244 | Провод предохранителя | 1 790 ₽ |
|
| 18 | 45-2325 | STARTER | 1 | |
| 19 | 41-7063 | SWITCH - oil pressure | 1 | |
| 10-41-7063 | Датчик давления масла, SB-XXX/SB-III | 3 280 ₽ |
|
|
| 20 | 44-6727 | VALVE - solenoid (see engine section) | 1 | |
|
10-44-6727 | Топливный соленоид, SB-II/III / SMX/SMX-II | 4 300 ₽ |
|
| 21 | 44-7529 | HARNESS - ground | 1 | |
| 55-2977 | SCREW - harness to frame | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-2699 | LOCKWASHER (internal tooth) | 1 | ||
| 55-4953 | NUT | 2 | ||
| 55-4998 | SCREW - harness to oil sump | 1 | ||
| 55-698 | LOCKWASHER (internal tooth) | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 22 | N/A | BOX - control (see 102G3) | 1 | |
| 23 | 44-8446 | HARNESS - main (see 90G7) | 1 | |
| 24 | 44-7523 | SOCKET (14-pin) | 1 | |
| 44-5220 | COVER - connector | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 25 | 44-5838 | CONNECTOR - hpco | 1 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 26 | 66-6272 | VALVE - solenoid (liquid/defrost) | 2 | |
| 44-3931 | COIL - valve | 2 | ||
| 44-5835 | CONNECTOR - valve | 2 | ||
| 44-5883 | TERMINAL - male (18-20 ga) | 4 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 4 | ||
| 55-3029 | SCREW - valve | 4 | ||
| 27 | 44-2756 | DIODE - silicone | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 55-5580 | SCREW - diode | 1 | ||
| 55-4608 | LOCKWASHER | 1 | ||
| 28 | 44-9366 | HARNESS - damper solenoid | 1 | |
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 4 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 29 | 44-7528 | HARNESS - solenoid jumper | 1 | |
| 30 | 66-6127 | VALVE - solenoid (suction, see117A1) | 1 | |
| 31 | 44-5835 | CONNECTOR | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 |
