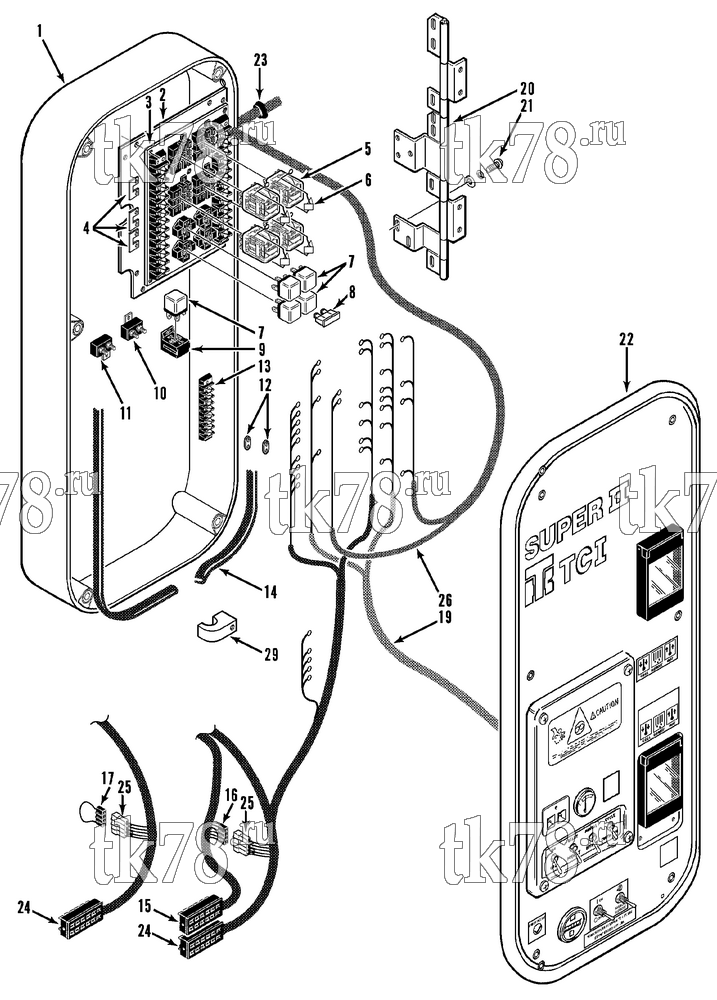

Установкa Thermo King Super-II MAX w/di 2.2 Engine схема CONTROL BOX ASSEMBLY (TCI) – 102G3
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4083 | BOX - control | 1 | |
| 2 | 91-3487 | PANEL - printed circuit board | 1 | |
| 55-3099 | SCREW - panel | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 3 | 41-141 | BOARD - printed circuit (Multi-Temp) | 1 | |
| 44-3521 | DIODE - printed circuit board | 2 | ||
| 4 | 44-6933 | JUMPER | 5 | |
| 55-4576 | SCREW - board | 8 | ||
| 55-2998 | LOCKWASHER | 8 | ||
| 5 | 44-3186 | RELAY (3pdt) | 4 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 6 | 99-2027 | SPRING - holddown | 4 | |
| 55-2771 | CLAMP - speednut | 4 | ||
| 55-2270 | RIVET - holddown | 8 | ||
| 55-3550 | FLATWASHER | 8 | ||
| 7 | 41-895 | RELAY - mini (remote fan) | 5 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 8 | 44-9344 | FUSE | 1 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 9 | 44-5537 | SOCKET - relay | 1 | |
| 55-3015 | SCREW - socket | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 10 | 44-5808 | BREAKER - circuit (manual reset, 12A) | 1 | |
| 11 | 44-6146 | BREAKER - circuit (manual reset, 40A) | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 12 | 44-1458 | JUMPER | 1 | |
| 13 | 91-3488 | NAMEPLATE | 1 | |
| 14 | 33-2384 | GASKET | 1 | |
| 15 | 44-9308 | HARNESS - Cycle Sentry | 1 | |
| 44-5310 | CONNECTOR (15-pin) | 1 | ||
| 44-5220 | COVER - connector | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 16 | 44-5719 | CONNECTOR - main harness (8-pin) | 1 | |
| 17 | 44-7625 | CONNECTOR - jumper (units w/o Cycle Sentry) | 1 | |
| 18 | 91-1375 | CLAMP - harness | 3 | |
| 55-2977 | SCREW - clamp (1 in lg) | 1 | ||
| 55-3121 | SCREW - clamp (1-1/2 in lg) | 1 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 19 | 44-9309 | HARNESS - rear evaporator (switch & lights) | 1 | |
| 20 | 91-3597 | HINGE - control box | 1 | |
| 21 | 55-1587 | SCREW - hinge | 11 | |
| 55-2086 | FLATWASHER | 11 | ||
| 55-1800 | LOCKWASHER | 11 | ||
| 22 | N/A | PANEL - control box (see 102G4) | 1 | |
| 55-6351 | SCREW - panel | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 23 | 33-2235 | GROMMET - harness | 1 | |
| 24 | 41-1776 | HARNESS - main (see 91A7) | 1 | |
| 25 | 44-5718 | CONNECTOR - Cycle Sentry harness (8-pin) | 1 | |
| 26 | 44-9310 | HARNESS - rear evaporator (see 103A13) | 1 |
