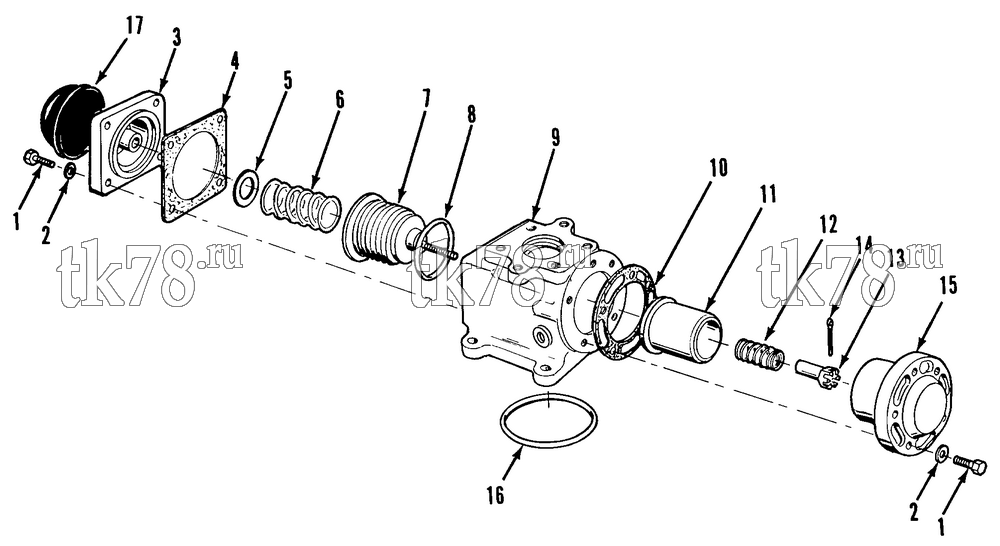

Установкa Thermo King Super-II 30 MAX w/se 2.2 Engine схема THROTTLING VALVE ASSEMBLY – 76F12
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 66-5933 | VALVE - throttling (20 psi, 30s) | 1 | ||
| 66-5932 | VALVE - throttling (18 psi, 50s) | 1 | ||
| 1 | 55-2969 | SCREW - plate | 9 | |
| 2 | 55-371 | FLATWASHER | 9 | |
| 3 | 66-3613 | PLATE - bellows | 1 | |
| 4 | 33-123 | GASKET - end plate | 1 | |
| 5 | 66-157 | WASHER - adjusting | 3-5 | |
| 6 | 66-520 | SPRING - bellows (18 psi, 50s) | 1 | |
| 66-1116 | SPRING - bellows (20 psi, 30s) | 1 | ||
| 7 | 60-298 | KIT - repair, bellows (throttling valve) | 1 | |
|
10-60-298 | Р/к клапана | 34 830 ₽ |
|
|
PP-60-298 | Р/к клапана | 17 860 ₽ |
|
| 8 | 33-408 | O-RING | 1 | |
|
10-33-408 | Прокладка клапана, X214/418/426/430 | 360 ₽ |
|
| 9 | 61-5337 | HOUSING - valve | 1 | |
| 10 | 33-143 | GASKET - piston housing | 1 | |
|
10-33-143 | Прокладка компрессора | 1 260 ₽ |
|
| 11 | 22-740 | PISTON | 1 | |
| 22-740 OEM | Поршень клапана - регулятора давления | 7 870 ₽ |
|
|
| 12 | 66-176 | SPRING - piston | 1 | |
| 13 | 66-116 | NUT - adjusting | 1 | |
| 14 | 55-585 | PIN - cotter | 1 | |
| 15 | 66-1388 | HOUSING - piston | 1 | |
| 16 | 33-1221 | O-RING - valve to compressor | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 55-896 | FLATWASHER | 4 | ||
| 55-2381 | SCREW - housing | 4 | ||
| 17 | 66-3612 | CAP - valve (rubber, R502) | 1 |
