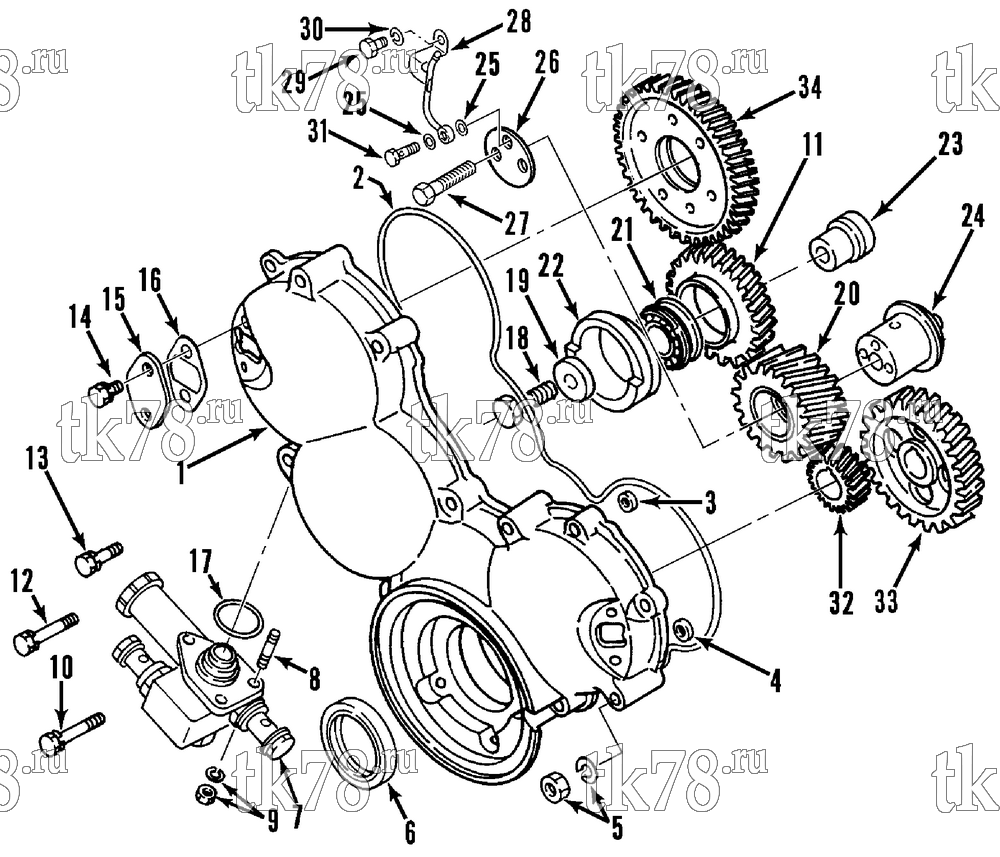

Установкa Thermo King Super-II 30 MAX w/se 2.2 Engine схема GEAR CASE COVER (se 2.2, 2/96 to 1/99) – 134C1
Обновление от: 4/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-8848 | CASE - gear (2/96 & after) | 1 | |
| 2 | 33-2170 | O-RING - case | 1 | |
|
10-33-2170 | Кольцо уплотнительное, Gear case | 2 930 ₽ |
|
| 3 | 33-713 | O-RING - case | 1 | |
|
10-33-713 | Набор прокладок, gear case, Isuzu 2.2 D.I. | 780 ₽ |
|
| 4 | 33-1638 | O-RING - gear case | 1 | |
|
10-33-1638 | Прокладка, gear case, Isuzu 2.2 D.I. | 540 ₽ |
|
| 5 | 55-2433 | NUT - case | 1 | |
| 55-790 | LOCKWASHER | 1 | ||
| 55-5453 | STUD | 1 | ||
| 6 | 33-2881 | SEAL - crankshaft | 1 | |
|
10-33-2881 | Сальник коленвала передний, Isuzu 2.2 DI (D201) / C201 | 2 780 ₽ |
|
| PP-33-2881 | Сальник коленвала передний, Isuzu 2.2 DI (D201) / C201 | 1 060 ₽ |
|
|
| 7 | 11-7433 | PUMP - fuel | 1 | |
|
11-7433 OEM | Топливный насос подкачки, SB/SB-III/SMX/SMX-II/SL/SLe/SLX/SLXe | 24 100 ₽ |
|
|
PP-11-7433 | Топливный насос подкачки, SB/SB-III/SMX/SMX-II/SL/SLe/SLX/SLXe | 6 680 ₽ |
|
| 8 | 51-1770 | STUD - fuel | 3 | |
| 9 | 55-5475 | NUT - pump | 3 | |
| 55-1567 | LOCKWASHER | 3 | ||
| 10 | 55-6945 | SCREW - case to cylinder block (60 mm lg) | 6 | |
| 11 | 11-9181 | GEAR - idler B (includes items 21 & 22) | 1 | |
| 12 | 51-642 | SCREW - case to cylinder block (30 mm lg) | 3 | |
| 13 | 55-6944 | SCREW - case to cylinder block (45 mm lg) | 2 | |
| 14 | 55-5474 | SCREW - cover | 4 | |
| 15 | 11-5798 | COVER - timing | 2 | |
| 16 | 33-4345 | GASKET - cover | 2 | |
| 17 | 33-1641 | O-RING | 1 | |
|
20-33-1641 | Уплотнитель | 1 150 ₽ |
|
| 18 | 55-5491 | SCREW - idler shaft | 1 | |
| 19 | 11-4048 | WASHER | 1 | |
| 20 | 11-8853 | GEAR - idler A | 1 | |
| 21 | 11-5875 | BEARING | 1 | |
| 22 | 11-5899 | CAM - pump | 1 | |
| 23 | 11-5845 | SHAFT | 1 | |
| 24 | 11-5841 | SHAFT - idler | 1 | |
| 25 | 33-796 | GASKET - joint | 2 | |
| 26 | 11-5844 | COLLAR - thrust | 1 | |
| 27 | 55-5559 | SCREW - collar | 2 | |
| 28 | 11-5857 | PIPE - oil | 1 | |
|
20-11-5857 | Масляная трубка, Isuzu 2.2 | 6 420 ₽ |
|
| 29 | 55-2462 | BOLT - pipe | 1 | |
| 30 | 55-5500 | LOCKWASHER | 1 | |
| 31 | 55-5499 | SCREW - eye | 1 | |
| 32 | 11-8852 | GEAR - crankshaft | 1 | |
| 33 | 11-8846 | GEAR - camshaft | 1 | |
| 34 | 11-8849 | GEAR - injection pump | 1 | |
| 30-262 | GASKET SET (see 80A6) | 1 | ||
|
10-30-262 | Набор прокладок двигателя Isuzu 2.2 DI (D201) | 24 300 ₽ |
|
| PP-30-262 | Набор прокладок двигателя Isuzu 2.2 DI (D201) | 14 620 ₽ |
|
