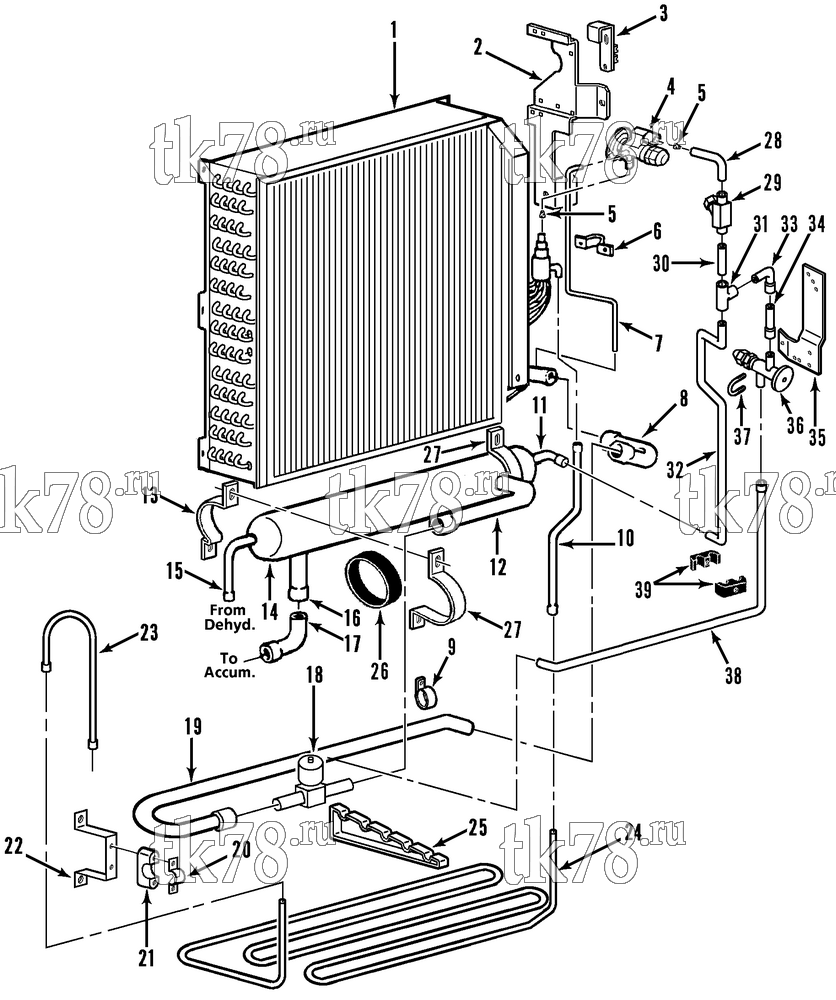

Установкa Thermo King Super-II 30 MAX w/se 2.2 Engine схема REFRIGERATION - EVAPORATOR (w/ MOD & THERMAX V) – 125D11
Обновление от: 3/7/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1463 | COIL - evaporator (see 105A11) | 1 | |
| 2 | 91-6636 | BRACKET - expansion valve | 1 | |
| 55-2977 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-4415 | NUT | 1 | ||
| 3 | 91-6637 | BRACKET - expansion valve | 1 | |
| 55-3675 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-4415 | NUT - captive | 1 | ||
| 4 | 66-7532 | VALVE - expansion | 1 | |
| 66-9378 | SCREEN - inlet | 1 | ||
| 66-3650 | ELEMENT - power | 1 | ||
| 5 | 66-6380 | SCREEN - filter (inlet) | 1 | |
| 66-4453 | SCREEN - filter (outlet) | 1 | ||
| 6 | 99-9908 | CLAMP - distributor | 1 | |
| 55-1587 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4415 | NUT | 2 | ||
| 7 | 66-5848 | TUBE - equalizer | 1 | |
| 8 | 55-3094 | ELBOW - suction | 1 | |
| 9 | 55-2509 | CLAMP - tube | 1 | |
| 10 | 66-4748 | TUBE - defrost to distributor | 1 | |
| 11 | 55-1464 | ELBOW | 1 | |
| 12 | 66-6246 | TUBE - valve to exchanger | 1 | |
| 13 | 91-2681 | BRACKET - exchanger (upper) | 2 | |
| 55-2969 | SCREW - bracket | 4 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT | 2 | ||
| 14 | 67-1275 | TANK - heat exchanger | 1 | |
| 15 | 66-5515 | TUBE - liquid | 1 | |
| 16 | 66-5514 | TUBE - suction | 1 | |
| 17 | 66-5854 | TUBE - exchanger to accumulator | 1 | |
| 18 | 66-7789 | VALVE - modulation (see 123A8) | 1 | |
| 19 | 66-6247 | TUBE - valve to elbow | 1 | |
| 20 | 91-1748 | CLAMP - suction tube | 2 | |
| 21 | 55-6020 | CLAMP (plastic) | 2 | |
| 55-3675 | SCREW - clamp | 4 | ||
| 55-4415 | NUT | 4 | ||
| 22 | 91-1762 | SUPPORT - check valve | 1 | |
| 55-2977 | SCREW - support | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 23 | 66-4749 | TUBE - 3-way to defrost | 1 | |
| 24 | 66-4745 | TUBE - defrost | 1 | |
| 25 | 91-3853 | BRACKET - defrost tube | 3 | |
| 55-2086 | FLATWASHER | 9 | ||
| 55-4953 | NUT | 9 | ||
| 26 | 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | |
| 27 | 91-2682 | BRACKET - exchanger (lower) | 2 | |
| 28 | 66-7674 | TUBE - check valve to expansion valve | 1 | |
| 29 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 30 | 66-7842 | TUBE - tee to valve | 1 | |
| 31 | 55-2181 | TEE - tube | 1 | |
| 32 | 66-7843 | TUBE - liquid line to tee | 1 | |
| 33 | 66-7844 | ELBOW | 1 | |
| 34 | 66-7672 | TUBE - elbow to tee | 1 | |
| 35 | 91-6638 | BRACKET - valve (TherMax) | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3059 | NUT | 4 | ||
| 36 | 66-7845 | VALVE - Thermax | 1 | |
| 66-6047 | SCREEN - inlet | 1 | ||
| 61-816 | ELEMENT - power | 1 | ||
| 37 | 55-5211 | U-BOLT | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 38 | 66-7846 | TUBE - valve to suction tube | 1 | |
| 39 | 91-1800 | CLAMP | 1 |
