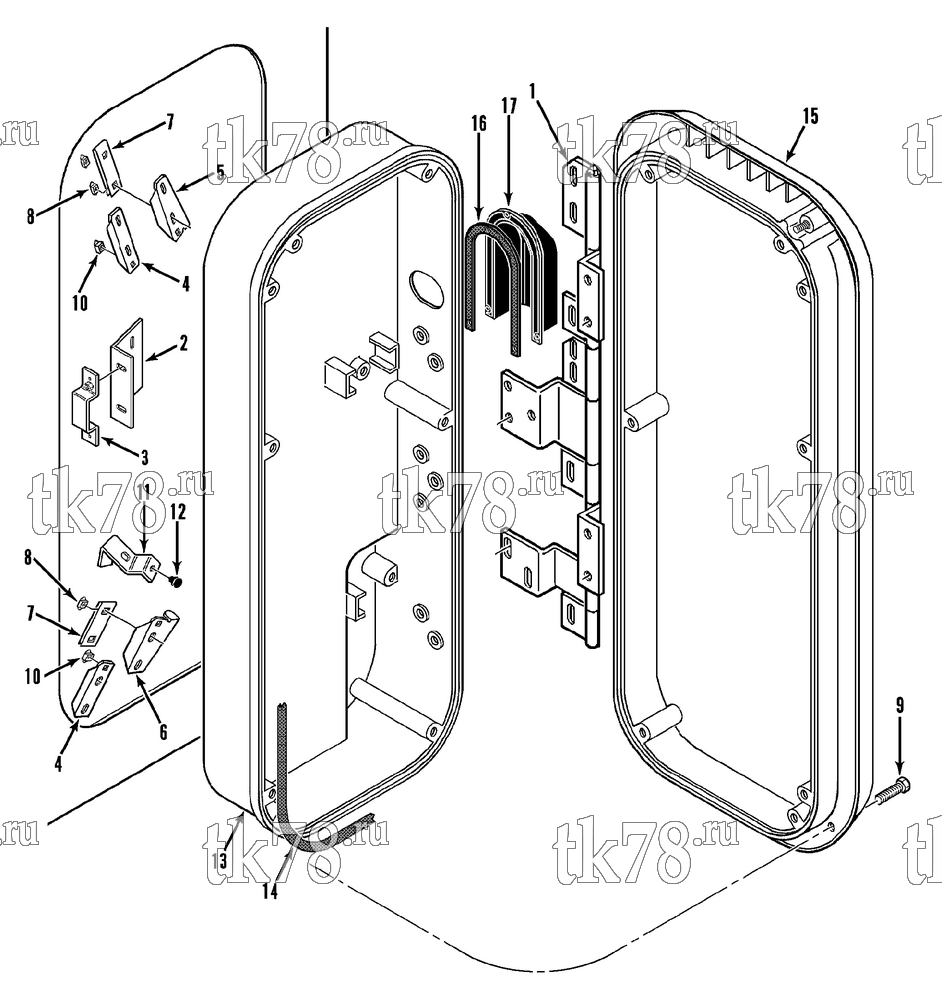

Установкa Thermo King Super-II 30 MAX w/se 2.2 Engine схема CONTROL BOX MOUNTING – 116F7
Обновление от: 9/30/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-142 | HINGE - metal box (w/ gauge cutaway) | 1 | |
| 91-946 | HINGE - plastic box (w/ gauge cutaway) | 1 | ||
| 91-3597 | HINGE - control box | 1 | ||
| 55-4580 | SCREW - hinge to frame | 6 | ||
| 55-1587 | SCREW - hinge to box | 4 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-4953 | NUT | 6 | ||
| 2 | 91-143 | BRACKET - control box (before 4/88) | 1 | |
| 3 | 91-392 | BRACKET - control box (before 4/88) | 1 | |
| 4 | 91-390 | ANGLE - control box support (4/88 thru 6/89) | 2 | |
| 5 | 91-1970 | ANGLE - control box support (6/89 & after) | 1 | |
| 6 | 91-1971 | ANGLE - control box support (6/89 & after) | 1 | |
| 55-1587 | SCREW - angle (3/4 lg) | A/R | ||
| 55-2957 | SCREW - angle (7/8 lg) | A/R | ||
| 55-2977 | SCREW - angle (1 lg) | A/R | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 7 | 91-1770 | CLIP - angle (6/89 thru 9/90) | 2 | |
| 8 | 55-3085 | NUT - captive (clip) | 4 | |
| 9 | 55-6039 | SCREW - cover | 2 | |
| 10 | 55-4974 | NUT - captive (cover) | 2 | |
| 11 | 91-1769 | STOP - control box | 1 | |
| 55-2991 | SCREW - stop | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 12 | 33-1435 | GROMMET - bumper | 1 | |
| 90-215 | PANEL - control box (incl hinge 91-3597 & hardware) | 1 | ||
| 13 | 98-4838 | BOX - control | 1 | |
| 14 | 33-2384 | GASKET - cover | 1 | |
| 15 | 98-4222 | COVER - control box | 1 | |
| 16 | 33-2429 | GASKET - cover | 1 | |
| 17 | 91-4503 | COVER - harness | 1 | |
| 55-1587 | SCREW - cover | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 |
