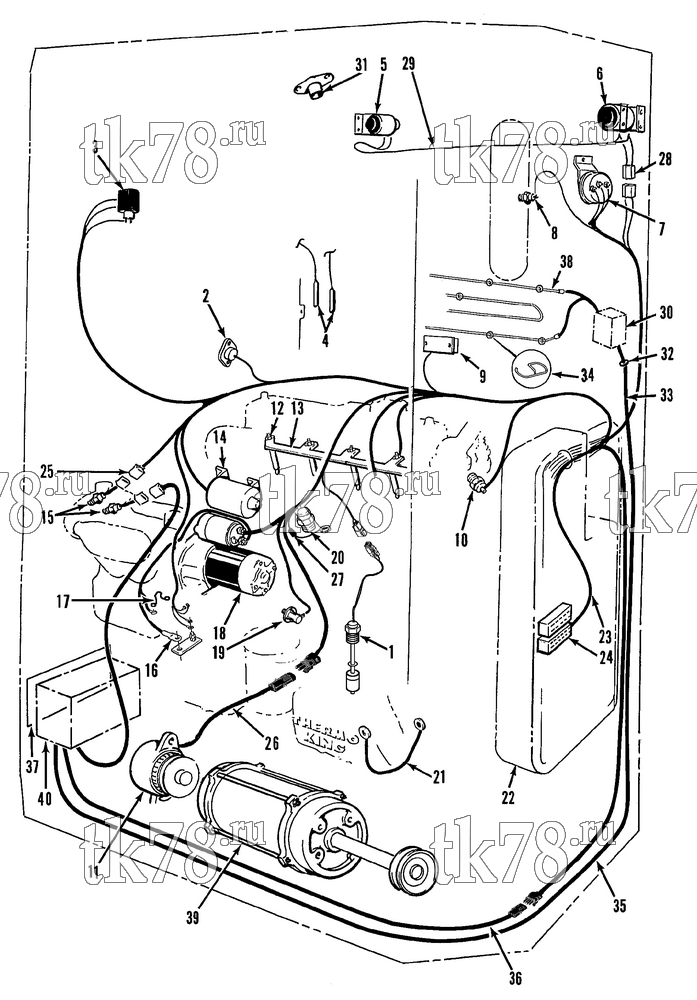

Установкa Thermo King Super-II 30 MAX w/se 2.2 Engine схема ELECTRICAL COMPONENTS (SUPER-II 50) – 112D4
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-402 | SWITCH - oil level | 1 | |
|
41-402 OEM | Датчик уровня масла | 10 090 ₽ |
|
|
10-41-402 | Датчик уровня масла | 6 190 ₽ |
|
| 33-3877 | GASKET - switch | 1 | ||
|
10-33-3877 | Уплотнитель датчика уровня масла | 1 030 ₽ |
|
| 2 | 44-7892 | SWITCH - high temperature cutout | 1 | |
| 3 | 66-5908 | VALVE - pilot solenoid (solder type) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 4 | 44-5234 | SENSOR | 1 | |
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 5 | 44-2823 | SOLENOID - defrost (see 80F4) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 6 | 44-9181 | SOLENOID - defrost (see 80F4) | 1 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 5 860 ₽ |
|
| 7 | 44-6241 | SWITCH - air (see 103D7) | 1 | |
| 8 | 44-6534 | SENSOR - coolant level | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 9 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-4507 | SCREW - switch & ground | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 55-5761 | LOCKWASHER | 1 | ||
| 10 | 44-3018 | SWITCH - coolant temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 11 | 41-2195 | ALTERNATOR (37 amp, model EA, see 112D2) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR) | 1 | ||
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 12 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 13 | 44-6602 | CONNECTOR - glow plug | 1 | |
| 14 | 44-9181 | SOLENOID - throttle (see 106D5) | 1 | |
|
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 5 860 ₽ |
|
| 15 | 41-3670 | SWITCH - hpco | 2 | |
| 16 | 41-1296 | CABLE - battery | 1 | |
| 55-3227 | NUT - cable | 2 | ||
| 55-416 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 17 | 44-8244 | FUSE LINK (see 90G12) | 1 | |
|
10-44-8244 | Провод предохранителя | 1 790 ₽ |
|
| 18 | 45-2325 | STARTER (see engine section) | 1 | |
| 19 | 41-7063 | SWITCH - oil pressure | 1 | |
| 10-41-7063 | Датчик давления масла, SB-XXX/SB-III | 3 280 ₽ |
|
|
| 55-2505 | ELBOW | 1 | ||
| 203-385 | SEALER - thread | A/R | ||
| 20 | 44-6727 | VALVE - solenoid (see engine section) | 1 | |
|
10-44-6727 | Топливный соленоид, SB-II/III / SMX/SMX-II | 4 300 ₽ |
|
| 21 | 44-7529 | HARNESS - CH | 1 | |
| 55-2977 | SCREW - harness to frame | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-2699 | LOCKWASHER | 1 | ||
| 55-4953 | NUT | 2 | ||
| 55-4998 | SCREW - harness to sump | 1 | ||
| 55-698 | LOCKWASHER (internal tooth) | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 22 | 98-4838 | BOX - control (see 112D5) | 1 | |
| 23 | 41-164 | HARNESS - main (see 112D5) | 1 | |
| 24 | 44-7523 | SOCKET (14 contact) | 1 | |
| 44-5220 | COVER - socket | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 25 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 26 | 44-9299 | HARNESS - alternator | 1 | |
| 27 | 44-7663 | DIODE - assembly | 1 | |
| 55-5580 | SCREW - diode | 1 | ||
| 55-4608 | LOCKWASHER | 1 | ||
| 28 | 44-8444 | HARNESS - damper | 1 | |
| 29 | 44-7528 | HARNESS - solenoid jumper (evaporator) | 1 | |
| 30 | 44-7354 | BOX - junction | 1 | |
| 55-5639 | SCREW - box | 2 | ||
| 31 | 44-3627 | SWITCH - high temperature cutout | 1 | |
| 55-4523 | SCREW - switch | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 2 | ||
| 32 | 33-367 | GROMMET (5/8 id) | 1 | |
| 33-428 | GROMMET (1/2 id) | 1 | ||
| 33 | 44-7700 | CABLE - heater | 1 | |
| 34 | 91-240 | RETAINER - heater | 42 | |
| 35 | 41-165 | HARNESS - diesel/electric switch | 1 | |
| 36 | 44-7688 | HARNESS - linestarter | 1 | |
| 37 | NSS | BEZEL - linestarter (see 83C7) | 1 | |
| 38 | 45-1361 | HEATER (1000W @ 230VAC) | 3 | |
| 39 | 104-500 | MOTOR (see 112D2) | 1 | |
| 104-632 | MOTOR (see 112D2) | 1 | ||
| 40 | NSS | LINESTARTER (see 83C7) | 1 |
