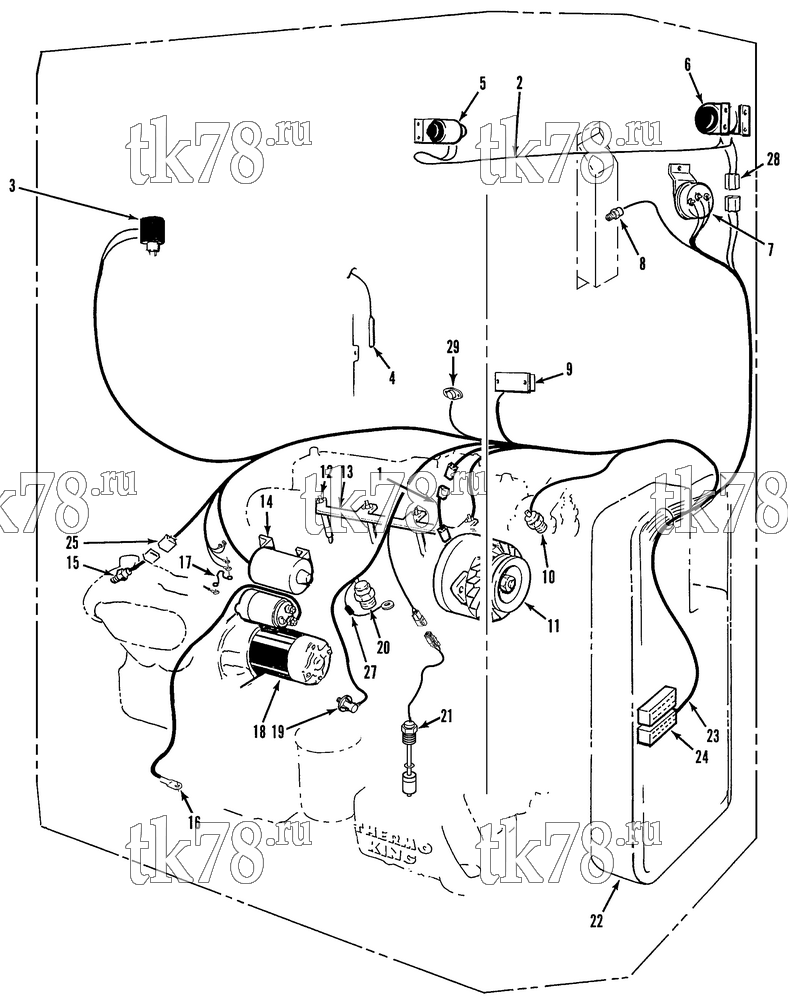

Установкa Thermo King Super-II 30 MAX w/se 2.2 Engine схема ELECTRICAL COMPONENTS (SUPER-II 30 MAX) – 107D6
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9041 | HARNESS - alternator | 1 | |
|
10-44-9041 | Проводка генератора | 6 920 ₽ |
|
| 2 | 44-7528 | HARNESS - solenoid jumper | 1 | |
| 3 | 66-5908 | VALVE - pilot solenoid | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 4 | 44-5234 | SENSOR | 2 | |
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 5 | 44-2823 | SOLENOID - defrost (see 80F4) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 640 ₽ |
|
| 6 | 44-9181 | SOLENOID - defrost | 1 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 6 870 ₽ |
|
| 7 | 44-6241 | SWITCH - air (see 103D7) | 1 | |
| 8 | 44-6534 | SENSOR - coolant level | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 9 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-4507 | SCREW - switch & ground | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 55-5761 | LOCKWASHER - internal tooth | 1 | ||
| 10 | 44-3018 | SWITCH - coolant temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 330 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 11 | 45-2254 | ALTERNATOR (37 amp, see 208F4) | 1 | |
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-8461 | ALTERNATOR (37 amp, Standard Life Plus) | 1 | ||
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 845-2254 | ALTERNATOR (37 amp, remanufactured) | 1 | ||
| 12 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 13 | 44-6602 | CONNECTOR - glow plug | 1 | |
| 14 | 44-9181 | SOLENOID - throttle (see 106D5) | 1 | |
|
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 6 870 ₽ |
|
| 15 | 41-3670 | SWITCH - hpco (R22, R404A, R402A & R403B) | 1 | |
| 44-5833 | SWITCH - hpco (R12 & R134a) | 1 | ||
| 44-5834 | SWITCH - only | 1 | ||
| 16 | 41-2645 | CABLE - battery | 1 | |
| 17 | 44-8244 | FUSE LINK | 1 | |
|
10-44-8244 | Провод предохранителя | 1 790 ₽ |
|
| 18 | 45-2325 | STARTER | 1 | |
| 19 | 41-7063 | SWITCH - oil pressure | 1 | |
| 10-41-7063 | Датчик давления масла, SB-XXX/SB-III | 3 280 ₽ |
|
|
| 55-2505 | ELBOW | 1 | ||
| 203-385 | SEALER - thread | A/R | ||
| 20 | 44-6727 | VALVE - solenoid (see engine section) | 1 | |
|
10-44-6727 | Топливный соленоид, SB-II/III / SMX/SMX-II | 4 300 ₽ |
|
| 21 | 44-9810 | SWITCH - oil level (w/ 3/4 mpt) | 1 | |
| 41-402 | SWITCH - oil level (mounts in 1.3 in dia hole) | 1 | ||
|
41-402 OEM | Датчик уровня масла | 10 090 ₽ |
|
|
10-41-402 | Датчик уровня масла | 6 190 ₽ |
|
| 33-3877 | GASKET - switch | 1 | ||
|
10-33-3877 | Уплотнитель датчика уровня масла | 1 030 ₽ |
|
| 22 | NSS | BOX - control (see 107D8) | 1 | |
| 23 | 44-9678 | HARNESS - main (see 107D8) | 1 | |
| 24 | 44-7523 | SOCKET (14-pin) | 1 | |
| 44-5220 | COVER - connector | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 25 | 44-5838 | CONNECTOR - tower (2-pin) | 3 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 6 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 6 | ||
| 26 | 44-5835 | CONNECTOR | 3 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 8 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 8 | ||
| 27 | 44-7663 | DIODE - silicone | 1 | |
| 55-5580 | SCREW - diode | 1 | ||
| 55-4608 | LOCKWASHER | 1 | ||
| 28 | 44-8444 | HARNESS - evaporator | 1 | |
| 44-7872 | CONNECTOR - tower (6-pin) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 4 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 29 | 44-7892 | SWITCH - high temperature | 1 |
