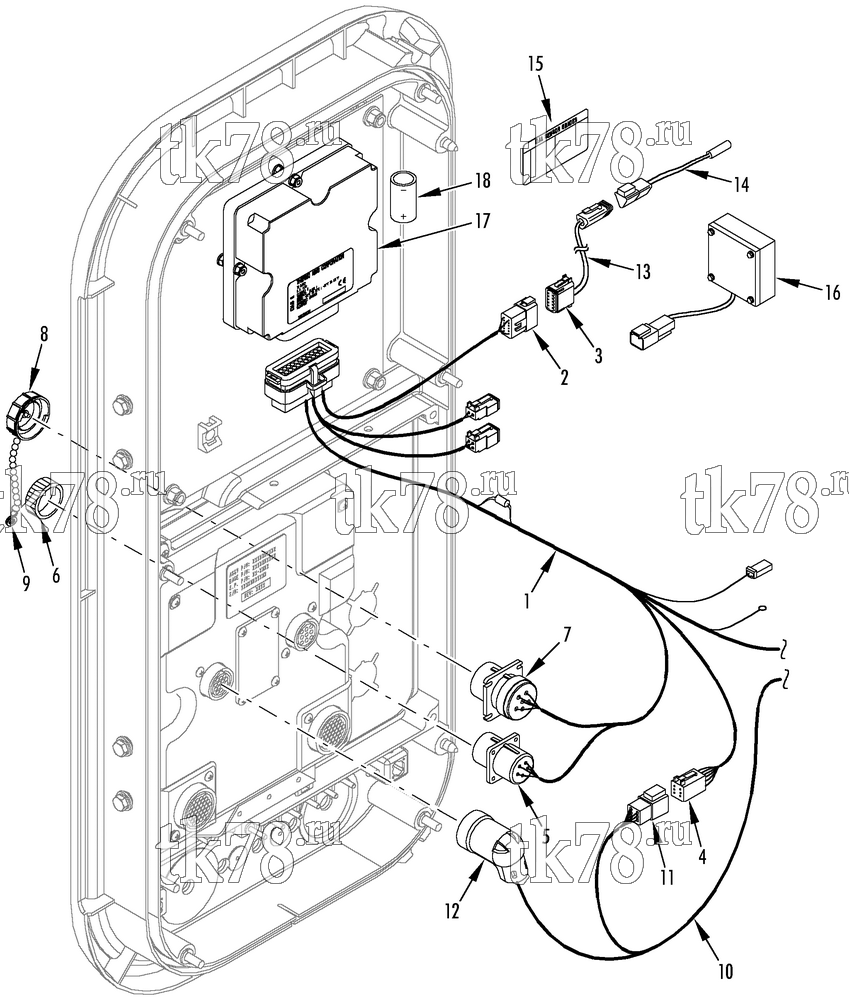

Установкa Thermo King Super-II 30 190Y схема DAS HARNESSES AND SENSORS (SUPER-II) – 191H5
Обновление от: 12/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5850 | HARNESS - DAS (Super-II 30) | 1 | |
| 41-5411 | HARNESS - DAS (Super-II 50) | 1 | ||
| 41-3355 | PLUG (35-pin) | 1 | ||
| 10-41-3355 | Контроллер заслонки, SMX/SMX-II/SL/SLe | 38 690 ₽ |
|
|
|
PP-41-3355 | Контроллер заслонки, SMX/SMX-II/SL/SLe | 20 370 ₽ |
|
| 2 | 44-9600 | PLUG (12-pin) | 1 | |
| 3 | 44-9904 | RECEPTACLE (12-pin) | 1 | |
| 4 | 44-8920 | PLUG (6-pin) | 1 | |
| 5 | 41-2405 | CONNECTOR - receptacle (5-pin, download) | 1 | |
| 6 | 41-2406 | CAP - dust | 1 | |
| 7 | 44-8329 | RECEPTACLE (DAS, 6-pin, see 169E3) | 1 | |
| 8 | 44-8333 | CAP - dust | 1 | |
| 9 | 99-3685 | CHAIN - cap | 2 | |
| 10 | 41-5778 | HARNESS - communication | 1 | |
| 41-6155 | HARNESS - communication (SPECTRUM) | 1 | ||
| 11 | 44-8914 | RECEPTACLE (6-pin) | 1 | |
| 12 | 41-743 | PLUG - circular (17-14, see 169E1) | 1 | |
| 13 | 41-3015 | HARNESS - sensor (10 ft) | A/R | |
| 41-2985 | HARNESS - sensor (20 ft) | A/R | ||
| 41-2986 | HARNESS - sensor (40 ft) | A/R | ||
| 41-2987 | HARNESS - sensor (60 ft) | A/R | ||
| 41-3680 | HARNESS - sensor (80 ft) | A/R | ||
| 14 | 40-974 | KIT - sensor (DAS, graded) | A/R | |
|
40-974 OEM | Датчик температуры к-т, калиброванный | 25 620 ₽ |
|
|
10-40-974 | Датчик температуры к-т, калиброванный | 4 660 ₽ |
|
| 15 | 91-9305 | NAMEPLATE - DAS | 1 | |
| 16 | 44-9952 | SENSOR - humidity | 1 | |
| 17 | 45-2247 | DATALOGGER - DAS IV | 1 | |
| 18 | 203-439 | BATTERY | 1 | |
| 55-5754 | NUT - datalogger | 3 | ||
| 55-3013 | FLATWASHER | 3 |
