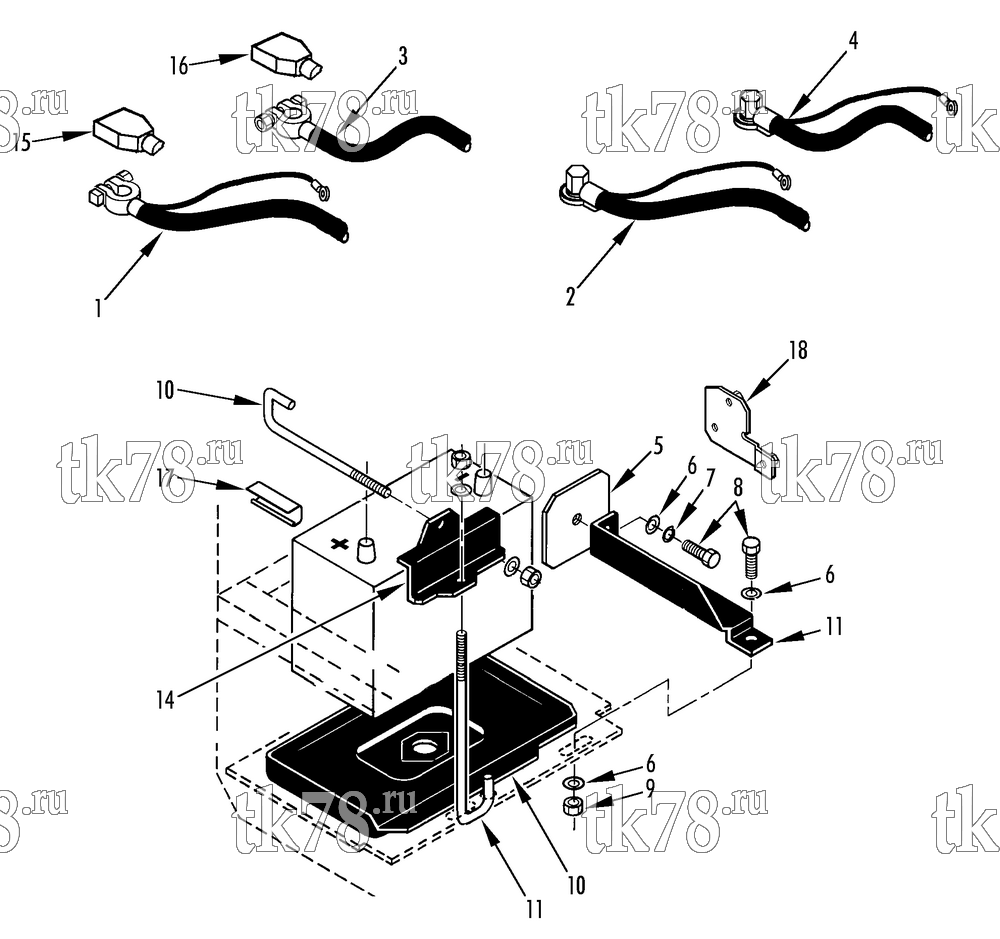

Установкa Thermo King Super-II 30 190Y схема BATTERY MOUNTING GROUP – 191H3
Обновление от: 8/26/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5165 | CABLE - battery (positive, 48 in, 136 in control lead) | 1 | |
| 2 | 41-5848 | CABLE - battery (positive, threaded post 48 in, 136 in control lead) | 1 | |
| 3 | 44-9551 | CABLE - battery (negative, 32 in, w/16 in control lead) | 1 | |
| 4 | 44-9763 | CABLE - battery (negative, threaded post 32 in, w/16 in control lead) | 1 | |
| 55-6211 | NUT - cable | 2 | ||
| 5 | 91-644 | NUTPLATE | 1 | |
| 6 | 55-411 | FLATWASHER | 5 | |
| 7 | 55-366 | LOCKWASHER | 1 | |
| 8 | 55-101 | SCREW | 2 | |
| 9 | 55-4118 | NUT | 3 | |
| 10 | 91-8740 | TRAY - battery | 1 | |
| 11 | 91-1346 | ROD (front) | 1 | |
| 12 | 91-1347 | ROD (top) | 1 | |
| 13 | 91-647 | BRACKET - side | 1 | |
| 14 | 91-1345 | HOLDDOWN - battery | 1 | |
| 15 | 44-7051 | BOOT - battery cable cover (red) | 1 | |
| 16 | 44-7828 | BOOT - battery cable (black) | 1 | |
| 17 | 91-646 | INSULATOR - cable | 2 |
