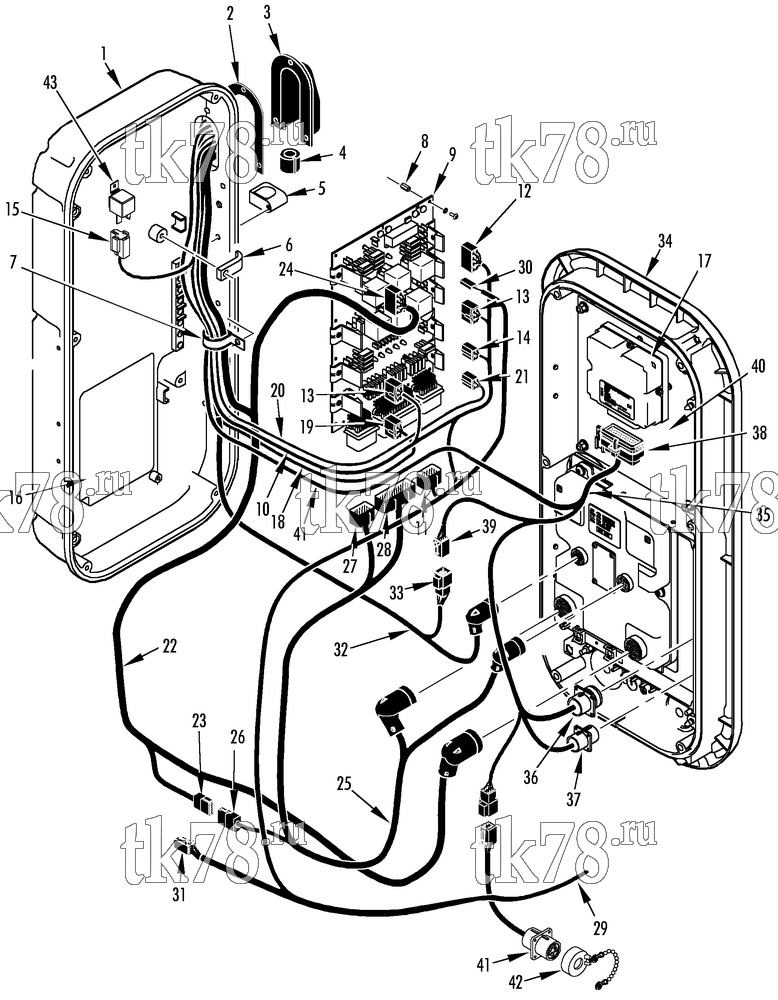

Установкa Thermo King Super-II 30 190Y схема CONTROL BOX GROUP (SUPER-II Y) – 191B7
Обновление от: 12/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5797 | BOX - control | 1 | |
| 2 | 33-2786 | GASKET - shield | 1 | |
| 3 | 91-4503 | COVER - harness | 1 | |
| 55-1587 | SCREW - cover | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 4 | 92-465 | HOSE - harness | 1 | |
| 5 | 91-3886 | CLAMP - harness | 1 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 6 | 92-1631 | CLAMP - harness | 1 | |
| 55-2979 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 7 | 55-5274 | CLAMP - harness | 1 | |
| 55-1801 | NUT - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 8 | 99-9889 | SPACER - pc board standoff | 10 | |
| 9 | 41-4316 | BOARD - relay (see 180G1) | 1 | |
| 55-4576 | SCREW - spacer & relay board | 20 | ||
| 55-2998 | LOCKWASHER | 20 | ||
| 10 | 41-5775 | HARNESS - main | 1 | |
| 11 | 44-9853 | RECEPTACLE (18-pin) | 1 | |
| 44-9854 | LOCK - connector | 1 | ||
| 12 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 13 | 44-5030 | CONNECTOR (6-pin) | 2 | |
| 14 | 44-5224 | CONNECTOR (4-pin) | 1 | |
| 15 | 41-1325 | SOCKET - relay | 1 | |
| 55-3015 | SCREW - socket | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 16 | 92-1701 | NAMEPLATE - relay | 1 | |
| 17 | 45-2247 | DATALOGGER - DAS IV | 1 | |
| 55-5754 | NUT - datalogger | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 18 | 41-5774 | HARNESS - ETV | 1 | |
| 19 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 20 | 41-5775 | HARNESS - alternator | 1 | |
| 21 | 44-9607 | CONNECTOR (2-pin, female) | 1 | |
| 22 | 41-5773 | HARNESS - sensor | 1 | |
| 41-745 | PLUG (23-pin) | 1 | ||
| 23 | 44-9600 | PLUG (12-pin) | 1 | |
| 44-9601 | WEDGE | 1 | ||
| 24 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 25 | 41-5847 | HARNESS - interconnect | 1 | |
| 26 | 44-9904 | CONNECTOR (12-pin) | 1 | |
| 27 | 44-9853 | RECEPTACLE (18-pin) | 1 | |
| 44-9854 | LOCK - receptacle | 1 | ||
| 28 | 44-9768 | RECEPTACLE (36-pin) | 1 | |
| 44-9769 | LOCK - receptacle | 1 | ||
| 29 | 41-5777 | HARNESS - switch | 1 | |
| 41-4165 | SWITCH | 1 | ||
| 30 | 44-6292 | CONNECTOR (1-pin) | 1 | |
| 31 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 32 | 41-5778 | HARNESS - communication | 1 | |
| 33 | 44-8914 | RECEPTACLE (6-pin) | 1 | |
| 34 | NSS | COVER - control box (see 191B8) | 1 | |
| 35 | 41-5411 | HARNESS - datalog | 1 | |
| 36 | 44-8329 | RECEPTACLE (6-pin) | 1 | |
| 37 | 41-2405 | CONNECTOR - receptacle (5-pin) | 1 | |
| 44-8334 | STRAIN - relief | 1 | ||
| 38 | 41-3359 | CONNECTOR - plug (35-pin, female) | 1 | |
| 39 | 44-8920 | CONNECTOR (6-pin) | 1 | |
| 55-3427 | SCREW - receptacle | 8 | ||
| 55-2359 | FLATWASHER | 8 | ||
| 55-2360 | LOCKWASHER | 8 | ||
| 55-2361 | NUT | 8 | ||
| 40 | 92-466 | PLATE (DAS) | 1 | |
| 55-4953 | NUT - plate | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 41 | 41-3679 | HARNESS - data logging | 1 | |
| 41-2405 | RECEPTACLE - 5-pin | 1 | ||
| 44-8920 | PLUG - 6-pin | 1 | ||
| 42 | 41-2406 | CAP - dust | 1 | |
| 99-3685 | CHAIN - cap | 1 | ||
| 43 | 41-478 | RELAY - air intake heater | 1 |
