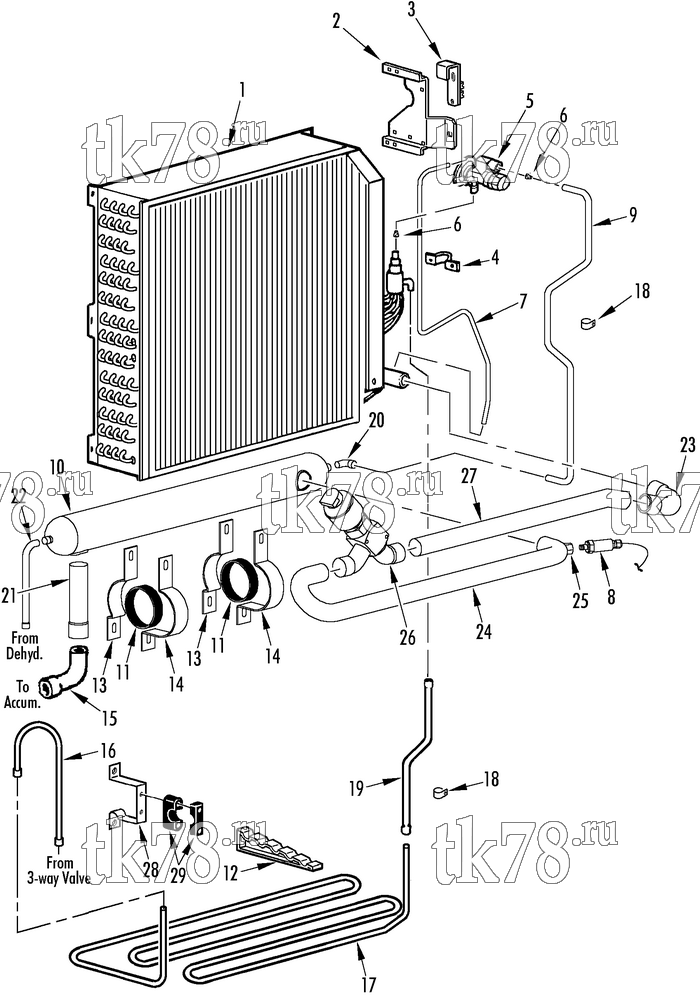

Установкa Thermo King Super-II 30 190Y схема REFRIGERATION - EVAPORATOR (w/ ETV) – 180G3
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1679 | COIL - evaporator | 1 | |
| 67-1461 | COIL - evaporator (vinyl dip, optional) | 1 | ||
| 2 | 91-6636 | BRACKET - expansion valve | 1 | |
| 3 | 91-6637 | BRACKET - expansion valve | 1 | |
| 4 | 99-9908 | CLAMP - distributor | 1 | |
| 55-2977 | SCREW - clamp | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4415 | NUT - captive | 4 | ||
| 5 | 66-7532 | VALVE - expansion | 1 | |
| 66-9378 | SCREEN - inlet | 1 | ||
| 66-3650 | ELEMENT - power | 1 | ||
| 6 | 66-6380 | SCREEN - filter (inlet) | 1 | |
| 66-4453 | SCREEN - filter (outlet) | 1 | ||
| 7 | 61-1894 | TUBE - equalizer | 1 | |
| 8 | 41-5248 | TRANSDUCER - suction pressure | 1 | |
| 9 | 66-7366 | TUBE - exchanger to expansion valve | 1 | |
| 10 | 67-2142 | TANK - heat exchanger (inc20 - 24) | 1 | |
| 11 | 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | |
| 12 | 91-3853 | BRACKET - defrost tube | 3 | |
| 55-1587 | SCREW - bracket | 9 | ||
| 55-2086 | FLATWASHER | 9 | ||
| 55-4953 | NUT | 9 | ||
| 13 | 91-2681 | BRACKET - exchanger (upper) | 2 | |
| 14 | 91-2682 | BRACKET - exchanger (lower) | 2 | |
| 55-2969 | SCREW - bracket | 4 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT | 2 | ||
| 15 | 66-5854 | TUBE - exchanger to accumulator | 1 | |
| 16 | 66-4749 | TUBE - 3-way to defrost | 1 | |
| 17 | 66-8441 | TUBE - defrost | 1 | |
| 33-549 | GROMMET - tube | 1 | ||
| 18 | 55-549 | CLAMP - tube | 3 | |
| 55-3027 | SCREW - clamp | 3 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-4560 | NUT | 3 | ||
| 19 | 66-4748 | TUBE - defrost to distributor | 1 | |
| 20 | 55-1464 | ELBOW (1/2 x 1/2) | 1 | |
| 21 | 66-5514 | TUBE - suction | 1 | |
| 22 | 66-5515 | TUBE - liquid | 1 | |
| 23 | 55-3094 | ELBOW (1-3/8 x 1-3/8) | 1 | |
| 24 | 61-331 | TUBE - expansion valve (suction) | 1 | |
| 25 | 66-3615 | FITTING - saddle | 1 | |
| 26 | 61-3764 | VALVE - electronic throttling | 1 | |
| 40-693 | KIT - valve repair | 1 | ||
| 27 | 61-1895 | TUBE - valve to elbow | 1 | |
| 28 | 91-7579 | BRACKET - suction tube | 1 | |
| 55-6020 | CLAMP - tube | 1 | ||
| 55-3462 | SCREW - clamp | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 |
