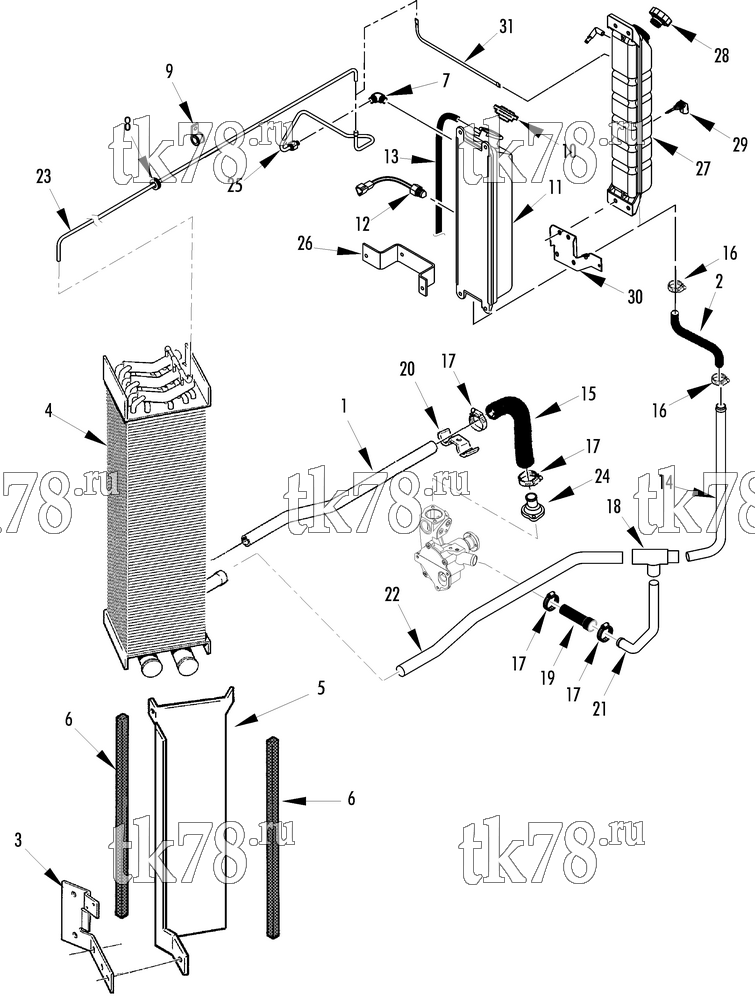

Установкa Thermo King Super-II 30 190Y схема COOLING SYSTEM (TK486V) – 160E1
Обновление от: 9/25/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9095 | TUBE - radiator inlet | 1 | |
| 2 | 11-7729 | HOSE - engine to expansion tank | 1 | |
| 3 | 91-7241 | BRACKET - radiator | 1 | |
| 55-529 | SCREW - bracket | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 4 | 12-759 | RADIATOR | 1 | |
| 12-762 | RADIATOR (vinyl dipped) | 1 | ||
| 12-760 | RADIATOR (fuel heater option, see 118B6) | 1 | ||
| 99-9894 | NUTSTRIP (4.0 bhc) | 2 | ||
| 91-1780 | NUTSTRIP (3.0 bhc) | 2 | ||
| 55-1725 | RIVET - nutstrip | 6 | ||
| 55-2969 | SCREW - radiator | 6 | ||
| 55-790 | LOCKWASHER | 6 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-2904 | WASHER - special | 2 | ||
| 5 | 98-3283 | PANEL - radiator cover | 1 | |
| 55-2969 | SCREW - panel (1.0 lg) | 2 | ||
| 55-2969 | SCREW - panel (1.5 lg) | 1 | ||
| 55-2958 | FLATWASHER | 3 | ||
| 55-4954 | NUT | 3 | ||
| 6 | 33-3506 | STRIP - sealing | 2 | |
| 7 | 55-308 | ELBOW | 1 | |
| 8 | 33-287 | GROMMET | 2 | |
| 9 | 55-2536 | CLAMP - tube | 2 | |
| 55-2979 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 10 | 11-5406 | CAP - radiator | 1 | |
|
10-11-5406 | Крышка радиатора | 2 200 ₽ |
|
| 11 | 12-777 | TANK - expansion | 1 | |
| 55-1587 | SCREW - tank | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4967 | NUT | 4 | ||
| 12 | 41-2842 | SENSOR - coolant level | 1 | |
| 13 | 99-1655 | HOSE - overflow (90.0 lg) | A/R | |
| 14 | 13-108 | TUBE - expansion | 1 | |
| 55-4203 | CLAMP - tube | 1 | ||
| 15 | 11-9701 | HOSE - engine outlet (EPDM) | 1 | |
| 11-9702 | HOSE - engine outlet (silicone) | 1 | ||
| 16 | 55-1521 | CLAMP - hose (silicone) | 2 | |
| 55-2818 | CLAMP - hose (EPDM) | 2 | ||
| 17 | 55-3401 | CLAMP - hose (silicone) | 3 | |
| 55-558 | CLAMP - hose (EPDM) | 3 | ||
| 18 | 11-9118 | TEE (1-1/8 x 5/8 x 1-1/8) | 1 | |
| 19 | 12-537 | HOSE - tube to pump (cut to 4.0 in) | 1 | |
| 20 | 99-3884 | CLAMP - tube | 1 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 21 | 11-9738 | TUBE - tee to hose | 1 | |
| 22 | 11-9119 | TUBE - radiator outlet | 1 | |
| 23 | 11-6305 | TUBE - radiator to expansion tank | 1 | |
| 24 | 11-8675 | ADAPTER - engine water outlet (see 204F0) | 1 | |
| 25 | 11-9306 | TUBE - radiator to expansion tank | 1 | |
| 26 | 91-2670 | BRACKET - expansion tank | 1 | |
| 55-1587 | SCREW - bracket | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 27 | 12-842 | TANK - expansion | 1 | |
|
10-12-842 | Расширительный бак | 38 500 ₽ |
|
| 28 | 11-9632 | CAP - radiator | 1 | |
|
10-11-9632 | Крышка расширительного бачка, SLX/SLXe | 930 ₽ |
|
| 29 | 41-6217 | SENSOR - coolant level | 1 | |
| 30 | 92-6579 | BRACKET - expansion tank | 1 | |
| 31 | 13-947 | TUBE - radiator to expansion tank | 1 |
