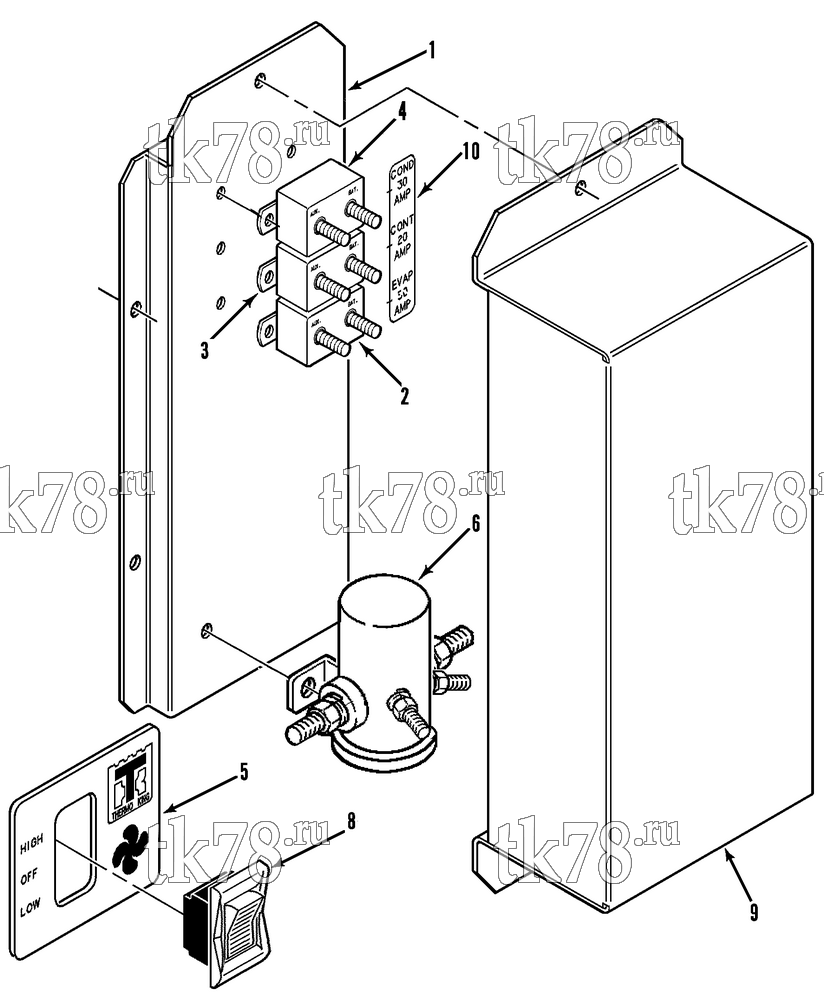

Установкa Thermo King ShuttleAIRE Series Bus схема CONTROL PANEL – 94D9
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3068 | PANEL - control | 1 | |
| 2 | 44-9266 | BREAKER - circuit (50 amp, 12V) | 1 | |
| 44-9097 | BREAKER - circuit (30 amp, 24V) | 1 | ||
| 3 | 44-9267 | BREAKER - circuit (20 amp, 12V) | 1 | |
| 44-9096 | BREAKER - circuit (20 amp, 24V) | 1 | ||
| 4 | 44-9268 | BREAKER - circuit (30 amp, 12V) | 1 | |
| 44-9097 | BREAKER - circuit (30 amp, 24V) | 1 | ||
| 55-2989 | SCREW - breaker | 6 | ||
| 55-5761 | LOCKWASHER | 6 | ||
| 55-7557 | INSERT | 6 | ||
| 5 | 91-2819 | NAMEPLATE - switch | 1 | |
| 6 | 44-4397 | SOLENOID (12V) | 1 | |
| 41-3987 | SOLENOID (24V) | 1 | ||
| 55-165 | SCREW - solenoid | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-6863 | INSERT | 2 | ||
| 7 | Not Used | |||
| 8 | 44-4608 | SWITCH - fan speed | 1 | |
| 9 | 91-2821 | COVER | 1 | |
| 55-7062 | INSERT | 2 | ||
| 55-6928 | SCREW - cover | 2 | ||
| 10 | 91-2818 | NAMEPLATE - circuit breaker (12V) | 1 | |
| 91-3069 | NAMEPLATE - circuit breaker (24V) | 1 |
