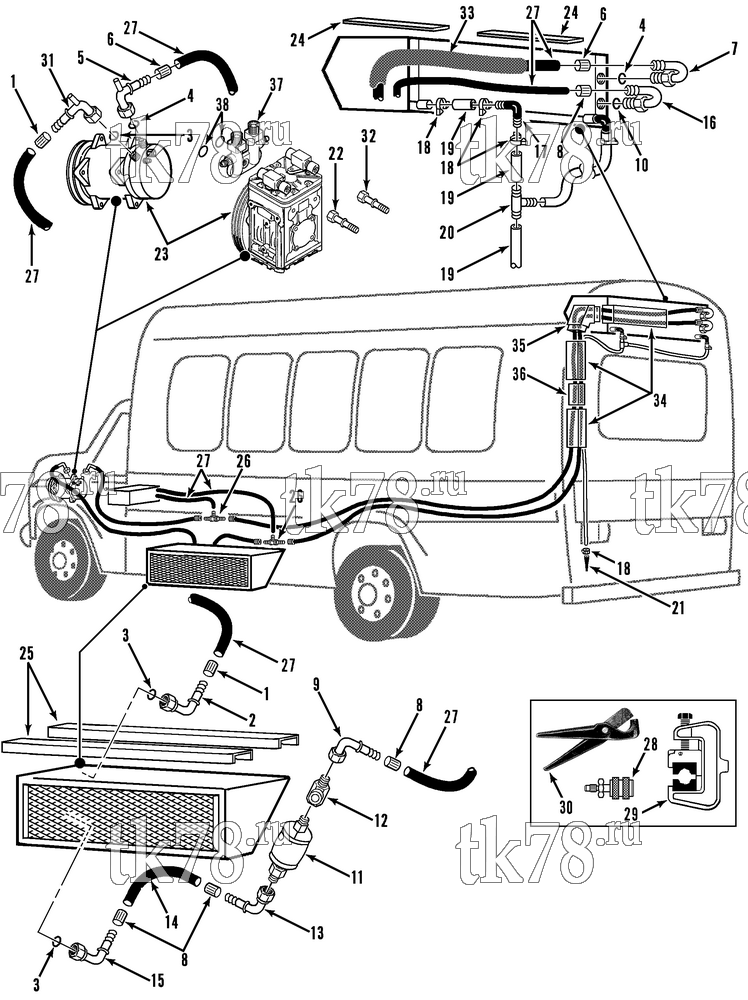

Установкa Thermo King ShuttleAIRE Series Bus схема INSTALLATION GROUP – 94D10
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-5927 | FERRULE - discharge hose (R12, #10) | 2 | |
| 2 | 66-5926 | ELBOW (R12, #10) | 1 | |
| 66-6184 | ELBOW (R22, #10) | 2 | ||
| 3 | 33-2141 | O-RING (1/2) | 6 | |
| 4 | 33-2143 | O-RING (5/8) | 6 | |
| 5 | 66-6219 | ELBOW - suction hose (compressor, R12, #12) | 1 | |
| 6 | 66-5928 | FERRULE - suction hose (R12, #12) | 5 | |
| 7 | 66-5925 | ELBOW - suction hose (expansion valve, R12, #12) | 1 | |
| 66-6181 | ELBOW - suction hose (expansion valve, R22, #12) | 1 | ||
| 8 | 66-5922 | FERRULE - condenser to evaporator hose (R12, #8) | 7 | |
| 9 | 66-5919 | ELBOW - hose (sight glass, R12, #8) | 1 | |
| 66-4852 | ELBOW - hose (sight glass, R22, #8) | 1 | ||
| 10 | 33-1009 | O-RING (3/8) | 6 | |
| 11 | 66-9015 | DEHYDRATOR | 1 | |
| 55-6925 | HANGER - dehydrator | 1 | ||
| 55-3121 | SCREW - dehydrator | 1 | ||
| 55-6925 | NUT | 1 | ||
| 12 | 66-5917 | SIGHT GLASS | 1 | |
| 13 | 66-5919 | ELBOW - condenser (R12, #8) | 1 | |
| 14 | 66-5918 | HOSE (#8, R12) | 1 | |
| 66-6261 | HOSE (#8, R22) | 1 | ||
| 15 | 66-5921 | FITTING - condenser (R12 #8) | 1 | |
| 16 | 66-5924 | ELBOW - hose (R12, #8) | 1 | |
| 66-6180 | ELBOW - hose (R22, #8) | 1 | ||
| 17 | 55-6930 | ELBOW - drain | 2 | |
| 18 | 55-6937 | CLAMP - hose | 10 | |
| 19 | 98-1201 | HOSE - drain | A/R | |
| 20 | 55-7200 | TEE - hose | 1 | |
| 21 | 66-1273 | VALVE - drain (Kazoo) | 1 | |
| 22 | 66-6182 | FITTING - discharge (R22, #10) | 1 | |
| 66-6001 | FITTING - discharge (R12, #10) | 1 | ||
| 23 | 102-404 | COMPRESSOR (York, R12/R22, see 99C10) | 1 | |
| N/A | COMPRESSOR (12V, Sanden, R12, 2A groove, 102-378 see note) | 1 | ||
| 102-379 | COMPRESSOR (24V, Sanden, R12, 2A groove) | 1 | ||
| 102-1028 | COMPRESSOR - 15XD (12V, Zexel, R12/R134a, 2A groove, see 135B13) | 1 | ||
| 102-839 | COMPRESSOR - TM15-XD (24V, Zexel, R12/R134a, 2A groove, see 135B13) | 1 | ||
| 102-669 | COMPRESSOR - TM31 (2BG, 12V, see184G8) | 1 | ||
| 102-633 | COMPRESSOR - TM31 (2BG, 24V, see184G8) | 1 | ||
| 24 | 91-3064 | STRAP - evaporator | 2 | |
| 55-7060 | BOLT - carriage | 6 | ||
| 55-7061 | NUT - speed | 6 | ||
| 55-402 | FLATWASHER | 6 | ||
| 55-5078 | NUT | 6 | ||
| 25 | 91-3440 | CHANNEL - condenser (S-30) | 1 | |
| 91-3441 | CHANNEL - condenser (S-20) | 1 | ||
| 26 | 66-6185 | TEE (#12 x #12 x #12) | 1 | |
| 66-6186 | TEE (#8 x #8 x #8) | 1 | ||
| 66-6003 | SPLICER (#6 to #8) | 1 | ||
| 66-6187 | SPLICER (#8 to #10) | 1 | ||
| 27 | 67-943 | HOSE (#6, R22, 50 ft) | A/R | |
| 67-944 | HOSE (#8, R22, 50 ft) | A/R | ||
| 67-945 | HOSE (#10, R22, 50 ft) | A/R | ||
| 67-946 | HOSE (#12, R22, 50 ft) | A/R | ||
| 67-1056 | HOSE (#6, R12, 50 ft) | A/R | ||
| 67-1057 | HOSE (#8, R12, 50 ft) | A/R | ||
| 67-1058 | HOSE (#10, R12, 50 ft) | A/R | ||
| 67-1059 | HOSE (#12, R12, 50 ft) | A/R | ||
| 28 | 204-677 | CUTTER - hose | 1 | |
| 204-678 | BLADE - replacement | 1 | ||
| 29 | 204-676 | CRIMPER - R12 hose | 1 | |
| 30 | 204-679 | FITTING - charging lines (w/ Schrader valve) | 1 | |
| 31 | 66-6218 | ELBOW - discharge | 1 | |
| 32 | 66-6183 | FITTING - suction (R22, #12) | 1 | |
| 66-6002 | FITTING - suction (R12, #12) | 1 | ||
| 33 | 91-3548 | HOSE - insulating | 1 | |
| 34 | 91-4979 | DUCT - straight | A/R | |
| 35 | 91-4978 | DUCT - coupling (elbow) | 1 | |
| 36 | 91-4977 | DUCT - coupling (straight) | 1 | |
| 37 | 22-992 | MANIFOLD - compressor (90 deg, w/ o-rings) | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 38 | 33-2882 | O-RING | 1 |
