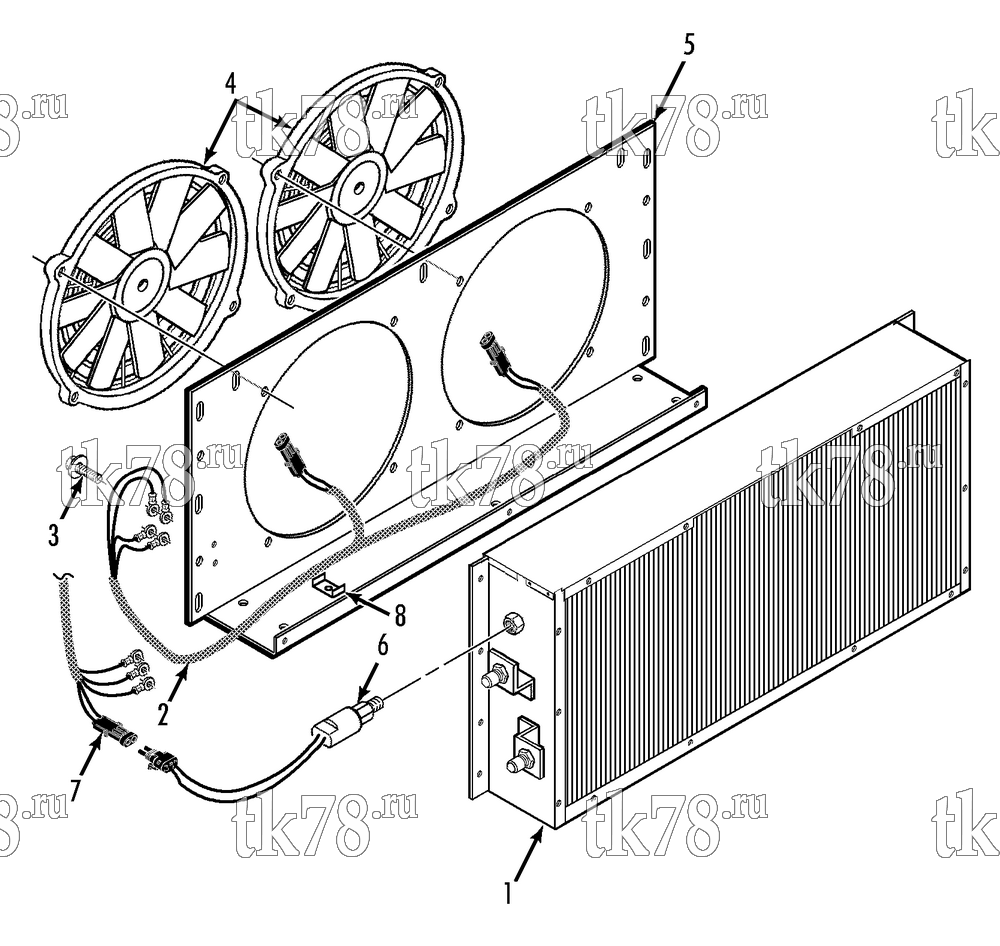

Установкa Thermo King ShuttleAIRE Series Bus схема UNDERMOUNT CONDENSER (S-20 II, S-20 ULP) – 144B9
Обновление от: 5/24/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2188 | COIL - condenser (undermount) | 1 | |
| 2 | 41-1724 | HARNESS - condenser fans | 1 | |
| 3 | 55-2979 | SCREW - terminal | 2 | |
| 55-8120 | WASHER - insulating (shoulder) | 4 | ||
| 55-8121 | WASHER - insulating | 1 | ||
| 55-3472 | NUT | 4 | ||
| 4 | 78-1021 | FAN - condenser (12V) | 2 | |
| 78-1022 | FAN - condenser (24V) | 2 | ||
| 55-1587 | SCREW - fan | 8 | ||
| 55-2993 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 5 | 98-5269 | HOUSING - fans | 1 | |
| 55-1587 | SCREW - housing | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 6 | 41-2588 | SWITCH - pressure modulation | 1 | |
| 7 | 41-1726 | HARNESS - hpco switch | 1 | |
| 8 | 99-3281 | MOUNT - cable tie | 8 |
