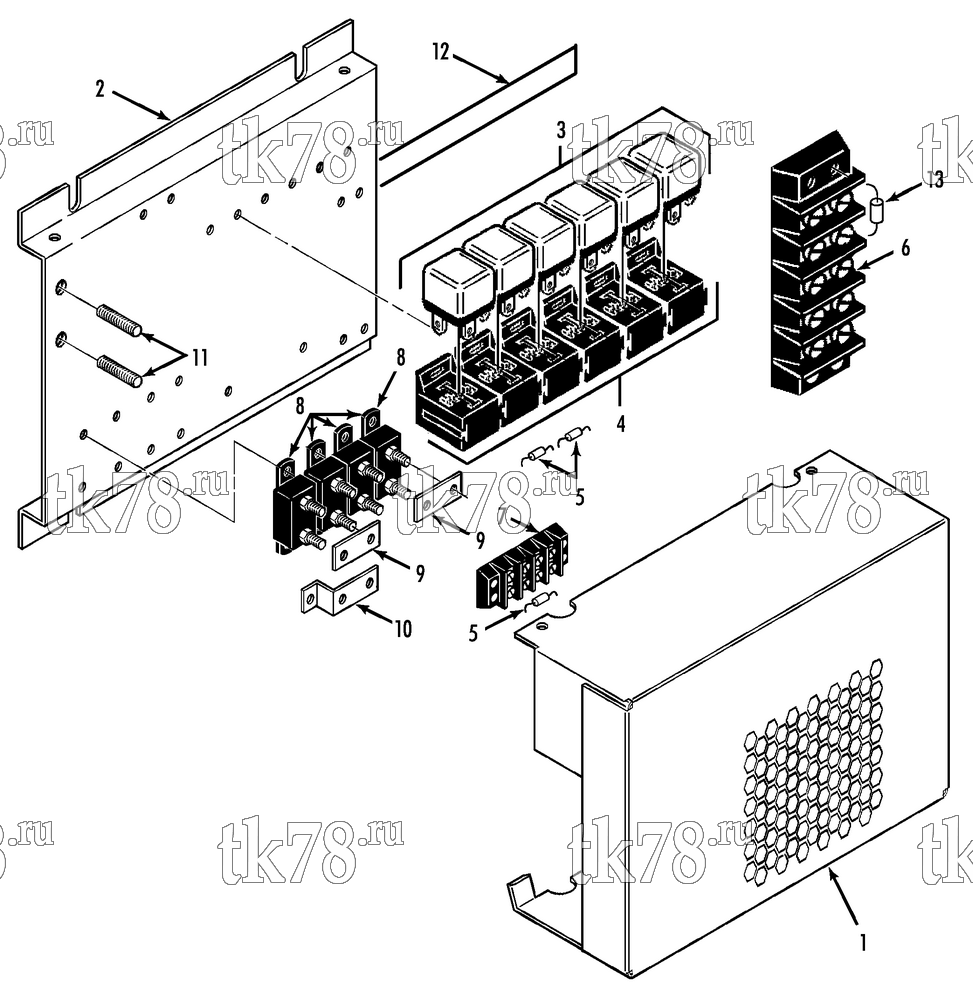

Установкa Thermo King ShuttleAIRE Series Bus схема CONTROL PANEL (S-40 II 24V, 1/97 & After) – 144B8
Обновление от: 4/8/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7518 | COVER - control panel | 1 | |
| 99-1441 | EXTRUSION - sealing | A/R | ||
| 55-3018 | SCREW - cover | 2 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 2 | 91-8464 | PANEL - control | 1 | |
| 3 | 41-896 | RELAY - mini (24V) | 6 | |
| 4 | 44-5537 | SOCKET - relay | 6 | |
| 55-3099 | SCREW - relay | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 5 | 44-5763 | DIODE | 4 | |
| 6 | 44-9282 | BOARD - terminal (55 amp) | 1 | |
| 55-4474 | SCREW - terminal board | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 7 | 44-5350 | BOARD - terminal (20 amp) | 1 | |
| 8 | 44-9097 | BREAKER - circuit (24V) | 4 | |
| 55-3022 | SCREW - circuit breaker | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-664 | NUT - circuit breaker | 8 | ||
| 55-2202 | LOCKWASHER | 8 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 9 | 41-1747 | JUMPER | 2 | |
| 10 | 41-1720 | JUMPER | 1 | |
| 11 | 55-8707 | STUD - terminal | 2 | |
| 55-8596 | FLATWASHER | 6 | ||
| 55-8568 | LOCKWASHER | 5 | ||
| 55-8631 | WASHER - insulating | 1 | ||
| 55-8693 | WASHER - insulating | 1 | ||
| 55-317 | NUT | 4 | ||
| 12 | 91-9357 | MARKSTRIP | 1 | |
| 13 | 41-2922 | DIODE | 1 |
