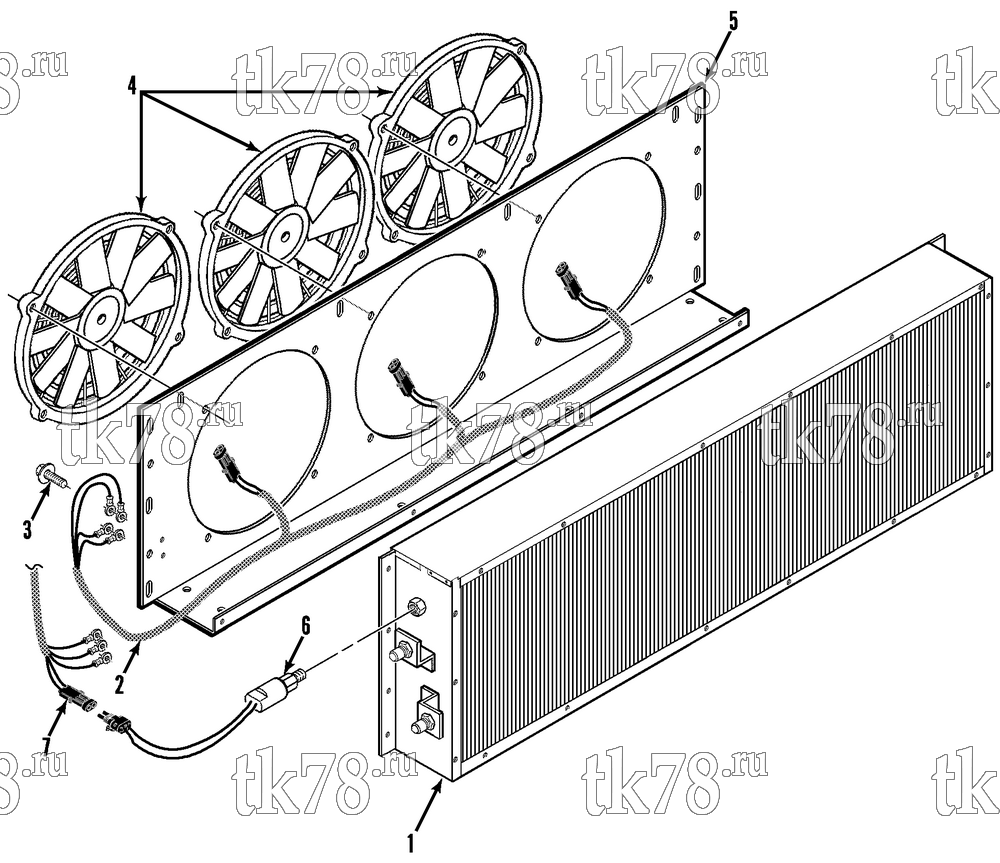

Установкa Thermo King ShuttleAIRE Series Bus схема UNDERMOUNT CONDENSER (S-30 UPL, S-30-II) – 144B10
Обновление от: 5/24/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2189 | COIL - condenser (undermount) | 1 | |
| 2 | 41-1742 | HARNESS - condenser fans | 1 | |
| 3 | 55-2979 | SCREW - terminal | 2 | |
| 55-8120 | WASHER - insulating (shoulder) | 4 | ||
| 55-8121 | WASHER - insulating | 1 | ||
| 55-3472 | NUT | 4 | ||
| 4 | 78-1021 | FAN - condenser (12V) | 3 | |
| 78-1022 | FAN - condenser (24V) | 3 | ||
| 55-1587 | SCREW - fan | 12 | ||
| 55-2993 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 5 | 98-5270 | HOUSING - fans | 1 | |
| 55-1587 | SCREW - housing | 14 | ||
| 55-2086 | FLATWASHER | 14 | ||
| 6 | 41-1502 | SWITCH - hpco | 1 | |
| 7 | 41-2363 | HARNESS - hpco switch (12V) | 1 | |
| 41-2364 | HARNESS - hpco switch (24V) | 1 |
