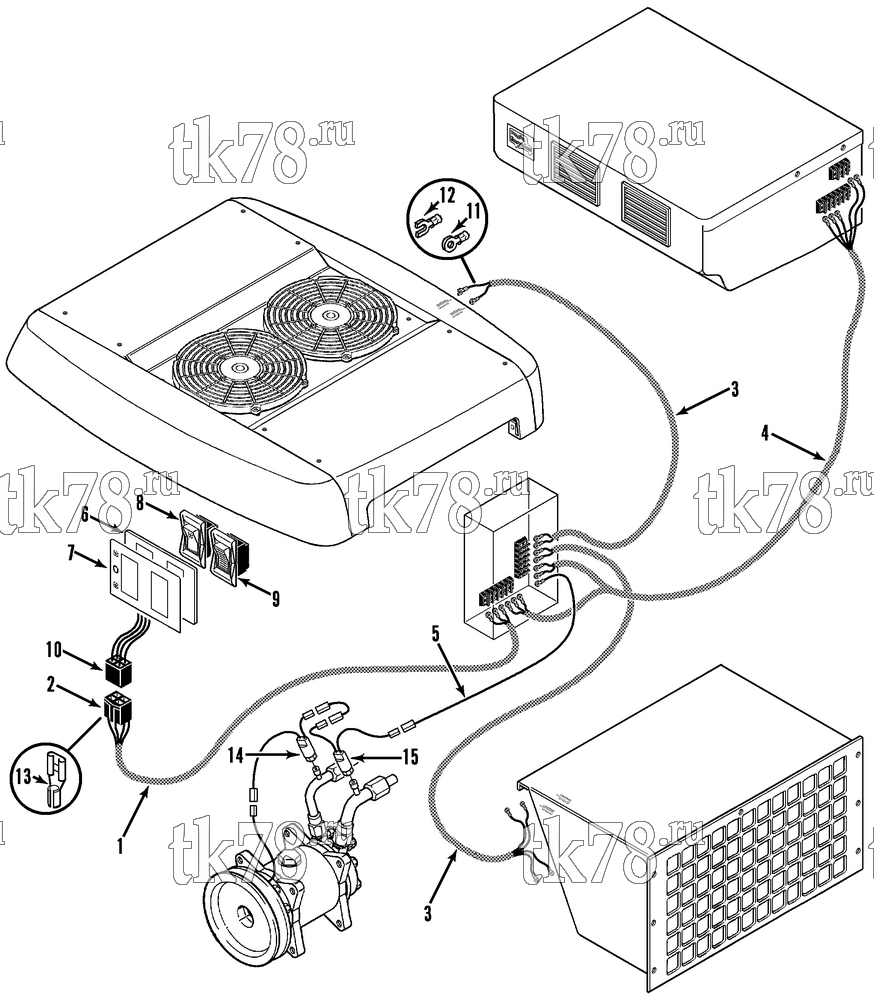

Установкa Thermo King ShuttleAIRE Series Bus схема HARNESS GROUP (1/97 & After) – 143B9
Обновление от: 4/8/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-1723 | HARNESS - control panel to drivers panel | 1 | |
| 2 | 44-4925 | CONNECTOR (6-pin, male) | 1 | |
| 3 | 41-1724 | HARNESS - control panel to condenser (S-20 II) | 1 | |
| 41-2363 | HARNESS - control panel to condenser (12V, S-30 II) | 1 | ||
| 41-2364 | HARNESS - control panel to condenser (24V, S-30 II) | 1 | ||
| 41-2366 | HARNESS - control panel to condenser (12V, S-40 II) | 1 | ||
| 41-1752 | HARNESS - control panel to condenser (S-40 II, 24V) | 1 | ||
| 4 | 41-1725 | HARNESS - control panel to evaporator (S-20 II) | 1 | |
| 41-1751 | HARNESS - control panel to evaporator (S-30 II) | 1 | ||
| 41-1753 | HARNESS - control panel to evaporator (S-40 II, 12V) | 1 | ||
| 41-2923 | HARNESS - control panel to evaporator (S-40 II, 24V) | 1 | ||
| 5 | 41-1726 | HARNESS - control panel to clutch (for connectors see 115D14) | 1 | |
| 6 | 91-8457 | PANEL - driver | 1 | |
| 7 | 91-8458 | NAMEPLATE - driver panel | 1 | |
| 8 | 41-2367 | SWITCH - on/off | 1 | |
| 9 | 41-2368 | SWITCH - fan | 1 | |
| 10 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 11 | 44-9995 | TERMINAL - ring (5/16) | 4 | |
| 44-2790 | TERMINAL - ring (blue 5/16, 14-16 ga) | 1 | ||
| 12 | 44-5087 | TERMINAL - fork (yellow #10, 10-12 ga) | 6 | |
| 41-438 | TERMINAL - forked (16-14) | 8 | ||
| 13 | 44-5630 | TERMINAL - fingrip (14 gauge) | 2 | |
| 44-5631 | TERMINAL - fingrip (18 gauge) | 2 | ||
| 14 | 44-9004 | SWITCH - hpco | 1 | |
| 15 | 44-9005 | SWITCH - lpco | 1 |
