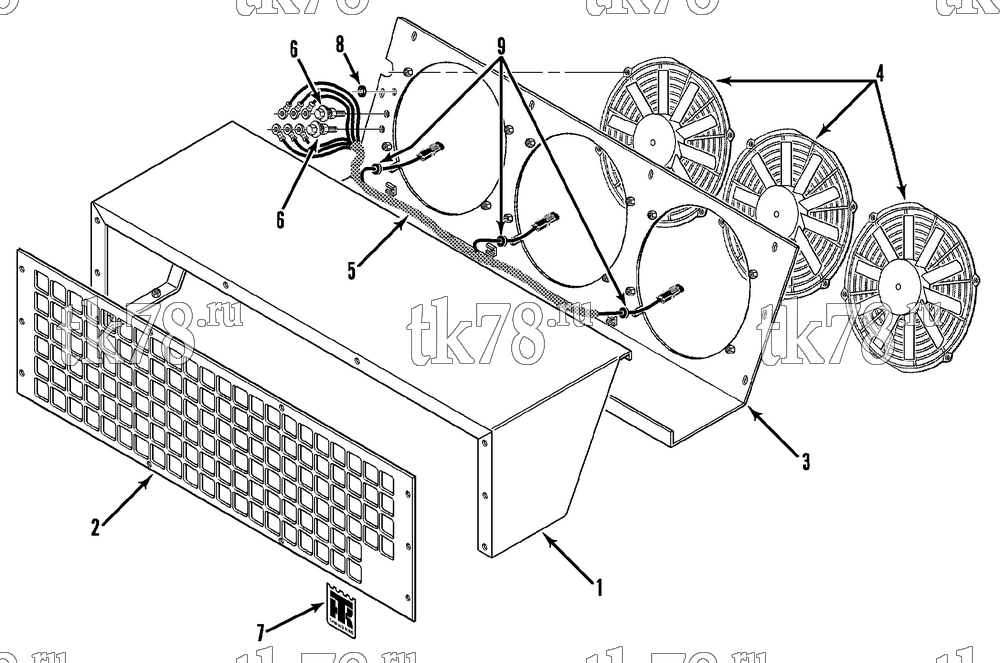

Установкa Thermo King ShuttleAIRE Series Bus схема CONDENSER FRAME & FANS (S-30 II) – 133F4
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8039 | FRAME - condenser | 1 | |
| 2 | 98-5007 | GRILLE - condenser | 1 | |
| 3 | 98-5008 | HOUSING - fan (12V) | 1 | |
| 98-5268 | HOUSING - fan (24V) | 1 | ||
| 55-1587 | SCREW - housing | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 4 | 78-1021 | FAN - condenser (12V) | 3 | |
| 78-1022 | FAN - condenser (24V) | 3 | ||
| 55-1587 | SCREW - fan | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 5 | 41-2363 | HARNESS - condenser (12V) | 1 | |
| 41-2364 | HARNESS - condenser (24V) | 1 | ||
| 6 | 55-2979 | SCREW - terminal | 2 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-2993 | LOCKWASHER (internal tooth) | 4 | ||
| 55-8120 | WASHER - insulating (shoulder) | 2 | ||
| 55-8121 | WASHER - insulating | 2 | ||
| 55-3472 | NUT | 4 | ||
| 7 | 91-3247 | NAMEPLATE - TK | 1 | |
| 8 | 33-314 | GROMMET (5/16 id) | 1 | |
| 9 | 33-451 | GROMMET (3/8 id) | 3 | |
| 33-415 | GROMMET (5/8 id) | 1 |
