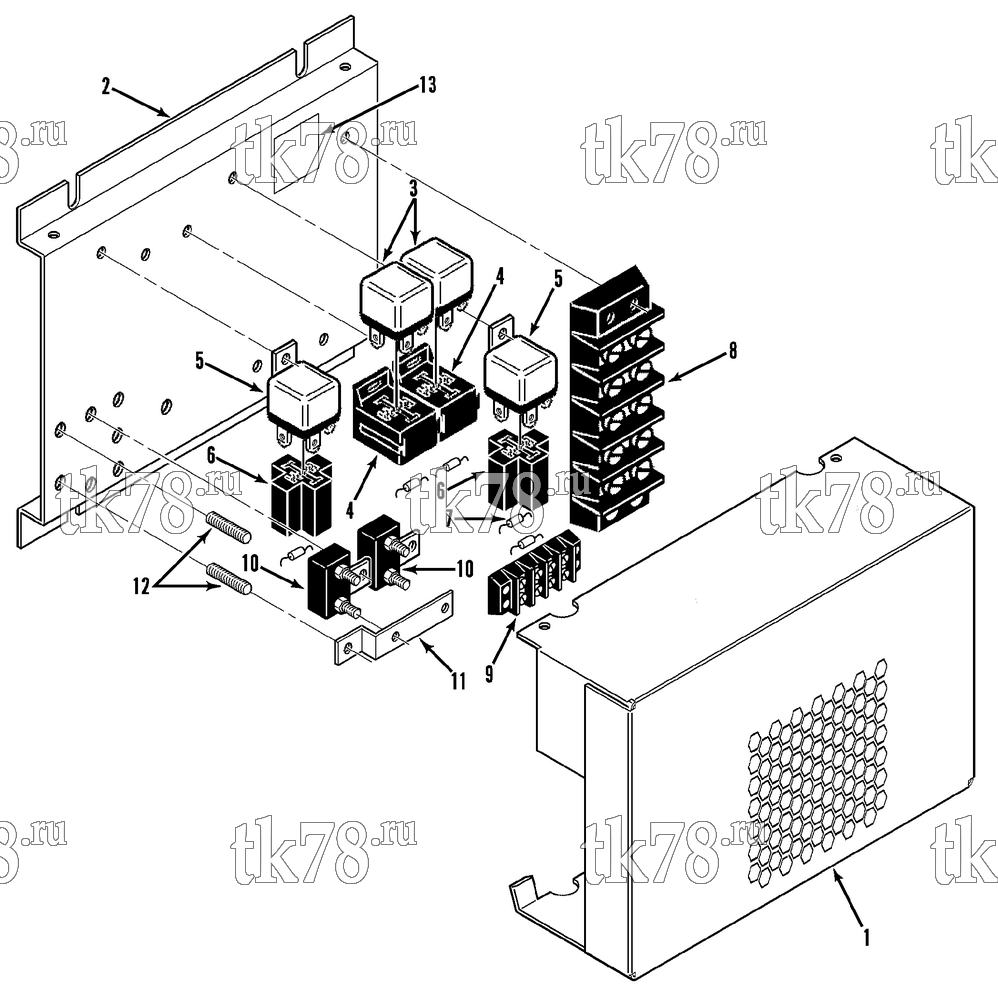

Установкa Thermo King ShuttleAIRE Series Bus схема CONTROL PANEL (S-30 II, Before 2/97) – 133C10
Обновление от: 1/27/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7518 | COVER - control panel | 1 | |
| 55-3549 | SCREW - cover | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 2 | 91-7519 | PANEL - control | 1 | |
| 3 | 41-895 | RELAY - mini (12V) | 2 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-896 | RELAY - mini (24V) | 2 | ||
| 4 | 44-5537 | SOCKET - relay | 2 | |
| 55-3015 | SCREW - socket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 5 | 41-478 | RELAY - mini (12V) | 2 | |
| 44-9392 | RELAY - mini (24V) | 2 | ||
| 55-3015 | SCREW - relay | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 6 | 41-1325 | SOCKET - relay | 2 | |
| 7 | 44-5763 | DIODE | 5 | |
| 8 | 44-9428 | BOARD - terminal (55 amp) | 1 | |
| 55-3442 | SCREW - board | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 9 | 44-2558 | BOARD - terminal (20 amp) | 1 | |
| 55-4487 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 10 | 44-6991 | BREAKER - circuit (12V) | 2 | |
| 44-9097 | BREAKER - circuit (30 amp, 24V) | 1 | ||
| 44-9096 | BREAKER - circuit (20 amp, 24V) | 1 | ||
| 11 | 41-1720 | JUMPER | 1 | |
| 55-3844 | SCREW - breaker | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-664 | NUT | 4 | ||
| 12 | 55-8707 | STUD - terminal | 2 | |
| 55-8596 | FLATWASHER | 6 | ||
| 55-8568 | LOCKWASHER | 1 | ||
| 55-8631 | WASHER - insulating | 1 | ||
| 55-8693 | WASHER - insulating | 1 | ||
| 55-317 | NUT | 4 | ||
| 13 | 91-7520 | NAMEPLATE - 12VDC | 1 | |
| 91-7543 | NAMEPLATE - 24VDC | 1 |
