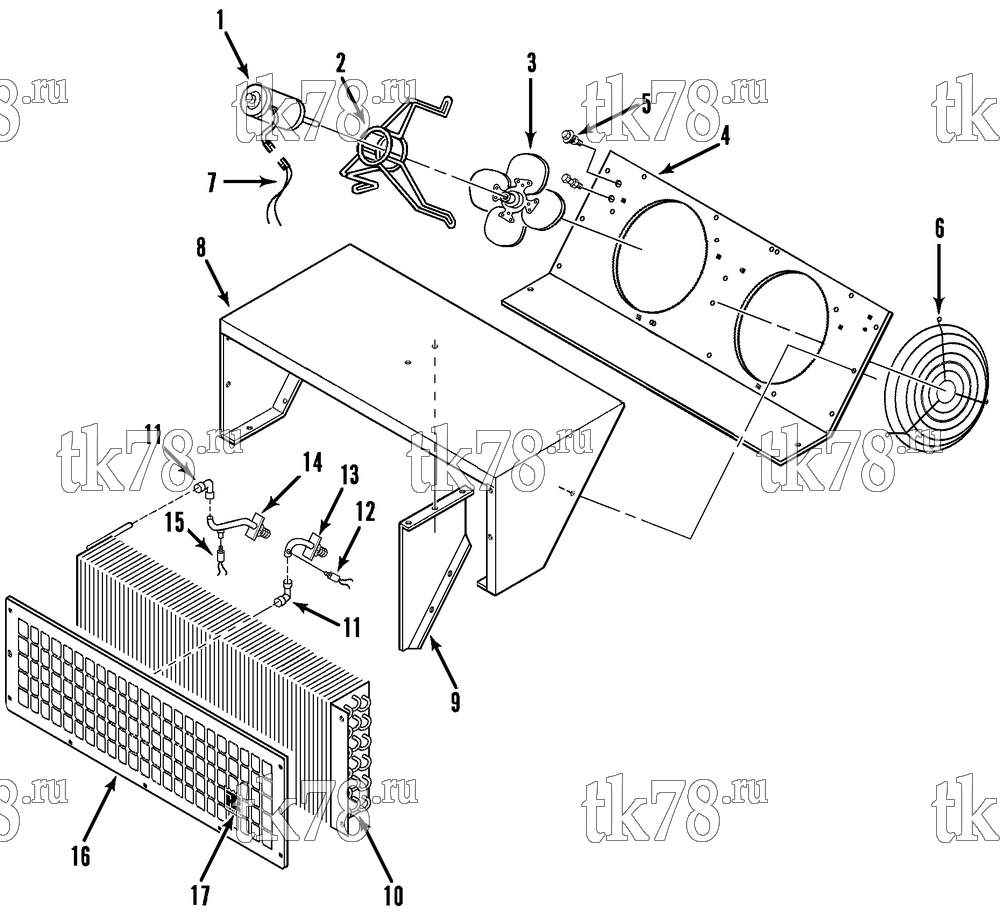

Установкa Thermo King ShuttleAIRE Series Bus схема CONDENSER GROUP (S20) – 102D1
Обновление от: 2/19/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9016 | MOTOR - condenser fan (12V) | 2 | |
| 44-9093 | MOTOR - condenser fan (24V) | 2 | ||
| 33-2146 | TAPE - cork, motor wrap | A/R | ||
| 55-3121 | SCREW - motor | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 2 | 91-2782 | MOUNT - motor | 2 | |
| 55-1587 | SCREW - mount | 6 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-4953 | NUT | 6 | ||
| 3 | 78-816 | FAN - condenser | 2 | |
| 4 | 98-3981 | PANEL - condenser fan | 1 | |
| 55-3018 | SCREW - panel | 14 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 18 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-6916 | NUT - J | 14 | ||
| 5 | 55-6913 | SCREW - fan terminal (1/4) | 2 | |
| 55-6923 | FLATWASHER (nylon) | 1 | ||
| 55-6922 | WASHER - shoulder (nylon) | 1 | ||
| 55-2873 | WASHER | 4 | ||
| 55-6914 | LOCKWASHER | 4 | ||
| 55-6921 | NUT | 4 | ||
| 55-6919 | SCREW - pressure switch terminals (#10) | 2 | ||
| 55-6917 | WASHER - shoulder (nylon) | 2 | ||
| 55-6918 | FLATWASHER (nylon) | 2 | ||
| 55-401 | FLATWASHER | 4 | ||
| 55-1852 | LOCKWASHER | 4 | ||
| 55-346 | NUT | 4 | ||
| 6 | 91-2784 | GUARD - fan | 2 | |
| 55-6940 | SCREW - guard | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 303-359 | NUT - push-in (plastic) | 6 | ||
| 7 | 44-9091 | HARNESS - condenser motor | 1 | |
| 91-2783 | CLIP - harness (push-in) | 2 | ||
| 8 | 98-3980 | FRAME - condenser (top) | 1 | |
| 9 | 91-2796 | SUPPORT - condenser fan | 1 | |
| 55-3101 | RIVET - support | 6 | ||
| 10 | 67-1012 | COIL - condenser | 1 | |
| 55-3018 | SCREW - coil | 6 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-6916 | NUT - J | 6 | ||
| 11 | 66-5733 | ELBOW | 2 | |
| 66-6221 | VALVE - core | 2 | ||
| 12 | 44-9005 | SWITCH - low pressure (25 psi, R12/R134a) | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 13 | 66-5915 | TUBE - inlet | 1 | |
| 14 | 66-5916 | TUBE - outlet | 1 | |
| 33-2141 | O-RING | 2 | ||
| 55-3670 | RIVET - flange | 4 | ||
| 15 | 44-9004 | SWITCH - high pressure (315 psi, R12/R134a) | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 44-9024 | HARNESS (8 in lg) | 1 | ||
| 44-9025 | HARNESS (22 in lg) | 2 | ||
| 16 | 98-4344 | GRILLE - condenser | 1 | |
| 17 | 91-3247 | NAMEPLATE | 1 |
