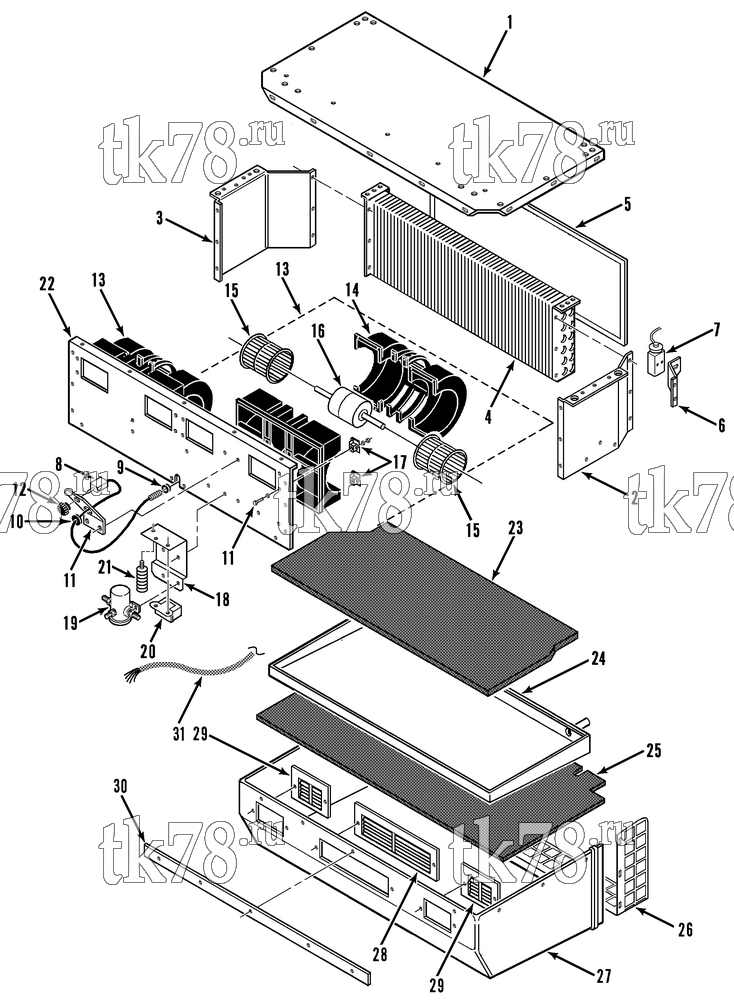

Установкa Thermo King ShuttleAIRE Series Bus схема EVAPORATOR COMPARTMENT (S-30) – 100F1
Обновление от: 4/30/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3924 | FRAME - top | 1 | |
| 2 | 91-3066 | SUPPORT - coil (roadside) | 1 | |
| 3 | 91-3067 | SUPPORT - coil (curbside) | 1 | |
| 55-3670 | RIVET - support to top frame | 12 | ||
| 4 | 67-1001 | COIL - evaporator | 1 | |
| 203-428 | TAPE - insulation (distributor tubes) | 1 | ||
| 5 | 91-6471 | FILTER - air | 1 | |
| 6 | 91-2791 | BRACKET - expansion valve | 1 | |
| 55-1510 | SCREW - bracket to coil | 2 | ||
| 305-744 | FLATWASHER | 2 | ||
| 55-5292 | NUT | 2 | ||
| 7 | 66-5923 | VALVE - expansion (R12) | 1 | |
| 66-6964 | VALVE - expansion (R22) | 1 | ||
| 66-6959 | VALVE - expansion (R134a) | 1 | ||
| 33-2141 | O-RING | 1 | ||
| 55-5644 | SCREW - valve to bracket | 1 | ||
| 55-372 | FLATWASHER | 1 | ||
| 55-4118 | NUT | 1 | ||
| 8 | 44-9008 | THERMOSTAT | 1 | |
| 55-6927 | CLIP - sensor | 1 | ||
| 9 | 33-687 | GROMMET | 1 | |
| 10 | 33-563 | GROMMET | 1 | |
| 11 | 91-4893 | BRACKET - thermostat | 1 | |
| 55-7062 | INSERT | 2 | ||
| 12 | 91-3062 | KNOB | 1 | |
| 13 | 78-817 | HOUSING - blower (12V, until 4/22/92) | 2 | |
| 78-907 | HOUSING - blower (12V, after 4/22/92) | 2 | ||
| 78-849 | HOUSING - blower (24V) | 2 | ||
| 14 | 91-3248 | BLOWER (top) | 1 | |
| 91-3249 | BLOWER (bottom) | 1 | ||
| 15 | 77-2056 | WHEEL - blower | 2 | |
| 16 | 44-9010 | MOTOR (12V, wound field, until 4/22/92) | 1 | |
| 41-156 | MOTOR (12V, perm mag, after 4/22/92) | 1 | ||
| 78-849 | MOTOR (24V, perm mag) | 1 | ||
| 17 | 91-2797 | PLUG - mounting | 4 | |
| 55-145 | SCREW - blower & thermo bracket | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-7063 | NUT | 4 | ||
| 18 | 91-4894 | BRACKET - relay/solenoid/resistor | 1 | |
| 55-538 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-372 | FLATWASHER | 2 | ||
| 55-6863 | INSERT | 2 | ||
| 19 | 44-4397 | SOLENOID (12V) | 1 | |
| 41-3987 | SOLENOID (24V) | 1 | ||
| 44-9011 | HARNESS - solenoid | 1 | ||
| 55-165 | SCREW - solenoid | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 20 | 44-9007 | RELAY (12V) | 1 | |
| 44-9094 | RELAY (24V) | 1 | ||
| 44-9010 | HARNESS - relay | 1 | ||
| 55-165 | SCREW - relay | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 21 | 41-155 | RESISTOR (12V, 0.35 ohm) | 1 | |
| 44-9095 | RESISTOR (24V, 1.5 ohm) | 1 | ||
| 22 | 91-4909 | PANEL - fan | 1 | |
| 55-3670 | RIVET | 11 | ||
| 23 | 33-2144 | RETAINER - water | 1 | |
| 24 | 98-3925 | PAN - drain | 1 | |
| 33-2149 | SEALER - drain pan | A/R | ||
| 55-6928 | SCREW - panel | 8 | ||
| 55-1683 | NUT - U | 8 | ||
| 25 | 33-2142 | INSULATION - drain pan | 1 | |
| 26 | 98-4391 | GRILLE | 1 | |
| 27 | 98-4052 | HOOD - evaporator | 1 | |
| 91-2817 | PROTECTOR - edge (brown) | 1 | ||
| 55-6928 | SCREW - hood | 13 | ||
| 55-6929 | NUT | 13 | ||
| 28 | 91-2793 | LOUVER (14 in lg) | 1 | |
| 29 | 91-2794 | LOUVER (6 in lg) | 2 | |
| 55-6928 | SCREW - louvers | 6 | ||
| 55-6929 | NUT - speed | 6 | ||
| 30 | 91-2798 | STRIP - trim | 1 | |
| 55-6928 | SCREW - strip | 15 | ||
| 55-6929 | NUT - speed | 15 | ||
| 31 | 44-9090 | HARNESS - evaporator | 1 | |
| 91-2783 | CLIP - harness | 4 |
