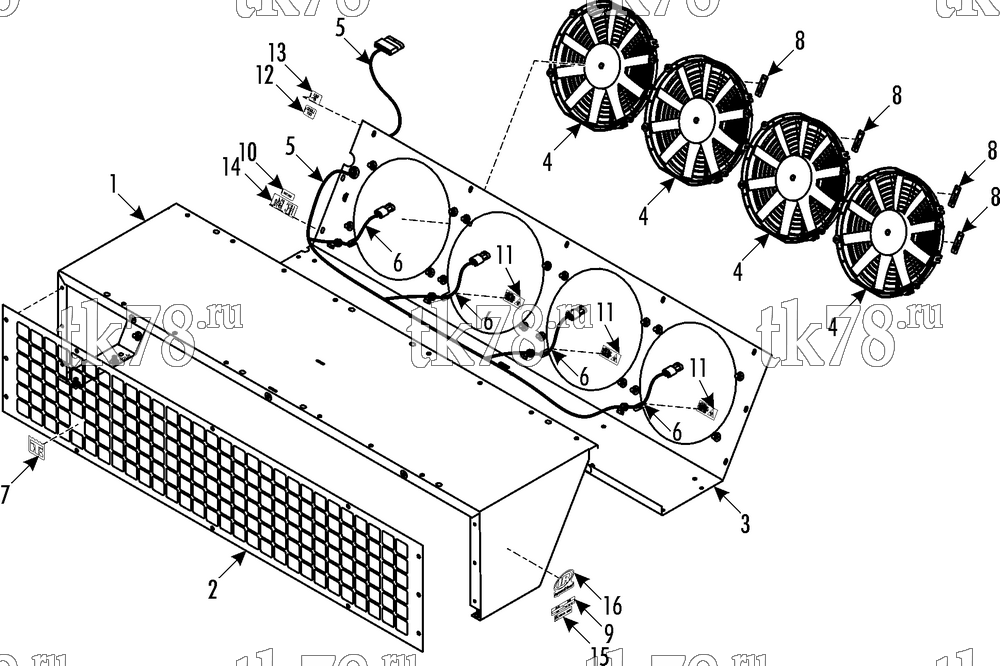

Установкa Thermo King ShuttleAIRE S-40 схема CONDENSER FRAME & FANS (S-40 U) – 180G9
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6549 | FRAME - condenser (10/02 & after) | 1 | |
| 98-5013 | FRAME - condenser (before 10/02) | 1 | ||
| 55-5084 | SCREW - condenser to shuttle | 8 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | NUT | 8 | ||
| 2 | 98-5014 | GRILLE - condenser | 1 | |
| 55-7035 | SCREW - grille (M6 x 25) | 6 | ||
| 55-6994 | SCREW - grille (M6 x 20) | 3 | ||
| 55-7170 | LOCKWASHER | 9 | ||
| 55-6995 | FLATWASHER | 9 | ||
| 3 | 98-6550 | FRAME - bottom (10/02 & after) | 1 | |
| 98-5015 | HOUSING - fan (before 10/02) | 1 | ||
| 55-6994 | SCREW - bottom frame | 16 | ||
| 55-7170 | LOCKWASHER | 16 | ||
| 55-6995 | FLATWASHER | 16 | ||
| 4 | 78-1021 | FAN - condenser (12V) | 4 | |
| 78-1022 | FAN - condenser (24V) | 1 | ||
| 55-7035 | SCREW - fan | 16 | ||
| 55-7170 | LOCKWASHER | 16 | ||
| 55-6995 | FLATWASHER | 16 | ||
| 5 | 41-8212 | HARNES - condenser (12V, for connectors see 115D14, 9/04 & after) | 1 | |
| 41-8213 | HARNES - condenser (24V, for connectors see 115D14, 9/04 & after) | 1 | ||
| 41-5222 | HARNES - condenser (12V, for connectors see 115D14, before 9/04) | 1 | ||
| 41-5223 | HARNES - condenser (24V, for connectors see 115D14, before 9/04) | 1 | ||
| 6 | 33-415 | GROMMET (5/8 id) | 4 | |
| 7 | 91-6958 | NAMEPLATE - TK Logo | 1 | |
| 8 | 99-9084 | NAMEPLATE - Arrow | 4 | |
| 9 | 99-4486 | NAMEPLATE - Warranty | 1 | |
| 10 | 91-7520 | NAMEPLATE - 12 VDC | 1 | |
| 91-7543 | NAMEPLATE - 24 VDC | 1 | ||
| 11 | 91-7511 | NAMEPLATE - Warning Fan | 3 | |
| 12 | 91-7550 | NAMEPLATE - Liquid Out | 1 | |
| 13 | 91-7510 | NAMEPLATE - Gas In | 1 | |
| 14 | 91-7508 | NAMEPLATE - HCF 134A | 1 | |
| 15 | 92-2787 | NAMEPLATE - Homologation | 1 | |
| 16 | 92-1773 | NAMEPLATE - IR Logo | 1 |
