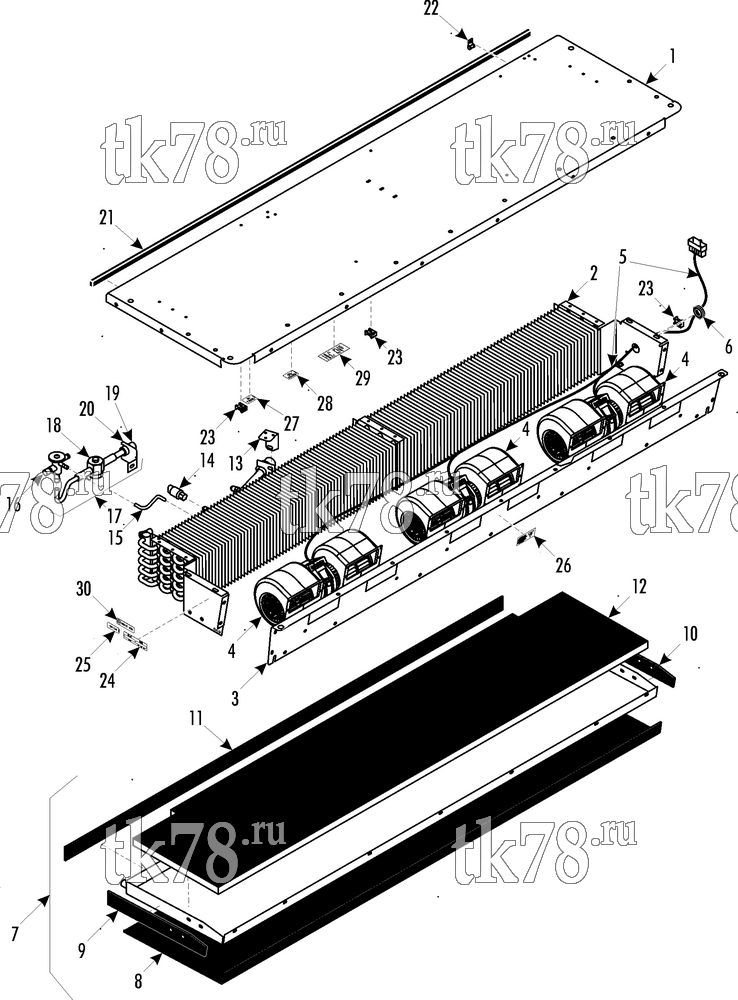

Установкa Thermo King ShuttleAIRE S-30 схема EVAPORATOR COMPONENTS (S-30 LP 1000, 10/02 & After) – 227G8
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5488 | PANEL - top | 1 | |
| 55-5130 | RIVET - panel | 9 | ||
| 55-7042 | NUT | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 2 | 67-1563 | COIL - evaporator | 1 | |
| 3 | 91-9345 | PANEL - blower housing | 1 | |
| 55-7036 | SCREW - panel (M5) | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7042 | NUT (M6) | 7 | ||
| 55-7075 | FLATWASHER | 7 | ||
| 4 | 41-2914 | BLOWER (12V) | 3 | |
| 41-2915 | BLOWER (24V) | 3 | ||
| 55-7664 | SCREW - blower | 18 | ||
| 55-7369 | LOCKWASHER | 18 | ||
| 55-7697 | FLATWASHER | 18 | ||
| 5 | 41-5100 | HARNESS - evaporator (12V) | 1 | |
| 41-5101 | HARNESS - evaporator (24V) | 1 | ||
| 44-5718 | CONNECTOR (8-pin) | 1 | ||
| 6 | 33-415 | GROMMET (0.625 id) | 1 | |
| 7 | 98-5489 | PAN - drain | 1 | |
| 8 | 92-6959 | GASKET | 1 | |
| 9 | 92-6954 | GASKET | 1 | |
| 10 | 92-6955 | GASKET | 1 | |
| 11 | 92-6960 | GASKET | 1 | |
| 12 | 91-9510 | RETAINER - water | 1 | |
| 55-7036 | SCREW - pan | 12 | ||
| 55-7404 | LOCKWASHER | 12 | ||
| 55-7089 | FLATWASHER | 12 | ||
| 13 | 91-7515 | BRACKET - line | 1 | |
| 55-5130 | RIVET - bracket | 3 | ||
| 55-7172 | SCREW - adapter | 1 | ||
| 55-6995 | FLATWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7042 | NUT | 1 | ||
| 14 | 41-4309 | SWITCH - lpco | 1 | |
| 15 | 66-9573 | TUBE - equalizer | 1 | |
| 16 | 61-1061 | VALVE - expansion | 1 | |
| 17 | 66-8346 | INDICATOR - liquid, assy | 1 | |
| 18 | 66-1188 | INDICATOR - liquid | 1 | |
| 19 | 55-8692 | ADAPTER | 1 | |
| 20 | 61-4895 | ADAPTER & BRACKET | 1 | |
| 91-7516 | BRACKET | 1 | ||
| 55-7172 | SCREW - bracket | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 55-6995 | FLATWASHER | 1 | ||
| 21 | 99-7246 | STRIP - neoprene | A/R | |
| 22 | 56-546 | CLAMP - sensor | 1 | |
| 55-7169 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7034 | NUT | 1 | ||
| 23 | 99-3281 | MOUNT - bandwrap | 6 | |
| 55-5130 | RIVET - mount | 6 | ||
| 24 | 99-4486 | NAMEPLATE - Warranty | 1 | |
| 25 | 91-7520 | NAMEPLATE - 12 VDC | 1 | |
| 91-7543 | NAMEPLATE - 24 VDC | 1 | ||
| 26 | 91-7511 | NAMEPLATE - Warning Fan | 1 | |
| 27 | 91-7703 | NAMEPLATE - Liquid In | 1 | |
| 28 | 91-8536 | NAMEPLATE - Vapor Out | 1 | |
| 29 | 91-7508 | NAMEPLATE - HCF 134A | 1 | |
| 30 | 92-2787 | NAMEPLATE - Homologation | 1 |
