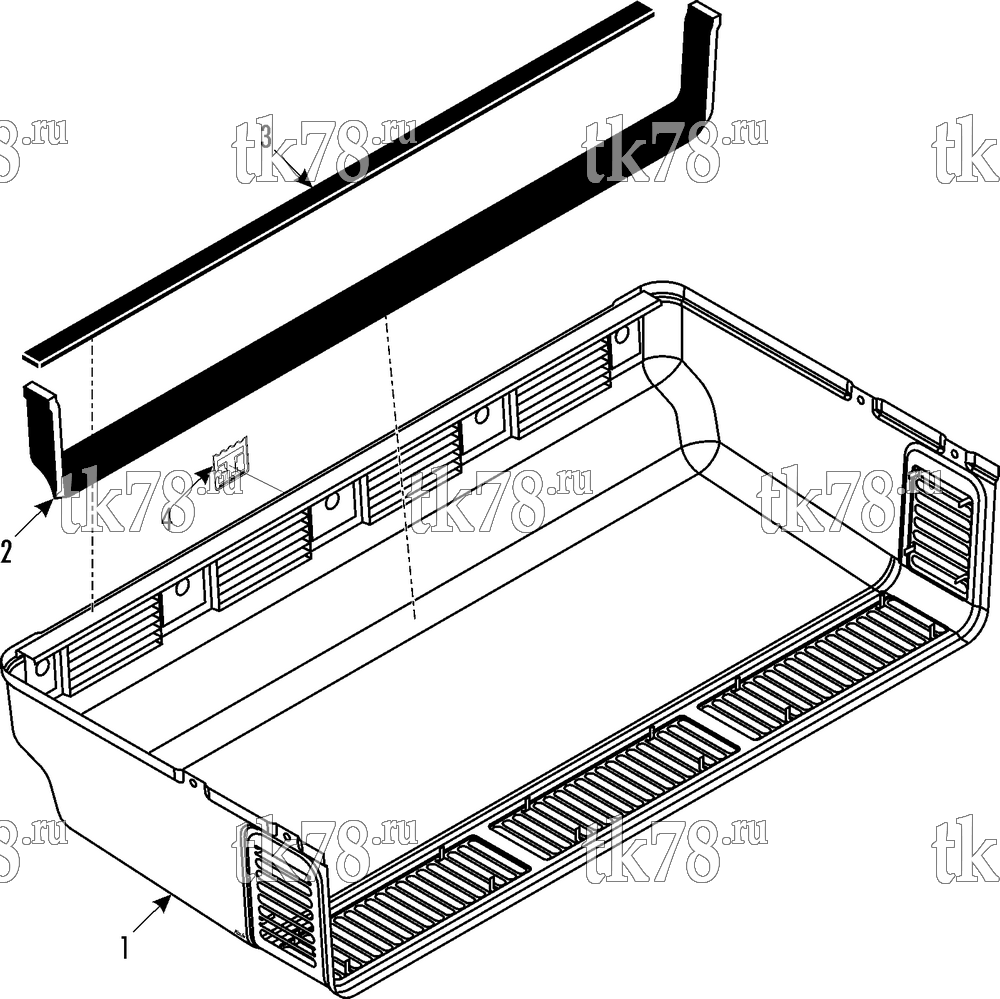

Установкa Thermo King ShuttleAIRE S-30 схема EVAPORATOR COVER (S-30, 10/02 & After) – 227G6
Обновление от: 4/29/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8041 | COVER - assy (with fixed louver) | 1 | |
| 55-8837 | SCREW - cover | 4 | ||
| 51-871 | WASHER - sealing | 4 | ||
| 2 | 33-2466 | INSULATION | 1 | |
| 3 | 99-8562 | STRIP - neoprene | A/R | |
| 4 | 91-3247 | NAMEPLATE - TK Logo | 1 |
