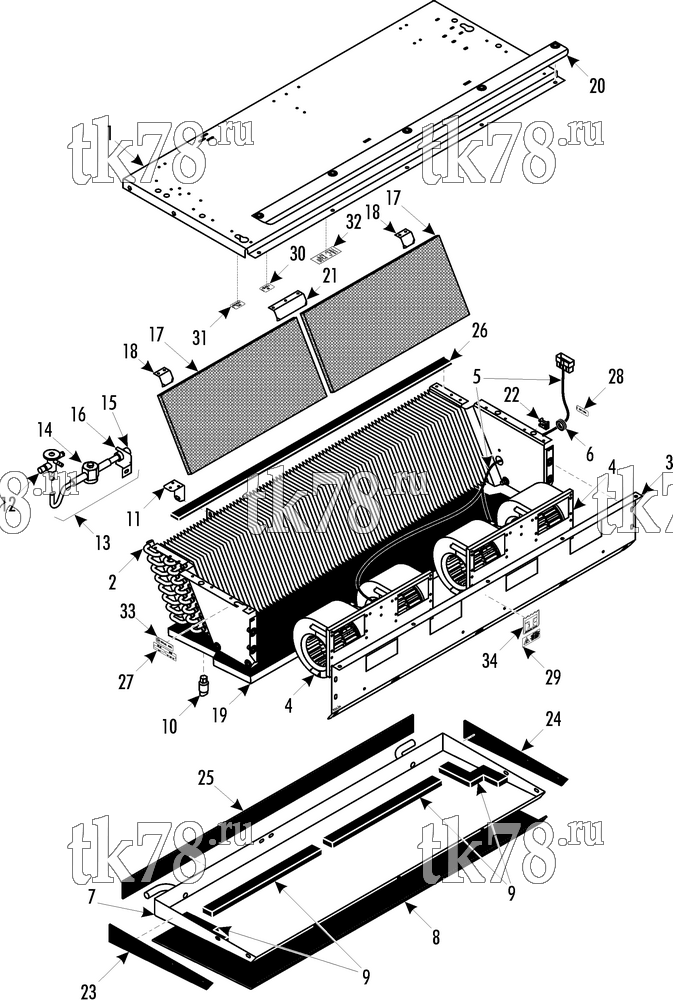

Установкa Thermo King ShuttleAIRE S-30 схема EVAPORATOR COMPONENTS (S-30) – 180A3
Обновление от: 9/26/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4994 | PANEL - top | 1 | |
| 55-5130 | RIVET - panel | 14 | ||
| 2 | 67-2375 | COIL - evaporator | 1 | |
| 3 | 98-5010 | PANEL - blower housing | 1 | |
| 55-4606 | SCREW - panel | 4 | ||
| 55-4608 | LOCKWASHER | 4 | ||
| 55-4638 | FLATWASHER | 4 | ||
| 4 | 41-1717 | BLOWER (12V) | 2 | |
| 78-1364 | BLOWER (24V) | 2 | ||
| 55-7663 | SCREW - blower | 10 | ||
| 55-7697 | FLATWASHER | 10 | ||
| 55-7665 | NUT | 10 | ||
| 5 | 41-5071 | HARNESS - evaporator | 1 | |
| 44-5718 | CONNECTOR (8-pin) | 1 | ||
| 6 | 33-415 | GROMMET (0.625 id) | 1 | |
| 7 | 98-4996 | PAN - drain | 1 | |
| 55-4606 | SCREW - pan | 7 | ||
| 55-4608 | LOCKWASHER | 7 | ||
| 55-4638 | FLATWASHER | 7 | ||
| 8 | 92-6947 | GASKET | 1 | |
| 9 | 99-8041 | STRIP - neoprene | A/R | |
| 10 | 41-4309 | SWITCH - lpco | 1 | |
| 11 | 91-7515 | BRACKET - line | 1 | |
| 55-5130 | RIVET - bracket | 3 | ||
| 55-4666 | SCREW - adapter | 1 | ||
| 55-4638 | FLATWASHER | 1 | ||
| 55-7007 | NUT | 1 | ||
| 12 | 61-1061 | VALVE - expansion | 1 | |
| 13 | 66-8346 | INDICATOR - liquid, assy | 1 | |
| 14 | 66-1188 | INDICATOR - liquid | 1 | |
| 15 | 55-8692 | ADAPTER | 1 | |
| 16 | 61-4895 | ADAPTER & BRACKET | 1 | |
| 91-7516 | BRACKET | 1 | ||
| 55-4666 | SCREW - bracket | 1 | ||
| 55-4608 | LOCKWASHER | 1 | ||
| 55-4638 | FLATWASHER | 1 | ||
| 55-7007 | NUT | 1 | ||
| 17 | 92-6948 | FILTER - air | 2 | |
| 18 | 91-7517 | SUPPORT - filter | 2 | |
| 55-5130 | RIVET - support | 4 | ||
| 19 | 33-2845 | RETAINER - water | 1 | |
| 20 | 91-7523 | BRACKET | 1 | |
| 55-5955 | SCREW - bracket | 5 | ||
| 55-4608 | LOCKWASHER | 5 | ||
| 55-4638 | FLATWASHER | 5 | ||
| 55-9443 | NUT - captive | 5 | ||
| 21 | 92-6949 | SUPPORT - filter | 1 | |
| 55-5130 | RIVET - support | 3 | ||
| 22 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 23 | 92-6950 | GASKET - left | 1 | |
| 24 | 92-6951 | GASKET - right | 1 | |
| 25 | 92-6952 | GASKET | 1 | |
| 26 | 99-5966 | STRIP - neoprene | A/R | |
| 27 | 99-4486 | NAMEPLATE - Warranty | 1 | |
| 28 | 91-7520 | NAMEPLATE - 12 VDC | 1 | |
| 91-7543 | NAMEPLATE - 24 VDC | 1 | ||
| 29 | 91-7511 | NAMEPLATE - Warning Fan | 1 | |
| 30 | 91-7703 | NAMEPLATE - Liquid In | 1 | |
| 31 | 91-8536 | NAMEPLATE - Vapor Out | 1 | |
| 32 | 91-7508 | NAMEPLATE - HCF 134A | 1 | |
| 33 | 92-2787 | NAMEPLATE - Homologation | 1 | |
| 34 | 91-3247 | NAMEPLATE - TK Logo | 1 |
